Hand Knitting Yarn Box Folding Machinery (ZK-660AN)

Product Specifications

Prod Model:	ZK-660AN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Box Size:400*300*125mm:	Min Box Size:125*85*20mm

Product Description

ZK-660AN box packing machine Available in all kinds of rigid set up box ( bottom and top boxes ) like shoe boxes, cell phone boxes, shirt boxes, garment boxes, gift boxes, jewellery boxes, chocolate boxes, iphone box,hardware boxes, high grade food boxes, electronic boxes, packaging boxes ect.

ZK-660AN Rigid box maker Features and function:
1. Suitable for all kinds of rigid boxes automatic production
2. Computer control with auto error display and malfunction display.
3. Automatic feeding cover paper and cardboard.
4. 24 hours control glue pre-heating
5. Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
6. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
7. The box-forming unit can automatically collect boxes and deliver them to the forming unit. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
8. The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is 0.5mm.
9. The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
10. It can automatically diagnose the troubles and alarm accordingly.
11. Remodel for automatic production of different kinds of boxes (optional)
12. Automatic control system for glue viscosity ( America, optional)

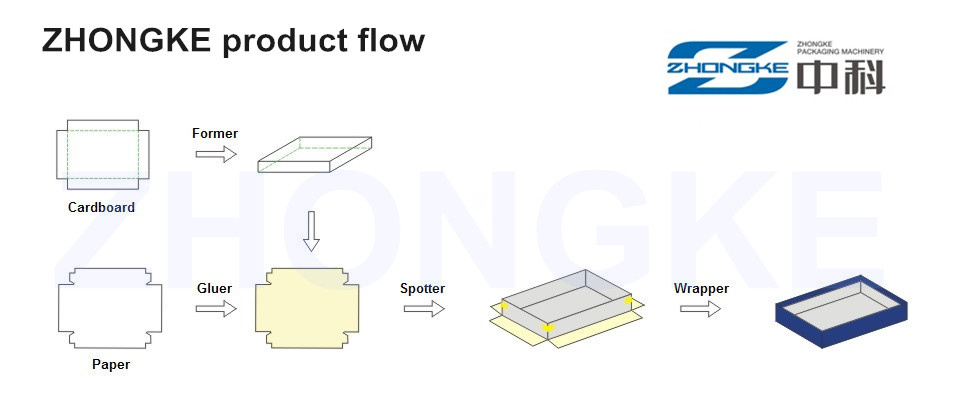

A, Gluing unit
Automatic feed paper by feeder suckers
24 hours control glue pre-heating
The vacuum suction fan under the conveyer belt can keep the glued paper from deviating
Automatic control system for glue viscosity( America, optional)

B. Corner Pasting Unit
Automatic feeding cardboard
Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.

C. Spotter
The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device and servo device to spot correctly. The spotting error is 0.5mm.
The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically spot and form the box in one process.
Computer control with auto error display and malfunction display
It can automatically diagnose the troubles and alarm accordingly.

D. Wrapping Unit
Automatically collect boxes and deliver them to the forming unit. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.

After sale service
Zhongke will send engineer to user's factory when machine arrive factory for installation and training
Packing List
Packing material: Wooden case
Container: One 40 HQ.
Total 6 wooden cases

Rigid box maker; Rigid box making machine; Automatic rigid box maker; Automatic rigid box making machine; Box Packing Machine

Paper wrap size (A: WIDTH B: LENGTH)	Amin	150mm		Paper wrap grammage	Min	100g/m 2
	Amax	580mm			Max	160g/m 2
	Bmin	180mm		Cardoard blank thickness	Min	0.8mm
	Bmax	660mm			Max	3mm
Box size L=length W=width H=height	Lmin	125mm		Speed(pcs/h)		1200-1500
	Lmax	400mm		Paper pile height		260mm
	Wmin	85mm		Cardboard pile height		1000mm
	Wmax	300mm		Electrical power		20kw
	Hmin	20mm		Glue tank capacity(Litre)		45L
	Hmax	125mm		Air supply(Litre/min)		12L/MIN
Turn in Depth	Rmin	12mm		Net weight		7800kg
	Rmax	55mm		Machine overall dimension		L6.8XW4.3XH2.9m
