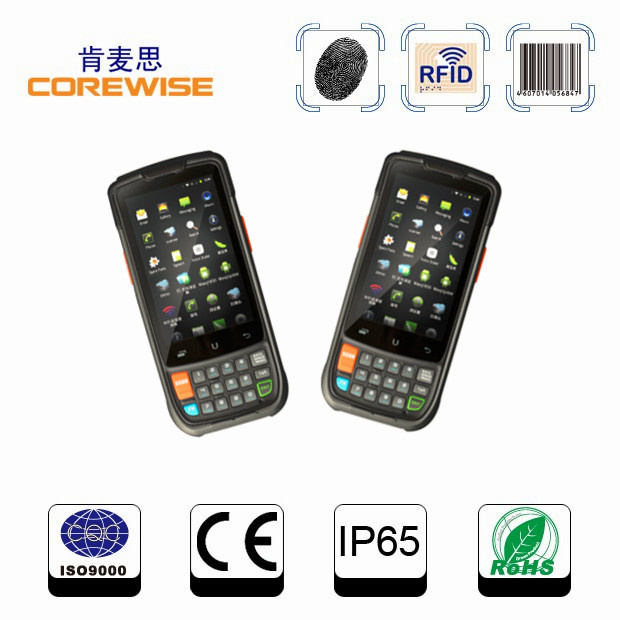

Handheld Digital Machine with Contact Card Reader/Write

Name: Handheld Digital Machine with Contact Card Reader/Write
Brand: China-Manufacturer-Directory.com
SKU: 693627162
Availability: InStock
Rating: 4.7 (37 reviews)

Supplier:	Nanjing Corewise Smart Technology Inc.
Price:	US $ 300-350/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CFON610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OS:	Android 4.1
CPU:	Quad 1.2GHz
WCDMA:	GSM:850/900/1800/1900 MHz
CDMA2000:	CDMA2000 1X, CDMA2000 EV-Do Rev 0, CDMA2000 EV-Do
GPS:	Agps Supported, 10m
RFID:	13.56MHz, ISO14443, ISO15693
Nfc:	Nfc Supported
1d Barcode Scanner:	Suopprted
2D Barcode Scanner:	Suopprted
Battery:	3.8V, 3800mAh
Design:	Bar
Front Camera Pixel:	2MP
Rear Camera Pixel:	>5MP
Technology:	Quad-band
Style:	Business Mobile Phone
Display Color:	16000k Color
Operation System:	Android
Screen Size:	3.6-4.0"
Data Interface:	Mini USB
Battery Capacity:	>1500mAh
Screen Material:	TFT
CPU Frequency:	>1GHz
3D:	Without 3D

Product Description

Handheld digital machine with contact card reader/write
Physical
Dimensions155 *70*24 mm
Weight280g
Performance
OSGoogle Android 4.1
CPUQualcomm Quad Core 1.2Ghz
Memory8GB ROM + 1GB RAM
WCDMAGSM: 850/900/1800/1900 MHz
UMTS/HSPA+: 850/900/1900/2100 MHz
HSDPA Cat. 8 / HSUPA Cat. 6: DL 7.2 Mbps, UL 5.7 Mbps
EDGE Class 12: DL 237 kbps, UL: 237 kbps
GPRS Class 12: DL 85.6 kbps, UL: 85.6 kbps
CDMA 2000CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
CDMA2000 1X: UL/DL: 153.6 kbps
CDMA2000 1X/EVDO Rev. 0: UL 153.6 kbps DL 2.4 Mbps
CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps
Screen4.0" WVGA, resolution 480x800, capacitive touch screen
Camera5.0M, auto focus
GPSAGPS supported, 10m
WIFIIEEE 802.11b/g/n
BluetoothBT IEEE802.15 Class2.1 EDR
RFID13.56Mhz, ISO14443, ISO15693
NFCNFC Supported
P-SAM1 x
1D BarcodeCode 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded
2D Barcode (CMOS)1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5, Korean3/5, Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes
2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse
Postal Codes: U. S. Postnet, U. S. Planet, U. K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Other Indices
StorageMicro SD up to 32G, 1 x SIM
Battery3.8V, 3800mAh
USBMini-USB
ChargerPOGO PIN seat charger (cradle)
EarphoneSupported, 3.5mm
CertificatesCCC, CE, RoHS
RuggednessIP65, 1.5m drop resistance
MTBFMTBF no less than 5000 hours
Environment
Temperature-10º C~+50º C
Humidity5% ~ 95%
Pressure86Kpa~110Kpa

Physical
Dimensions	155 7024 mm
Weight	280g
Performance
OS	Google Android 4.1
CPU	Qualcomm Quad Core 1.2Ghz
Memory	8GB ROM + 1GB RAM
WCDMA	GSM:850/900/1800/1900 MHz UMTS/HSPA+: 850/900/1900/2100 MHz
WCDMA	HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps EDGE Class 12 : DL 237 kbps, UL: 237 kbps GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps
CDMA 2000	CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A Supports BC0 (800MHz band), BC1 (1900MHz band)
CDMA 2000	CDMA2000 1X: UL/DL: 153.6 kbps CDMA2000 1X/EVDO Rev.0: UL 153.6 kbps DL 2.4 Mbps CDMA2000 1X/EVDO Rev A: UL 1.8 Mbps DL 3.1 Mbps
Screen	4.0" WVGA, resolution 480x800, capacitive touch screen
Camera	5.0M, auto focus
GPS	AGPS supported, 10m
WIFI	IEEE 802.11b/g/n
Bluetooth	BT IEEE802.15 Class2 .1 EDR
RFID	13.56Mhz, ISO14443, ISO15693
NFC	NFC Supported
P-SAM	1 x
1D Barcode	Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded
2D Barcode (CMOS)	1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes 2D Symbologies:PDF417\MicroPDF417\Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Other Indices
Storage	Micro SD up to 32G, 1 x SIM
Battery	3.8V, 3800mAh
USB	Mini-USB
Charger	POGO PIN seat charger (cradle)
Earphone	Supported, 3.5mm
Certificates	CCC,CE,RoHS
Ruggedness	IP65, 1.5m drop resistance
MTBF	MTBF no less than 5000 hours
Environment
Temperature	-10~+50
Humidity	5% ~ 95%
Pressure	86Kpa~110Kpa
