| Supplier: | Vulcan Industrial Limited |
|---|---|
| Price: | US $ 300/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | EXW |
|
|
| Prod Model: | VCH12-A series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OS: | Windows |

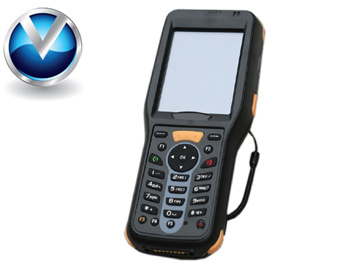

| Type: | Handheld Computer |
| Memory Capacity: | 128MB |
| CPU Type: | Freescale |
| Screen Size: | 3.2" |
| Performance | |
| Operating System | Windows Embedded CE 6.0 core |
| CPU | Freescale i.MX233 454MHz |
| Memory | RAM 128MB / ROM(TFLASH) 4G(standard) |
| Interfaces | USB2.0(client) |
| software Environment | C#.Net programming using MS Visual Studio 2008, the other language can be customized |
| Application Software | Vulcan testing demo |
| SDK | SDK files will be provided for free |
| RFID Reader(LF, HF RFID are optional) | |
| RFID Frequency | (HF)13.56MHz, (LF) 125KHz/134.2KHz |
| Protocol Standard | (HF)ISO14443A:Mifare S50/S70/Ultraligh/DESFire EV1/1K-Comptible/FUDAN 1K/TKS50, LEGIC MIN, LEGAT2048.ISO14443B:SRI512.ISO15693; (LF)ISO11784/5, support chips: EM4100, EM4102, TK4100, EM4200, EM4205, EM4305, Hitag 1/2/u/S |
| Read-Write Range | (HF)8cm; (LF)8 cm |
| Barcode scanner(1D and 2D are optional) | |
| Barcode reader | 1D barcode (Symbol SE955), scanning types: Types: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc |
|
2D imager (Hennywell 5180-HD), scanning types: 1D: all major codes; 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX) |
|
| Wireless Communication(optional) | |
| WLAN | IEEE 802.11b/g (Wi-Fi) |
| WWAN | GPRS/GSM Dual band (900MHz/1800MHz) or Qual band (850/900/1800/1900MHz) |
| WPAN | Bluetooth, class 2, transmitting range: 3~5meter |
| GPS | Ublox chip and packed by MTK from Taiwan(can't be equipped with wifi or Bluetooth at the same time) |
| Physical Characteristics | |
| Size | 179(L)mm*71(W)mm*29.5(H)mm |
| Weight | 350 g |
| Battery | rechargeable polymer battery (3.7V, 3,000mAh) |
| Screen | 3.2-inch TFT-LCD touch screen (240*320 QVGA), semi-transparent, anti-compact tempered glass |
| Expansion Slots | SIM/PSAM(optional) |
| Keyboard | Intelligent backlight for dark environment use. |
| Environmental | |
| Environmental Sealing | IP65 |
| Drop test | 1.5 meters drop test on six sides |
| Accessories | |
| Battery, touch stylus, USB cable, charger, Standard Nokia charging cable, hand strap,TF card 4G. | |
| Optional: Charging base USB port or RS232 port(optional) | |
| Warranty Term | |
| Offer 12months warranty for all Vulcan devices. Thereafter user can extend warranty period by paying $60/pc/year only! | |
