| Supplier: | Vulcan Industrial Limited |
|---|---|
| Price: | US $ 500/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | EXW |
|
|
| Prod Model: | VCH12-C series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environment: | IP65 Rating |
| OS: | Windows |

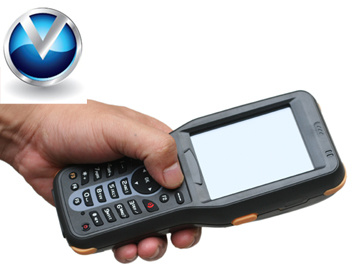

| Type: | Handheld Computer |
| Memory Capacity: | 128MB |
| CPU Type: | Freescale |
| Screen Size: | 3.2" |
| VCH12-C Series Specification | |
| Performance | |
| Operating System | Windows Embedded CE 6.0 core |
| CPU | Freescale i.MX233 454MHz |
| Memory | RAM 128MB / ROM(TFLASH) 4G(standard) |
| Interfaces | USB2.0(client) |
| Software Environment | C#.Net programming using MS Visual Studio 2008, the other language can be customized |
| Application Software | Vulcan testing demo |
| SDK | SDK files will be provided for free |
| RFID Reader(LUHF RFID) | |
| RFID Frequency | (UHF) 865-868/920-925MHz, |
| Protocol Standard | (UHF)EPC,GEN2/ISO18000-6C; |
| Read-Write Range | (UHF)1meter or 3.5meter(optional) Antenna 27dBi |
| Wireless Communication(optional) | |
| WLAN | wifi, IEEE 802.11b/g |
| WWAN | GSM/GPRS Dual band (900MHz/1800MHz) or Qual band (850/900/1800/1900MHz) |
| WPAN | Bluetooth, class 2, transmitting range: 5meters/200meters(optional) |
| GPS | Ublox chip and packed by MTK from Taiwan(can't be equipped with wifi or Bluetooth at the same time) |
| Physical Characteristics | |
| Size | 179(L)mm*71(W)mm*29.5(H)mm |
| Weight | 350 g |
| Battery | rechargeable polymer battery (3.7V, 3,000mAh) |
| Screen | 3.2-inch TFT-LCD touch screen (240*320 QVGA), semi-transparent, anti-compact tempered glass |
| Expansion Slots | SIM/PSAM(optional) |
| Keyboard | Intelligent backlight for dark environment use. |
| Environmental | |
| Environmental Sealing | IP65 |
| Drop test | 1.5 meters drop test on six sides |
| Accessories | |
| Standard: Battery, touch stylus, USB cable, charger, Standard Nokia charging cable, hand strap,TF card 4G. | |
| Optional: Charging cradle/cradle with USB port/cradle with RS232 port | |
| Warranty Term | |
| Offer 12months warranty for all Vulcan devices. | |
