Sino Age Development Technology >> Handheld Leeb Sclerometer / Hardness Tester (HARTIP2000)

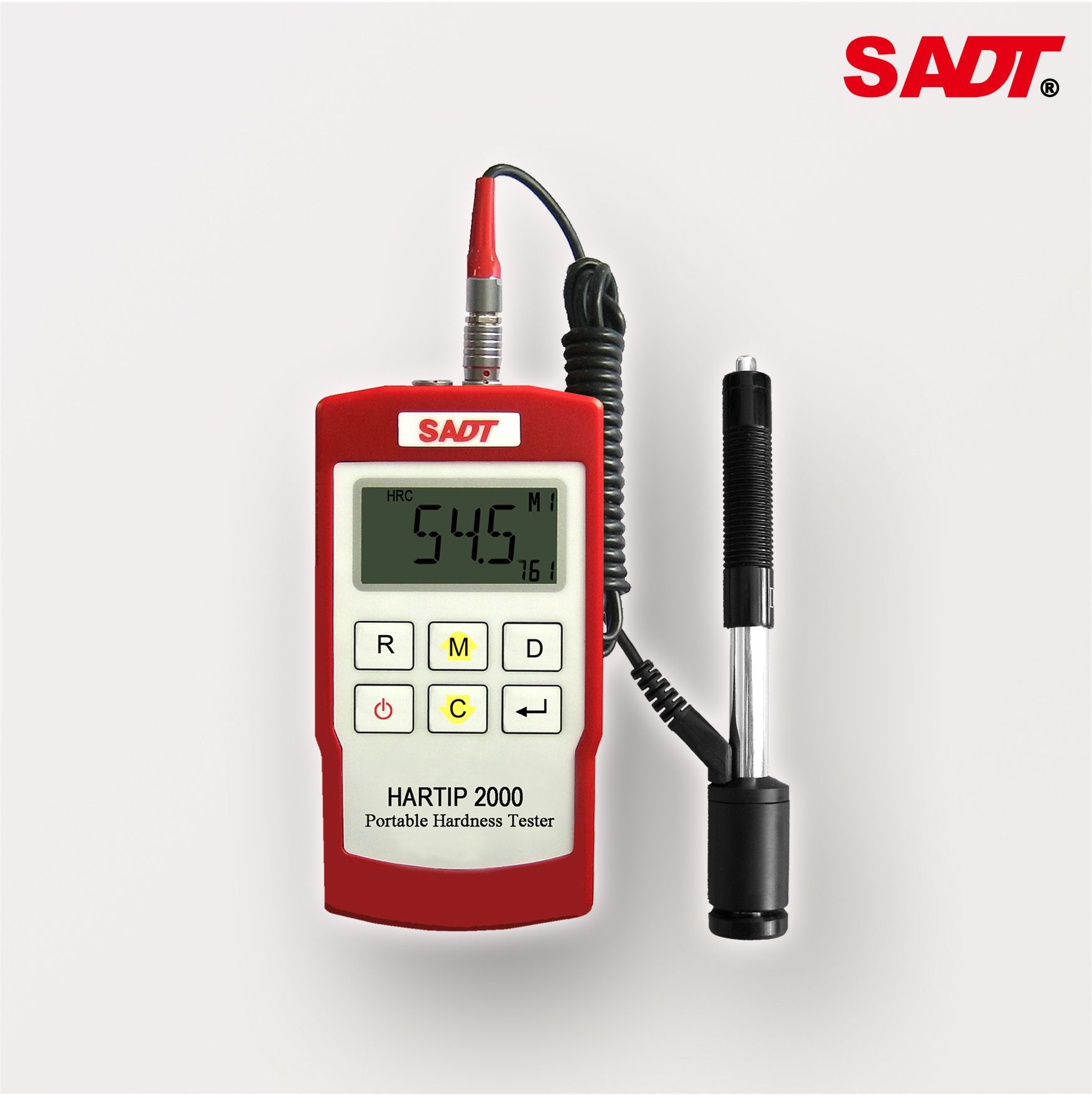

Handheld Leeb Sclerometer / Hardness Tester (HARTIP2000)

Name: Handheld Leeb Sclerometer / Hardness Tester (HARTIP2000)
Brand: China-Manufacturer-Directory.com
SKU: 689559712
Availability: InStock
Rating: 4.7 (20 reviews)

Supplier:	Sino Age Development Technology
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HARTIP2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Materials:	10 Common Metal Materials
Hardness Scale:	Hl/HRC/Hrb/Hb/Hv/Hs
Port:	Beijing
Delivery:	Within 3 Workdays Upon Receipt of Full Payment
Type:	Leeb Hardness Tester
Measuring Range:	HLD
Application:	Metal
Standard:	ASTM

Product Description

hardness tester HARTIP2000 for Universal impact direction
Handheld Leeb Sclerometer / Hardness Tester (HARTIP2000)

It can recognize impact direction automatically, it does not need to adjust different impact direction by hand when testing,avoid man made error .

UNIVERSAL ANGLE
High accurate: ± 2 HL D
Linear accuracy for any angles
No need to setup impact direction
No compensation for impact direction

DESCRIPTION:

HARTIP2000 Leeb Hardness Tester is an advanced portable digital metal leeb hardness tester with new outstanding features of universal impact angle. It is suitable for testing the hardness of all metals especially on site for large structure or assembled components, which is widely used in the industry of power, petrochemistry, air space, vehicle, machine and so on.

SPECIFICATIONS:

Principle: Leeb hardness measurement

Impact device: DU (external)

Impact direction: any direction

Display: digital with high contrast LED

Accuracy: +/-0.3% (HL=800)

Hardness scale: HL/HRC/HRB/HB/HV/HS/σb(rm)

Measuring range: HL170-960/HRC17-69/HRB13-101.7/HB20-655/

HV80-940/HS32-99.5/σb(rm)255-2180N/mm2

Measuring materials: 10 common metals

Calculation: Average/Max./Min./RMS.Value

Interface: RS232 interface to micro-printer for printing on site

Memory: 999 data can be saved and readout

Recalibration: allowed by user

Indicator: low battery

Power: 1.5Vx2 AA alkaline battery

Power on/off: auto

Operation environment: -10°C~+45°C

Dimension: 124x67x30mm

Net weight: 240g

Standard: ASTM A956, GB/T17394-1998

STANDARD PACKAGE:

HARTIP2000 main unit

Impact device DU

Standard test block D without certificate

Small support ring

Cleaning brush

Operation manual

Carrying case

Model	HARTIP 2000
Principle	Leeb hardness measurement
Accuracy	± 0.3% @ HL=800, Repeatability: ± 2HL
Display	Digital LCD with backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS/σ b
Measuring range	HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5
Impact device	DU (External)
Impact direction	Universal angle type
Materials	10 common metal materials
Memory	100data can be stored and re-readable
Statistics function	Calculated automaticly
Recalibration	Allowed by user
Interface	blue tooth microprinter( optional)
Indicator	Low battery
Power off	Auto
Power supply	1.5V AA alkaline battery x 2
Working environment	-10~+40º C
Standard	Conforming to ASTM A956
Dimension (mm)	124x67x30
Net weight (g)	240

Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, portable vibration meter, optical tachometer, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
