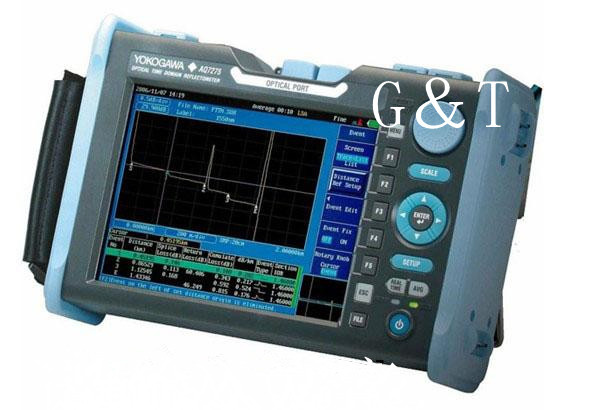

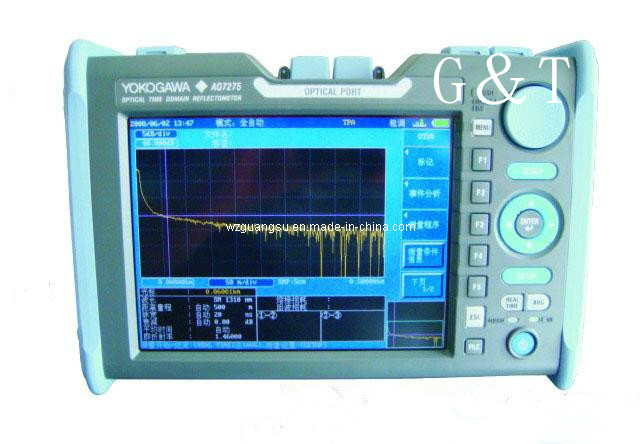

Handheld Optical Time Domain Reflectometer OTDR (Aq7275)
Product Specifications
| Prod Model: |
Aq7275 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Meter Connection: |
USB |
Product Description
1.Shorst dead zone in the world:≤0.8m (2.7ft), satisfied with the key index of FTTx measurement
2.Startup time is 10s:measurement at right when start
3.Automatic mode:a single bond run (only setup measurement wavelength,don't worry other conditions)
4. Secondary beam program mode:According to the preset good measurement procedures, button operation, save time and effort
5. Setup guide:Equivalent random instructions, convenient and no experience of personnel to operate
6. The function of optical probe and alarm(protect OTDR)
7. Built-in dumb fiber:joint very close to the measurement of characteristic performance (option)
8.Operation system of iTRON:susceptible to virus infection
9.small and light:287×197×85mm,2.8kg,convenient to carry
10. Larger, more wide perspective:8.4 inch anti-refl TFT LCD color display(640 ×480 dots)
11. Larger memory capacity:128MB,can store 1000 waveform
12.USB port:can be connected directly to a portable storage device (U disk), printers, computer
13. Powerful simulation software:analyze the curve by PC, the editor and generate and print reports
| Technical parameter |
| Model | Aq7275 serise |
| Module | 735032 | 735033 | 735037 | 735040 |
| Fiber type | SM | SM | SM | SM | MM |
| Measure wavelength | 1310/1550nm | 1310/1550nm | 1310/1550/1625nm | 1310/1550nm | 850/1300nm |
| Dynamic Range | 35/33dB(typ.) | 40/38dB(typ.) | 40/38/30B | 40/38dB | 22.5/24dB |
| Event dead zone | 0.8/0.7m(typ.) | 0.8/0.7m(typ.) | 0.8m | 0.8m | 2m |
| Attenuation dead zone | 7/8m(typ.) | 7/8m(typ.) | 7/8/12m | 7/8m | 7/10m |
| Sampling resolution | 0.05m |
| Sampling points | 50,000pts |
| Data storage | 128M RAM,more than 1000 waveform |
| Stabilized light source | -5dBm |
| Optical power meter | -50~-5dBm |
| Battery working time | working 5~6 hours continuously |
| Working temperature | 0~45 Clusius |
| Storage temperature | -20~60 Clusius |
| Humidity | 0~85 Precent Non-condensing |
| Size/weight | 287*197*85mm/2.8kg |
| Technical parameter |
| Model | Aq7275 serise |
| Module | 735032 | 735033 | 735037 | 735040 |
| Fiber type | SM | SM | SM | SM | MM |
| Measure wavelength | 1310/1550nm | 1310/1550nm | 1310/1550/1625nm | 1310/1550nm | 850/1300nm |
| Dynamic Range | 35/33dB(typ.) | 40/38dB(typ.) | 40/38/30B | 40/38dB | 22.5/24dB |
| Event dead zone | 0.8/0.7m(typ.) | 0.8/0.7m(typ.) | 0.8m | 0.8m | 2m |
| Attenuation dead zone | 7/8m(typ.) | 7/8m(typ.) | 7/8/12m | 7/8m | 7/10m |
| Sampling resolution | 0.05m |
| Sampling points | 50,000pts |
| Data storage | 128M RAM,more than 1000 waveform |
| Stabilized light source | -5dBm |
| Optical power meter | -50~-5dBm |
| Battery working time | working 5~6 hours continuously |
| Working temperature | 0~45 Clusius |
| Storage temperature | -20~60 Clusius |
| Humidity | 0~85 Precent Non-condensing |
| Size/weight | 287*197*85mm/2.8kg |
Technical parameter
|
Model
| Aq7275 serise
|
Module
| 735032
| 735033
| 735037
| 735040
|
Fiber type
| SM
| SM
| SM
| SM
| MM
|
Measure wavelength
| 1310/1550nm
| 1310/1550nm
| 1310/1550/1625nm
| 1310/1550nm
| 850/1300nm
|
Dynamic Range
| 35/33dB(typ.)
| 40/38dB(typ.)
| 40/38/30B
| 40/38dB
| 22.5/24dB
|
Event dead zone
| 0.8/0.7m(typ.)
| 0.8/0.7m(typ.)
| 0.8m
| 0.8m
| 2m
|
Attenuation dead zone
| 7/8m(typ.)
| 7/8m(typ.)
| 7/8/12m
| 7/8m
| 7/10m
|
Sampling resolution
| 0.05m
|
Sampling points
| 50,000pts
|
Data storage
| 128M RAM,more than 1000 waveform
|
Stabilized light source
| -5dBm
|
Optical power meter
| -50 ~ -5dBm
|
Battery working time
| working 5 ~ 6 hours continuously
|
Working temperature
| 0 ~ 45 Clusius
|
Storage temperature
| -20 ~ 60 Clusius
|
Humidity
| 0 ~ 85 Precent Non-condensing
|
Size/weight
| 287*197*85mm/2.8kg
|
