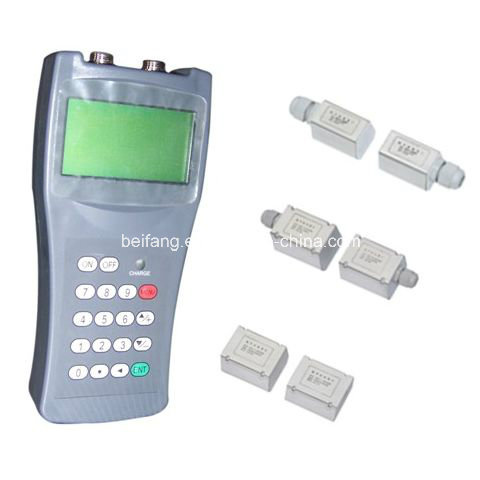

Handheld Ultrasonic Flow Meter (Clamp-on)
Product Specifications
| Prod Model: |
TDS-100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Size: |
Dn15~Dn6000 |
| Powered: |
Battery |
| Port: |
RS232 |
| Connection: |
Handheld |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter, UL |
| Accuracy: |
0.6-1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles, EL |
Product Description
Handheld ultrasonic flowmeterHas high accuracy, consistency is good,
Battery-powered, simple operation, RS232 port, connect PC,
Online measure, different size is optional,
English operator menu,
The smallest, lightest quality, truly portable ultrasonic flowmeter, The products have been exported to world.
|
Item |
The Specifications of Handheld ultrasonic flowmeter |
|
Linearity |
0.5% |
|
Accuracy |
± 1% first to meet the accuracy in domestic |
|
Repeatability |
0.2% |
|
Response Time |
0-999 seconds, user-configurable |
|
Velocity |
0.01± 32m/s |
|
Pipe Size |
15mm-6000mm |
|
Security |
Setup values Modification Lockout. Access code needs unlocking |
|
Display |
4 lines English characters on-screen display instantaneous flow, velocity, , cumulative flow, signal status working hours and so on. |
|
Transducers |
Model M1 for standard, other 3 models for optional |
|
Transducer Cord Length |
Standard 2x10 meters, optional 2x 500 meters |
|
Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100V-240VAC for the charger |
|
Housing Material |
ABS |
|
Size |
Small size 220× 92× 32mm |
|
Weight |
Light weight 538g with batteries |
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
