Product Specifications
| Prod Model: |
HARTIP1800B D/DL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
ISO |
| Application: |
Metal |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
Product Description

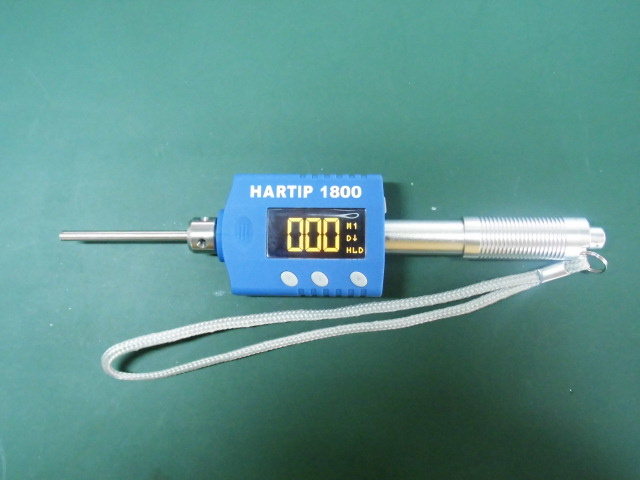

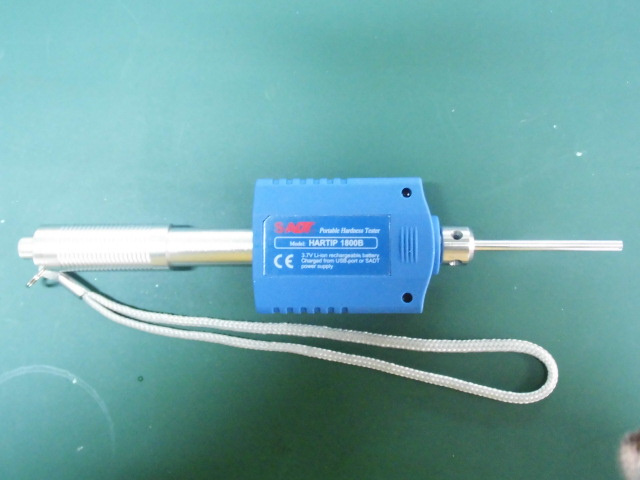

Hartip1800B Portable Hardness Tester HL / HRC / HRB Hardness Scale
Hartip1800B is a basic model for Hartip1800. Whith most of core functions of Hartip1800 and lower price, HARTIP1800B is a good choice for the customer who has the limited budget. Hartip1800B also can be equipped with our unique D/DL two-in-one impact device. And It can recognize imapct direction automatically
Details:
KEY FEATURES
Integrated and easy operation
Accuracy: +/-2HL(0.3%@HL=800)
Wide operating temperature: -40° C~+60° C
Impact direction: It can recognize impact direction automatically
Digital wiht high contrast OLED display
400 data memory in 4 blocks, data can be recalled easily.
3.7V Li-ion rechargeable battery, it can be charged by USB or power source
With strength conversion value
Re-calibration allowed by user
Power on/off automatically
With strength conversion value
Power on/off automatically.
|
Model |
HARTIP1800B D/DL |
|
Principle |
Leeb hardness measurement |
|
Accuracy |
+/-2HL(0.4%@HL=80) |
|
Display |
digital with high contrast LED |
|
Display mode |
Normal or flip |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS/σ b |
|
Measruing range |
HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 |
|
Impact device |
D/DL |
|
Materials |
10 common metal materials |
|
Memory |
400 data in 4 blocks |
|
Statistics function |
Average / Max. / Min. / value |
|
Recalibration |
Allowed by user |
|
Impact direction |
No need to set up different impact direction by hand, it can recognize the impact direction automatically |
|
Indicator |
Low battery |
|
Power on/off |
Auto |
|
Power supply |
3.7v Li-ion rechargeable battery |
|
Working environment |
-40~+80° C |
|
Standard |
ASTM A956 |
|
Dimension (mm) |
148x44x22 |
|
Net weight (g) |
110 |
