Product Specifications
| Prod Model: |
Hartip2000D/DL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Materials: |
10 Common Metal Materials |
| Hardness Scale: |
Hl/HRC/Hrb/Hb/Hv/Hs |
| Port: |
Beijing |
| Delivery: |
Within 3 Workdays Upon Receipt of Full Payment |
| Standard: |
ASTM |
| Application: |
Metal |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
Product Description

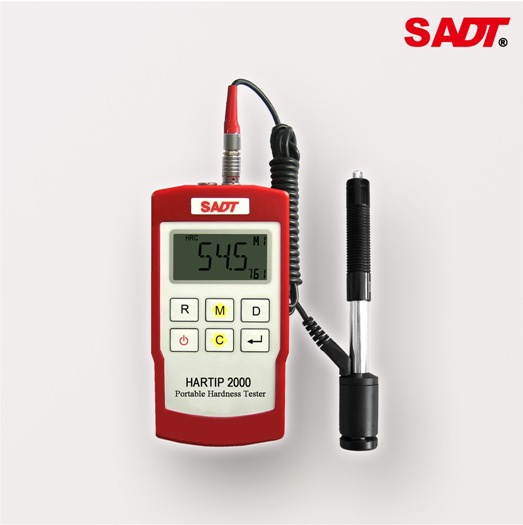

Metal digital Hardness Tester (HARTIP2000D/DL two-in-one probe)
Universal digital leeb Hardness Tester HARTIP2000D/DL
HARTIP 2000D/DL is an innovative portable Leeb hardness tester with our new patent technology which makes HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method. HARTIP 2000 is also a cost saving hardnss tester and has many other features.
It can recognize impact direction automatically, it does not need to adjust different impact direction by hand when testing, avoid man made error
High accuracy: +/-2HL( or 0.3% @HL800)
Dual values(Leeb value and one conversion value) can be displayed at the same screen
Big LCD display with backlight
Ten testing materials including forged steel
It has strength conversion value
Bluetooth microprinter ( optional)
100 data for memory
Customer re-calibration allowed
Power on/off automatically
More economic and more convenient to use.
Packed in water-proof and rigid carrying case
|
Model |
HARTIP 2000 D/DL |
|
Principle |
Leeb hardness measurement |
|
Accuracy |
± 0.3% @ HL=800, Repeatability: ± 2HL |
|
Display |
Digital LCD with backlight |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS/σ b |
|
Measuring range |
HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5 |
|
Impact device |
DU (External)/ Two-in-one DL probe |
|
Impact direction |
Universal angle type |
|
Materials |
10 common metal materials |
|
Memory |
100 data can be stored and re-readable |
|
Statistics function |
Calculated automaticly |
|
Recalibration |
Allowed by user |
|
Interface |
Bluetooth printer ( optional) |
|
Indicator |
Low battery |
|
Power off |
Auto |
|
Power supply |
1.5V AA alkaline battery x 2 |
|
Working environment |
-10~+40º C |
|
Standard |
Conforming to ASTM A956 |
|
Dimension (mm) |
124x67x30 |
|
Net weight (g) |
240 |
