Product Specifications
| Prod Model: |
HZ-2508B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Testing Range: |
4-450hbs, 4-650hbw |
| Maximum Height Of The Specimen: |
240 Mm |
| Pressure From The Head Center To Plane: |
180 Mm |
| Power: |
AC 220V, 50Hz |
| Dimension: |
630*250*1000mm |
| Weight: |
About 250 Kg |
| Type: |
Rockwell Hardness Tester |
| Application: |
Metal |
| Standard: |
BSEN |
| Measuring Range: |
Hr |
| Customized: |
LCD Display |
Product Description
Equipment discription:

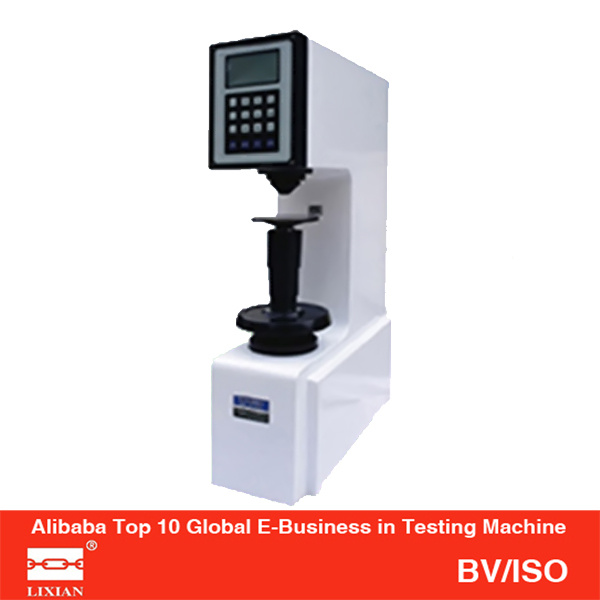

HB-3000B Brinell Hardness Tester Electronic suitable for the determination of ferrous metals, nonferrous metals in the Brinell hardness. This machine adopts closed loop load sensor, electronic control systems, with 10 of the test force. This machine has high precision, high repeatability and stability, simple operation.
Applied to: Brinell hardness test used force, indentation is large, with a large grain for hardness testing of metallic materials, such as: Iron, nonferrous metals and alloys, various annealed, quenched and tempered steel, especially for soft metals such as aluminum, lead, tin and so on.
| Model | HZ-2508B |
| Testing range | 4-450HBS,4-650HBW |
| Test force | 612.9,980.7,1225.9,1838.8,2451.8,4903.5,7355.3,9807,14710.5,29421 N(62.5,100,125,187.5,250,500,750,1000,1500,3000kg) |
| Maximum height of the specimen | 240 mm |
| Pressure from the head center to the plane | 180 mm |
| Power | AC 220V,50HZ |
| Dimension | 630*250*1000MM |
| Weight | About 250 kg |
| Accessories | A set of ohira test,V-shape test,a stell ball indenter of 2.5/5/10mm,two piece of standard hardness block,a microscope of 20times reading. |
Lixian Instrument Co., Ltd., is a high-tech joint venture company which with professional design and manufacture of various type instruments. Company founded in 1992, the headquarters is located in Shanghai now, Company has a group of first-rate professionals, dedicate to product development and marking.
Most parts of products are mainly sale to Taiwan and overseas, Company not only has the advanced production equipment and strong technical force, but also introduced the high-tech scientific research units from Beijing and Shanghai to continue to develop newer products, Won the trust of customers with the first-rate quality, reasonable price and excellent after-sales service.
