Product Specifications
| Prod Model: |
Hbe-3000A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Beijing |
| Delivery: |
Within 10 Workdays Upon Receipt of Full Payment |
| Standard: |
ASTM |
| Application: |
Metal |
| Type: |
Brinell Hardness Tester |
| Measuring Range: |
HB |
Product Description

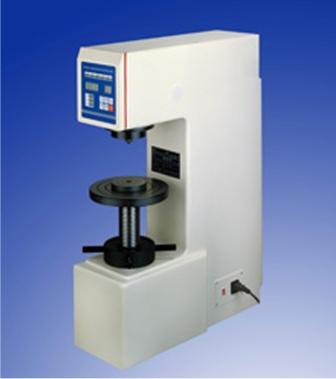

HBE-3000A Digital bench Hardness Tester
Micro Hardness Tester
Digital Micro Hardness Tester
Bench Digital Hardness Tester
Bench Hardness Tester
Hardness Tester
Micro Hardness Tester
Digital Hardness Tester
Metal Hardness Tester
Hardness Tester, Hardness meter, Durometer, Sclerometer
Product Description
It is improved on a basis of HBE-3000. It serves to measure the Brinell hardness of ferrous metals, non-ferrous metals. Clear load weight. It adopts electronic automatic load system. It has ten steps of test force. Test range is more extensiver. Precision is higher. Using our Brinell hardness automatic reading system HB SCALE, HBE3000A can read value automaticly.
Specifications:
Test force: 1837.5N (187.5kgf), 2450N (250kgf), 4900N (500kgf), 7350N (750kgf), 9800N
(1000kgf), 29400N (3000kgf)
Hardness measuring area: 8-450HBS(Steel ball), 8-650HBW(Hardmetals steel ball)
Accuracy:
< 225 HBS(HBW) max. +/-3.0% >225HBS(HBW) max. +/-3.0
Repeatability 0.06H Repeatability 0.03H
(H=Average Value of 5 points) (H= Average Value of 5 points)
Magnification of microscope: 20x
Max. Height of speciments: 240mm
Max. Depth of speciments: 260mm
Dimensions (DxWxH): 240x550x775mm
Power supply: AC 220V 50/60Hz
Operating temperature: Test preferably within 23 degree +/-5 degree
Net weight: 175kg
SADT HB SCALER is an optical measuring system which can automatically measure the size of indentation from Brinell hardness tester and gives the Brienll hardness readings. All values and indentation images can be saved in PC. With the software, all values can be processed and printout as a report.
|
Standard package |
Optional accessories |
|
Steel ball indenter2.5/5.0/10mm |
Fuse |
Hard alloy ball 2.5/5.0/10mm |
|
Steel balls 25.5/5.0/10mm |
Hardness test blocks |
HBS10/3000/30
20+/-25 |
NAMAS Brinell test plates |
|
Reading microscope 20x |
HBS10/10/1000/30
100+/-25 |
Brinell optical scanning System |
|
V-anvil |
Power cable |
|
|
Flat anvil large |
Manual |
|
|
Flat anvil small |
Certificate |
