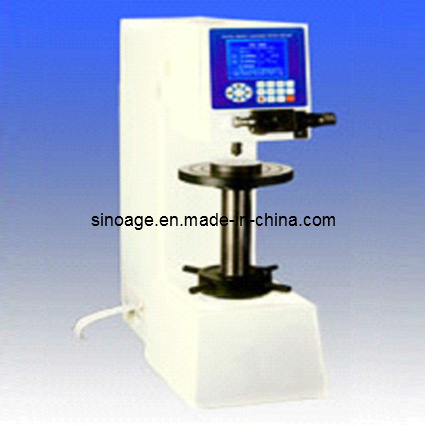

Hbs-3000 Digital Brinell Hardness Tester
Product Specifications
| Prod Model: |
HBS-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Beijing |
| Delivery: |
Within 10 Workdays Upon Receipt of Full Payment |
| Standard: |
ASTM |
| Application: |
Metal |
| Type: |
Brinell Hardness Tester |
| Measuring Range: |
HB |
Product Description
HBS-3000 Digital bench Hardness Tester
Micro Hardness Tester
Digital Micro Hardness Tester
Bench Digital Hardness Tester
Bench Hardness Tester
Hardness Tester
Micro Hardness Tester
Digital Hardness Tester
Metal Hardness Tester
Hardness Tester, Hardness meter, Durometer, Sclerometer
Product Description
HBS-3000 digital Brinell hardness tester is a new generation Brinell hardness tester that is domestically advanced. The hardness tester can be applied to determine the Brinell hardness for ferrous metal and non-ferrous metal. The hardness tester adopts electronic auto loading, computer software programming, high power optical measurement, photosensor and other systems. Each perational process and hardness test result can be displayed on large LCD. The hardness test results can also be printed by printer. This hardness tester is also adaptive in manufacturing enterprises, colleges and scientific institutions.
|
Model |
HBS -3000 |
|
|
Type |
Digital Brinell |
|
|
Test range |
8~650 HBW (hardmetals steel ball) |
|
|
Brinell hardness test (N) |
612.5, 980, 1225, 1837.5, 2450, 4900, 7350, 9800, 14700, 29400 |
|
|
Load control |
Automatic |
|
|
Magnification of microscope›x |
20x for reading microscope |
|
|
Max. height of specimens (mm) |
220 |
|
|
Max. depth of specimens (mm) |
135 |
|
|
Power |
AC220V, 50/60Hz |
|
|
Dimension (DxWxH)›(mm) |
550 x 236 x 753 |
|
|
Net›weight (kg) |
130 |
|
|
Packing List |
|
|
Indenter |
Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1 |
|
|
|
|
Testing table |
Big / small /V, 1 for each |
|
|
|
|
Hardness block |
HBW 3000/10 150~250 x 1, HBW 1000/10 75~125 x 1, HBW 187.5/2.5 150~250 x 1 |
|
|
|
|
Operation manual |
1 |
|
|
Reading microscope |
20x x 1 |
|
|
Micrometer eyepiece |
1 |
