| Supplier: | Oriemac Machinery & Equipment (Shanghai) Co., Ltd. |
|---|---|
| Price: | US $ 60000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF |
|
|

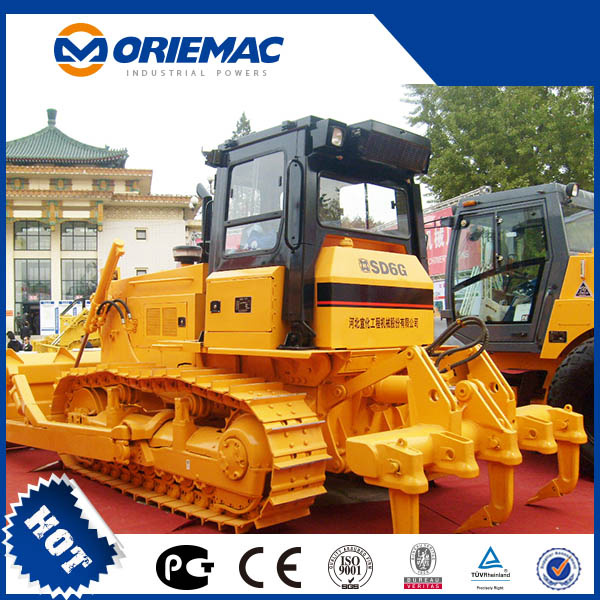

| Prod Model: | SD6G |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Weight: | 16.2t |
| Engine Model: | Turbocharged C6121 Diesel Engine |
| Rated Power: | 160HP |
| Standard Blade: | Straight Tilt Blade |
| Ripper: | Single/Three Shank Ripper |
| Gradeability: | 30 |
| Dimension: | 5037*3297*3077mm |
| Main specifications | |||||||||
| Operating weight | 16.2t | ||||||||
| Ground pressure (at operating weight) | 54kpa | ||||||||
| Track contact length | 2990mm | ||||||||
| Overall dimensions(L×W×H) | 5037×3297×3077mm (without ripper) | ||||||||
| Grade ability | Latitude 30 ° Transverse 25° | ||||||||
| Ground clearance | 445*mm | ||||||||
| Diesel Engine | |||||||||
| Model | Turbocharged C6121 diesel engine | ||||||||
| Type | Water-Cooled, single-row, vertical, 4-stroke-cycle | ||||||||
| Rated speed | 1900rpm | ||||||||
| Flywheel power | 131kw/160HP | ||||||||
| Start mode | 24V starter motor | ||||||||
| Number of cylinders-bore*stroke | 6-121*152mm | ||||||||
| Displacement | 10.5** | ||||||||
| Fuel system | Direct injection with individual adjust system free injection pumps and valve | ||||||||
| Transmission | |||||||||
|
Planetary power shift with high-torque-capacity oil clutched, special valve permits fast speed and direction changes. Three speeds forward, three reverse. Single- stage torque converter with output torque divider combined smoothness with economy. Connected to transmission by double universal joint for removal. Oil-to-air and oil-to-water heat exchangers cool the torque converter oil. |
|||||||||
| Gear | Forward Speed( Km/h) | Reverse Speed(Km/h) | |||||||
| 1 | 0-4.0 | 0-4.8 | |||||||
| 2 | 0-6.9 | 0-8.4 | |||||||
| 3 | 0-10.8 | 0-12.9 | |||||||
| Steering & Brake | |||||||||
| Reinforced, box-section construction. Out-mounted carrier rollers. Lifetime lubricated rollers and idlers. Adjustable, 2 positions idler. | |||||||||
| Number of rollers (each side) | 7 | ||||||||
| Oscillation at front idler | 1 | ||||||||
| Final Drives | |||||||||
| Crown-shaven, double-reduction final drives. Floating ring seals.Sprocket with bolt-on. Replaceable rim segments. | |||||||||
| Track | |||||||||
| Number of shoes(each side) | 39 | ||||||||
| With of standard shoe | 560mm | ||||||||
| Track gauge | 1880mm | ||||||||
| Hydraulic Controls | |||||||||
| Four optional systems are available, complete system consists of pump, tank, filters , valves, linkage and control levers anticavitation valve is included with bulldozer controls. System available are as following: | |||||||||
| One valve (internal) for bulldozer position: raise, hold, lower, float. | |||||||||
| Two valves (both internal) for bulldozer and tilt cylinder tilt cylinder position: tilt lift, tilt right, hold | |||||||||
| Two valves (one internal, one external) for bulldozer and ripper, ripper position: raise, lower, hold. | |||||||||
| Three valve (two internal, one external) for bulldozer, tilt cylinder and ripper. | |||||||||
| Service refill capacities | |||||||||
| Fuel tank | 295 liters | ||||||||
| Cooling system | 38 liters | ||||||||
| Diesel engine crankcase | 27.4 liters | ||||||||
| Transmission, bevel gear and steering clutch compartments | 98 liters | ||||||||
| Final drives (each) | 18.9 liters | ||||||||
| Specifications For Blades | |||||||||
| Blade type | Width | Height | Digging Depth. | Max Ground clearance | Max. Tilt | ||||
| Angled | 3890mm | 910mm | 444mm | 910mm | 330mm | ||||
| Straight | 3297mm | 1130mm | 472mm | 910mm | 810mm | ||||
