Product Specifications
| Prod Model: |
HCC950 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
2-Line/16 Characters Alphanumeric or Graphical LCD |
| Keypad: |
15 Keys, Ergonomically Designed |
| Communication Interface: |
RS232, Standard Keyboard, Ttl Connection, 300~19 |
| Power Supply: |
DC 6-14V, 30mA Maximum |
| Connector: |
Db9 or Customize |
| Security: |
Software Controlled Des & Dukpt Key Management |
Product Description

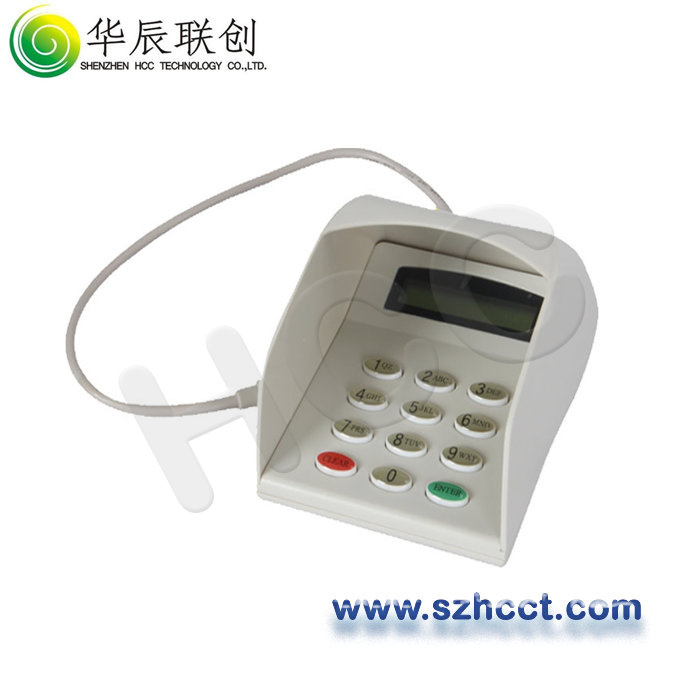

HCC 950 security pin pad delivers fully reliable and highly secure debit transaction,
Connects easily with various terminals, also provides additional functions such as voice-hint module\LCD module and DES encryption module, serve as professional PIN input device for POS, banks, retail and securities markets.
Features:
Equipped with highly secure PIN shield
Support DUKPT or Master/Session key management
Comply with international security standards and payment scheme specifications
Compatible with kindred products such as IBM4778
Applicable to many operating systems: UNIX, WINDOWS, NT and OS/2, etc.
Easy-to-read LCD display
Small table-top footprint to save counter space
High-quality conductive rubber button
Support different security key entry software
Provide audio and visual key entry response
Simple user-friendly operation
Vandal resistant: Self-destroyed against violence
Can be further user-customized
Specifications:
Display 2-line/16 characters alphanumeric or graphical LCD display
Keypad 15 keys, ergonomically designed,
Communication interface RS232, standard keyboard, TTL connection, 300-19, 200 BPS at option, 1200BPS default, asynchronous
Power supply DC6-14V, 30mA maximum
Connector dB9 or customize
Security Software controlled DES & DUKPT key management
Reliability > 5 x 106 times input (per each key)
Working temperature 0-40
Humidity 15%-85% RH non-condensing
Dimensions (LxWxH) 152mmx102x93mm
Weight 350g (include wiring)
Housing Plastic PC, Ivory color
Model Description 950x1-x2-x3-x4
Type X1 Interface X2 DES/3DES Module
X3 LCD Module X4 Sound Module
950
Pin Pad, with Conductive Rubber key R RS232 Series port 0 No 0 No 0
No
B PS/2 1 Yes 1 Yes 1
Yes
7 8 IBM 4778 Compatible
For example
HCC950 R 111-Conductive Rubber key Pin pad, with RS232 series interface, DES/3DES encryption module, LCD module, Sound module. HCC950-78-IBM 4778 Compatible
| Display | 2-line/16 characters alphanumeric or graphical LCD display |
| Keypad | 15 keys, ergonomically designed, |
| Communication interface | RS232, standard keyboard, TTL connection, 300~19,200 bps at option, 1200BPS default, asynchronous |
| Power supply | DC 6-14V, 30mA maximum |
| Connector | DB9 or customize |
| Security | Software controlled DES & DUKPT key management |
| Reliability | > 5 x 10 6 times input (per each key) |
| Working temperature | 0~40c |
| Humidity | 15%~85% RH non-condensing |
| Dimensions (L*W*H) | 152mm*102*93mm |
| Weight | 350g (include wiring) |
| Housing | Plastic PC, Ivory color |
