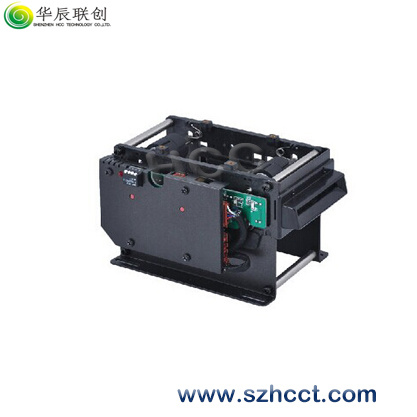

Hct-F2-1000 Card Collector Especially for Parking System and Sight Spots
Product Specifications
| Prod Model: |
HCT-F2-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| C/D Dimension: |
126.7L X 93.8W X 82.3h Mm |
| Net Weight: |
Approx.600g (Excluding Accessories and Package) |
| Service Life: |
≥ 1,000,000 Passes |
| Power Supply: |
DC24V ± 5%,< 1.5A |
| Type: |
Data Collector |
Product Description
General
HCT-F2 series card collecting machine reserves installation space for antenna board of RF card reader, which is capable of extending RF card reading function. Fine wearable and anti-corrosive rubber material and metal support are adopted, which can effectively prevent RF module from being interfered by metals. The product is extensively used in parking lot systems and sight spots, etc.
Feature
Ø Unique dispensing wheel design: Effectively prevents from dust accumulation and it's
Ø Capable of self-cleaning.
Ø Extension-hole positions: Are reserved for installation of RF module and scanning module.
Ø Wearable and anti-corrosive rubber material and metal support: Are adopted, which can effectively prevent RF module from being interfered by metals.
Ø Multiple levels of sensor circuit protection: Prevents optical interference.
Ø Supports online upgrade program.
| ELECTRICAL | Power Supply | DC24V ± 5%,< 1.5A |
| Quiescent Current | 100mA |
| Communication Method | RS232/TTL (optional) |
| STRUCTURE | Service Life | ≥ 1,000,000 passes |
| Net Weight | Approx.600g (excluding accessories and package) |
| C/D Dimension | 126.7L x 93.8W x 82.3H mm |
| ENVIRONMENTAL | Humidity | -10°C to 70°C, 0 to 90% RH without condensation |
| Storage Temperature/ Humidity | -25°C to 80°C, 0 to 90% RH without condensation |
| PERFORMANCE | Cards Supported | 86L x 55W mm(0.2~1.2mm thickness) |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
