Product Specifications
| Prod Model: |
SLDSW |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Function: |
Signal Transmission Equipment |
| Condition: |
New |
| Type: |
Signal Transmission |
Product Description

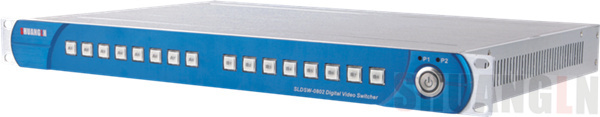

SLDSW series Digital Video Routing Switcher support to switch into multichannel multi-format SDI, ASI, embedded audio signals. The combination of switchers can make complex multi-layer signals routing system, which can be controlled by PC or remote panel. It is specially designed for TV stations at production, editing, transmission, broadcasting, monitoring flows .It is widely used in other occasions like visible conference projects, multi-screen displays, teaching programs, command control centers, traffic systems, etc.
SLDSW-0802HD adopts 3Gb/s high speed switching chip, clear image without error. Inputs use the adaptive equalization and time recovery chips to improve adaptability of signals. Outputs capability was enhanced by driven based design. The embedded intelligent control system greatly increased the switching speed that allows no waiting between instructions. External synchronous signal interface avoid switching jitter. EMI structure design of the frame avoids electromagnetic radiation and waves effectively, makes switcher more stable.
Main Features:
Support embedded audio
Bypass and memory recovery on power failure
External synchronous signal interface
RS232 interface for remote control and customized connections.
For matrix switcher:
Adopt LSI, modular design, plate structure, heat-backup and redundant power.
Memory recovery on power failure.
Support audio and video signals switch separately or simultaneously.
Support PC program controlling.
RS-232, RS-485 interfaces, connects with multiple panels for centralized control.
TCP/IP interfaces optional.
Models:
SLDSW-0802HD 8*HD/SD-SDI inputs, 2*HD/SD-SDI outputs, 1*RJ45
SLDSW-0802 8* SD-SDI inputs, 2* SD-SDI outputs, clock recovery
SLRCP-0802 Remote control panel
SLDSW-1602 16 SDI inputs, 2 SDI matrix outputs
SLRCP-1602 Remote control panel
SLDSW-3232 32* SDI inputs, 32* SDI outputs, with equalization, clock recovery
SLRCP-3232 Remote control panel
Also analog models for ordering:
Analog Video Audio Routing Switcher
LZ0802 8*IN, 2 groups 2*OUT
LZ0802T 8*IN, 2 groups 2*OUT time correction in CH2
Analog Video Audio Matrix Switcher
LZ1616 16*IN, 16 OUT
LZ3216 32*IN, 16 OUT
LZ3232 32*IN, 32OUT
Remark: Products imges will be different for models difference, pls contact sales manager for more information.
