Product Specifications
Prod Model: |
MSP 204 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Converter |
Product Description

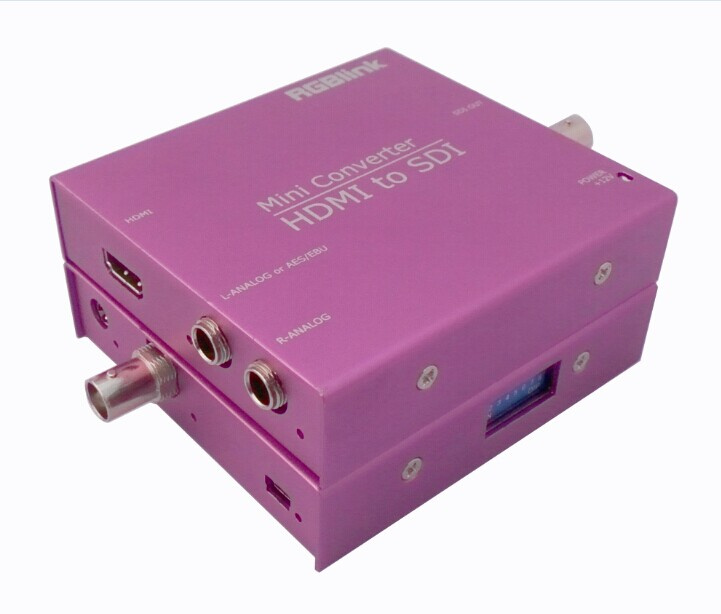

MSP204 HDMI to SDI Mini Converter Description
One RGBlink AVMSP converter is internally made up by three parts: Receiver, processor and driver, which connects the output port of the receiver to the input port of the processor, and connects the output port of the processor to input port of the driver. The combinations of the three parts form a series of RGBlink AVMSP converters.
Specifications
HDMI to HD/SD/3G SDI Converter Black magic Design
MSP 204 HDMI to HD/SD/3G SDI Converter
Specification
Input:
2 x SDI (SD/HD Compatible); 2x BNC
ITU-R BT. 656, ITU-R BT. 601, SMPTE 259M, SMPTE 292, SMPTE 297
Input Formats:
480i, 576i, 480p, 576p
720p 23.94/24/25/29.94/30/50/59.94/60
1080i 50/59.94/60
1080p 23.94/24/25/29.94/30/
Outputs
1) 1 x SDI loop through;
2) 1 x HDMI with embedded audio, 24-bits, 2 or 8 channels
3) 1 x Analog audio;
HDMI
Standard Type A connector
HDMI with embedded audio, 24-bit, 2 or 8 channels
HDMI Output resolution: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50, 720p59.94/60
HDCP
MSP 203 do not support HDCP encryption.
Funtion:
1) Standard PPM;
2) UMD (TSL support);
3) Tally;
4) Output resolution: Same to input resolution.
Control Interface: RS 422
Size 3.8''x 4.7'' x 0.8'' (98mm x 120mm x 20mm);
Power supply +12V 3.5 inch power module;
Temperature 0° C~40° C;
Humidity 10%~85%;
