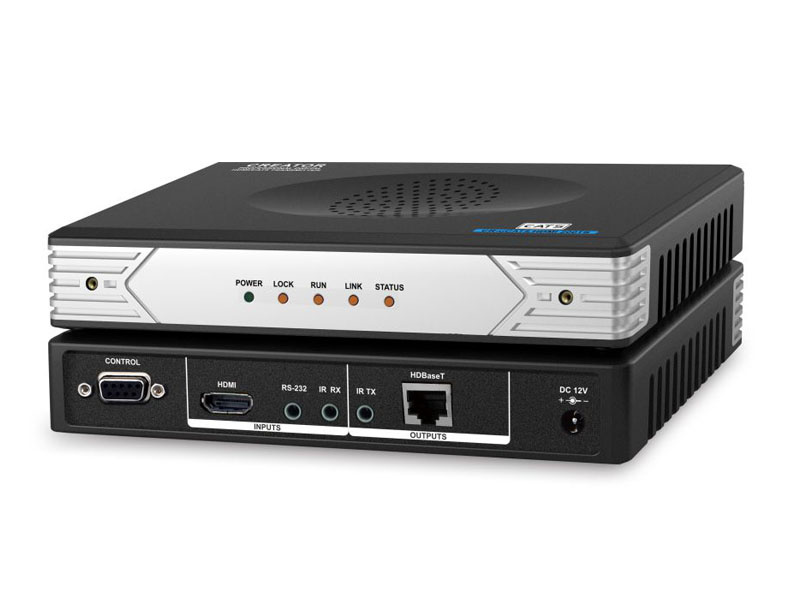

HDMI Transmitter

Name: HDMI Transmitter
Brand: China-Manufacturer-Directory.com
SKU: 692249512
Availability: InStock
Rating: 4.9 (101 reviews)

Supplier:	Creator Corporation
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	CR-uCAT5 HDMI 200TS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Interface Bandwidth:	6.75gbps

Product Description

HDMI digital video twisted pair transmitter transmits 1080P HD video to 100m through a single CAT5e/6 shielded twisted pair. It can transmit bidirectional RS-232, two-way infrared signals simultaneously. HDMI digital video twisted pair transmitter can perfectly transmit HDMI 1.3a signal source, providing low cost solution for remote video transmission and two-way control to signal source device and display device.

More products available:
CR-uCAT5 HDMI 200RS HDMI receiver

Features:
1) Support HDMIl. 3a, compatible with HDCP DVI1.0.
2) HDMI comes with a digital audio input.
3) Supports two-way infrared, RS-232 transmission.
4) The transmitter supports twisted pair transmission and HDMI monitor output (one of two).
5) Support for video, audio, IR, RS-232 simultaneous transmission, support CAT5e/6 shielding cable. The maximum transmission distance is up to 100M.

HDMI video input
Supported protocol	HDMI1.3a, HDCP1.3,EDID1.4
Bandwidth	Pixel Bandwidth165MHz , full digital
Interface bandwidth	6.75Gbps
The maximum supported resolution	Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz HDTV: 1920x1080P@60Hz
Maximum output distance of video cable	Less than 7m,when the resolution is 1920x1080P@60(recommended to use certified HDMI cable,such as Molex TM cable)
Signal type	HDMI 1.3a / T.M.D.S. full digital signal
Interface	HDMI-A Interface
Signal strength	T.M.D.S. +/- 0.4Vpp
Minimum / maximum level	T.M.D.S. 2.9V/3.3V
Impedance	Differential100Ω
Audio input	HDMI embedded digital audio
Control interface
Serial port control	RS232(3.5MM earphone socket)
Baud rate	110-115200bps
Infrared control	IR (3.5MM earphone socket)
IR frequency	38K
HDMI monitoring output interface
Supported protocol	HDMI1.3a, HDCP1.3,EDID1.4
Bandwidth	Pixel Bandwidth165MHz , full digital
Interface bandwidth	6.75Gbps
The maximum supported resolution	Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz HDTV: 1920x1080P@60Hz
Signal type	HDMI 1.3a / T.M.D.S. full digital signal
Interface	HDMI-A Interface
Signal strength	T.M.D.S. +/- 0.4Vpp
Minimum / maximum level	T.M.D.S. 2.9V/3.3V
Impedance	Differential100Ω
Maximum output distance of video cable	Less than 7 m, when the resolution is 1920x1080P@60 (recommended the use of certified HDMI cable, as Molex TM cable)
HDBaseT output interface
Interface	High speed RJ45
Transmission distance	Up to 100m via CAT5e/6 shielding cable
Power supply	DC 12V/1.5A
Maximum power dissipation	7.5W

CREATOR CORPORATION, founded in 1997, as an ISO 9001-2000 (TUV) and CE certified company, it's specialized in manufacturing product lines including Multimedia Control Systems, Matrix Switchers for RGB/VGA/ AV, DVI&Fiber products, interfaces and switchers, Educational all-in-one controllers and Professional Conference Systems, dedicate to providing high-quality products, full services and technical support to distributors and OEM, ODM customers worldwide.

CREATOR owns powerful R&D force in headquarter Guangzhou, and three factories including SMT, Moulding and Assembly line, oversea branch offices locate in Taiwan, Singapore, Australia, US and Dubai. CREATOR is a well-known brand in the AV market and market leader in China. Since 2002, we have established distribution network all over the world

It gains its fame for integrating researching, developing, producing and selling.

CREATOR Multimedia Control System, Professional Matrix Switchers, Education System and Conference System are well-known in related fields with a large market share, CREATOR products are applied to all kinds of fields, such as multimedia audiovisual rooms, multimedia conference rooms, public broadcast, media show etc, customers include Colleges, Governments, Military, Broadcasters, Public Media, Professional Stereo etc
