Product Specifications
| Prod Model: |
CROSS-MAX0808/1616/3232/7272/144144/288288 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support Input Type: |
DVI,HDMI,Fiber,Hdbaset,VGA,etc |
| Support Output Type: |
DVI,HDMI,Fiber,Hdbaset,VGA,etc |
| Baud Rate: |
9600 |
| Box Size: |
3u 5u 10u 16u 30u |
| Certification: |
ISO |
| Function: |
Signal Transmission Equipment |
| Type: |
Matrix |
Product Description

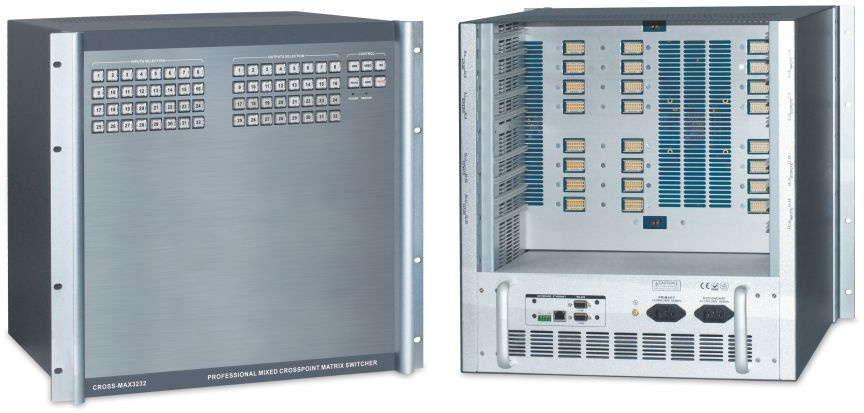

CROSS series modular matrix switcher supports HDMI, DVI, VGA, CVBS, S-Video, YPbPr, SDI signal local direct input, as well as HDMI, DVI, VGA, SDI signal direct output, DVI seamless output, and DVI splicing output. In addition, it also provides the twisted pair (HDBaseT) input and output card, which can prolong the input and output signal transmission distance up to 100M via the twisted pair together with the twisted pair transmitter. It provides fiber input and output card as well, which can prolong the input and output signal transmission distance up to 300M via the single core multimode fiber together with the fiber transmitter. Besides that, it can be changed into a single-mode transceiver using single-mode fiber transmission to increase the transmission distance up to 20km. Digital signal processing technology can ensure to transmit the best quality image to the display terminal without distortion.
More products available:
CROSS-MAX0808
CROSS-MAX1616
CROSS-MAX3232
CROSS-MAX7272
CROSS-MAX144144
CROSS-MAX288288
Features:
1) Support any card input in COMP (component video input interface support the signals of VGA, CVBS, S-Video, YPbPr), DVI, HDMI, twisted pair (HDBaseT), SF (optical fiber), , any card input of SDI (optical fiber).
2) Support any card output in DVI, HDMI, twisted pair (HDBaseT), SF (optical fiber), VGA, SDI, DVI seamless, and DVI splicing.
3) Support input EDID read, custom functions.
4) Support embedded bidirectional infrared and RS-232 control signal switching function (should cooperate with the twisted pair or FB card and the corresponding transmitter (CROSS-MAX288288 does not support).
5) Supports positive fast channel and the Wall-mounted control signal separation switching mode.
6) Flexible control mode, key panel operation, RS-485 extended key-board operation, also offers 2 standard RS-232 communication interface and network port, convenient for users to work with a variety of remote control equipment.
|
Name / Model |
Appearance |
|
Xin-HDMI8 input card |
|
|
Xin-DVI8 input card |
|
|
Xin-CAT8 input card |
|
|
Xin-COMP8 input card |
|
|
Xin-SF8 input card |
|
|
Xout-HDMI8 output card |
|
|
Xout-DVI8 output card |
|
|
Xout-CAT8 output card |
|
|
Xout-SF8 output card |
|
|
FAN ASSEMBLY fan assembly card |
|
|
BC-100 blank card |
|
|
Radiating card |
|
