HDPE Pipe Joint/ Plastic Pipe Electro Fusion Wrap

Name: HDPE Pipe Joint/ Plastic Pipe Electro Fusion Wrap
Brand: china-manufacturer-directory.com
SKU: 727594145
Availability: InStock
Rating: 4.4 (102 reviews)

Supplier:	Qingdao Huashida Machinery Co., Ltd.
Price:	US $ 15/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HSD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Pipeline Joint Closure

Product Description

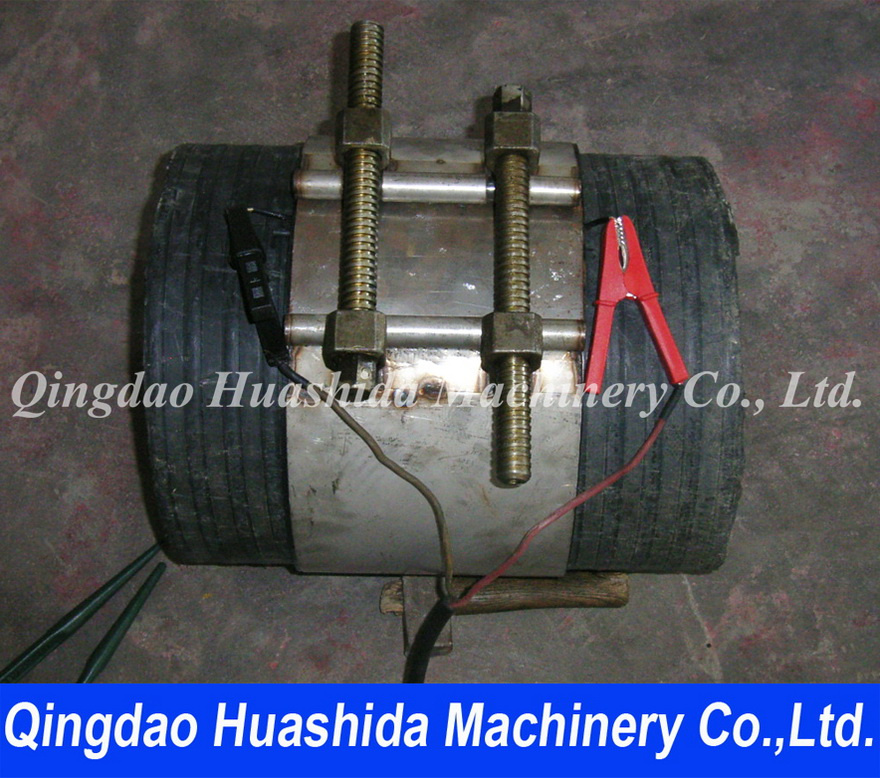

HDPE Pipe Joint/ Plastic Pipe Electro Fusion Wrap

It is a kind of connecting pipe fitting what is widely used on anti-corrosion, especially on Directly buried pre-insulated pipes field joint. It is made by Polyethylene sheets complex with the electro-fusion wire

Application:
1. District thermal heating system construction,
2. Pre-insulated pipes field joint welding and oil pipes joint welding;
3. Preinsulated bonded pipe system for directly buried hot water networks;
4. Three PE/PP layers with foam jacket insulation pipes connection;
5. Steel pipes anti-corrosion etc.

Performance:
1. Waterproof; High adhesion, good airtightness, corrosion resistant capacity, long service life and convenient operation
2. Able to withstand axial forces initiated by axial movements of the pipe in the ground;
3. Able to withstand radial forces and bending moments;
4. Able to withstand effects of temperature and temperature variations.
5. Have the same thickness of the line pipe insulation layer.

Specification
Steel pipe outside diameter (mm)		PE outside casing diameter (mm)		Width(mm)	Tic.mm
DN159		285		600	4
DN219		315		600	4
DN273		365		600	4
DN325		420		600	5
DN377		500		600	5
DN426		550		600	6
DN478		630		600	6
DN529		655		600	6
DN630		760		600	8
DN720		850		600	8
DN820		960		600	10
DN920		1054		600	10
DN1020		1155		600	12
DN1220		1380		600	12
Technical Data:
All of test according with the EN253-2003,ISO1183-2004,ISO6964-1986,EN728-1997
Final Test	Unit	Standard	Test Result	Result
Raw material density	g/cm 3	≥0.935	≤0.961	PASS
Raw material melt flow rate	g/10min	≤0.50	0.46	PASS
Appearance check	/	Inernal and external surfaces is clean and free from other defects.	Pass	PASS
Heat reversion	%	≤3;shall not show any cracks	0.89,No cracks	PASS
Tensile yield strength	Mpa	≥19	20.2	PASS
Elongation at break	%	≥350	656	PASS
Stress crack resistance	h	≥300	Pass	PASS

Qingdao Huashida Machinery Co., Ltd. Was established in Qingdao High & New Technology Industrial Area.

HSD have twenty years plastic machinery and related products manufacture experience, structured working attitude and responsibility. Assimilate and master technology introduced from abroad, we developed series of high effective single screw extruder.

As a professional manufacture in plastic pipe and plastic sheets machinery in China, Qingdao Huashida Machinery Co., Ltd. is specialized in designing and manufacturing plastic extrusion lines as well as welding equipments etc.

Our products have exported to many countries, such as Japan, Taiwan, Russia, Uzbekistan, Kazakhstan, Turkey, Thailand, Brazil, Saudi Arabia, Egypt, South Africa, India etc.
