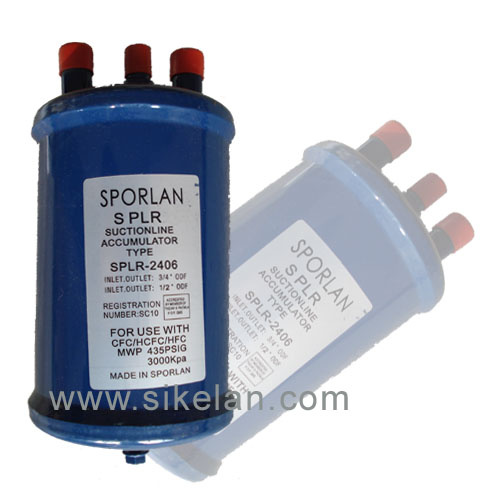

Heat Exchanger of Gas-Liquid Separator for Refrigeration (SPLR-2406)
Product Specifications
| Prod Model: |
SPLR-2406 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Certification: |
UL |
| Application: |
Heater |
| Structure Material: |
Metal Material |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
| Principle: |
Mixing Heat Exchanger |
Product Description
SPLR heat exchanging gas-liquid separator for refrigeration
SPLR offers a whole tubes of solid construction, preventing the wastage of refrigeration amount to the utmost extent.
Features:
1. The weld crater of gas suction line ranges from 1/2" to 1-1/8"
2. The tube line of the heat exchanger ranges from 3/8" to 1-1/8"
3. Corrosion resistant painting
4. Maximum operating pressure: 3.1Mpa
5. Saving refrigerant amount.
|
TYPE |
A(in) |
B(in) |
C(in) |
D(in) |
E(in) |
ODF Suction line |
ODF Liquid line |
Normal Ref Capacity(KW) |
|
R-134a |
R-22 |
R404-R507 |
|
SPLR-2404 |
4 |
8.47 |
1.38 |
2.08 |
2.37 |
1/2 |
3/8 |
3 |
2.7 |
2.8 |
|
SPLR-2405 |
4 |
10.83 |
1.83 |
2.12 |
2.37 |
5/8 |
3/8 |
4.4 |
7 |
4.2 |
|
SPLR-2406 |
5.5 |
10.24 |
1.58 |
3.14 |
2.72 |
3/4 |
1/2 |
6.5 |
6 |
6.1 |
|
SPLR-2407 |
5.5 |
12.60 |
1.58 |
3.19 |
2.72 |
7/8 |
1/2 |
8.5 |
7.8 |
8 |
|
SPLR-2411 |
6.5 |
15.75 |
1.96 |
3.11 |
3.74 |
1-1/8 |
5/8 |
13.5 |
12 |
12.5 |
|
SPLR-2413 |
6.5 |
20.87 |
2.16 |
3.31 |
3.15 |
1-3/8 |
3/4 |
18 |
16.5 |
17 |
|
SPLR-2415 |
6.5 |
22.84 |
2.36 |
3.23 |
3.19 |
1-5/8 |
7/8 |
23 |
21 |
22 |
|
SPLR-2417 |
6.5 |
22.63 |
2.36 |
3.23 |
3.19 |
2-1/8 |
1-1/8 |
25 |
23 |
21 |
Hangzhou Maidi Heating and Refrigerating Equipment Co.Ltd is located in Hangzhou City, who has the reputation of China Heaven.We founded in 2009, and moved into new plant on Jul 2011, land area 12, 084 square meters.
The former company name is Hangzhou Sporlan Heating and Refrigerating Equipment Co., Ltd, established on 2002, engaged in manufacturing and exporting since 2004.
Our new plant owns 5 new production lines, with advanced technology, manufacturing 3 series products:
1)Hermetical Refrigeration Compressors, annual capacity 1.5 million pieces.And our compressor range is wide, suitable for small water dispenser, same car and hotel refrigerator, then middle household refrigerator, and big restaurant, supermarket refrigerator and showcase.
2)New Fluorinate Products, including R134A, R404A, R422D...etc.The max storage 1500 ton, and output 8000 ton.
3)Refrigeration Spare Parts, annual yield 600, 000PCS.High quality and sole to American and European countries.
Our whole factory has assessed to comply with the requirements of the international standard ISO9001, ISO14001.
All product has been tested and passed CE, UL, CB, VDE, CCC and RoHS certificates.
Company Management Principleis Marketing for Guideline, Quality for Existence, Technology for Development, Management for Efficiency, Service for Credibility.
Company Business concept is Quality, Innovation, High-Efficiency, Credit
Warmestly welcome your visit.
