Tengzhou Wellon Machinery Co., Ltd. >> Heavy-Duty Mortising Machine (Wood working mortiser MS3840 MS3840A)

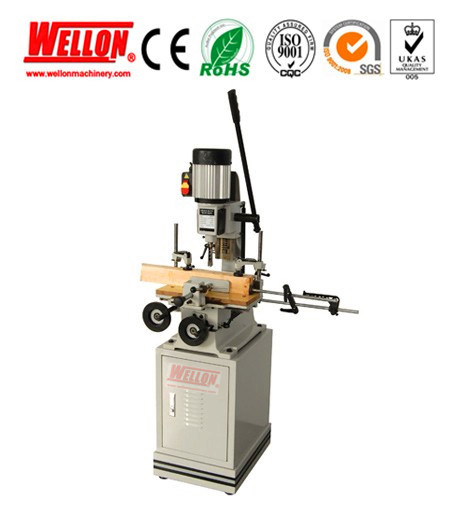

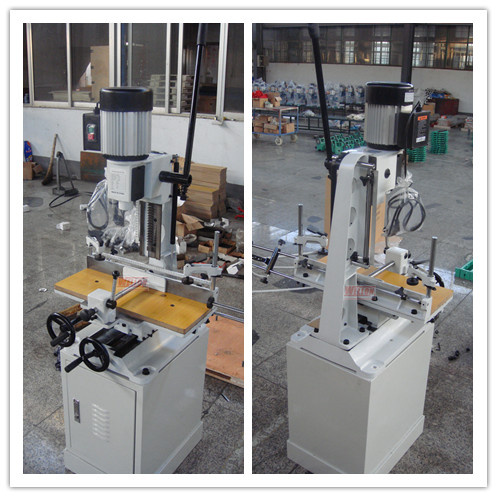

Heavy-Duty Mortising Machine (Wood working mortiser MS3840 MS3840A)

Name: Heavy-Duty Mortising Machine (Wood working mortiser MS3840 MS3840A)
Brand: china-manufacturer-directory.com
SKU: 688650492
Availability: InStock
Rating: 4.4 (129 reviews)

Supplier:	Tengzhou Wellon Machinery Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MS3840
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chisel Capacity:	6-26mm

Product Description

1. The Long Slot Mortising Machine(also called hollow chisel mortiser),similar to a drill press in many respects, combines the cutting of a four-sided chisel with the action of a drill bit in the center. The bit clears out most of the material to be removed, and the chisel ensures the edges are straight and clean.
2. Square chisel mortising bits can also be fitted to normal drill presses using a mortising attachment
3. Fit for processing wood

Model	MS3840	MS3840A
Chisel capacity	6-26mm(1/4"-1")	6-26mm(1/4"-1")
Max. mortising depth	76mm(3")	76mm(3")
Drill chuck capacity	3-16mm	3-16mm
Chisel to table(max.)	210mm	210mm
Table size	400×150mm	540x190mm
Travel in Front and Behind	145mm	145mm
Travel in left and right	320mm	170mm
Spindle to fence(max)	140mm	140mm
Over height	1720mm	1700mm
Motor	750w	750w
Spindle speed	1400(1720)rpm	1400rpm
Packing size(Machine)	560460820mm	570×480×830mm
Stand size	500×400×630mm	500×400×630
G.W./N.W.	113/108kgs(Machine) 8/16kgs(Stand)	128/120kgs

We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected

We wish to cooperate sincerely with friends all over the world to realize mutual development.
