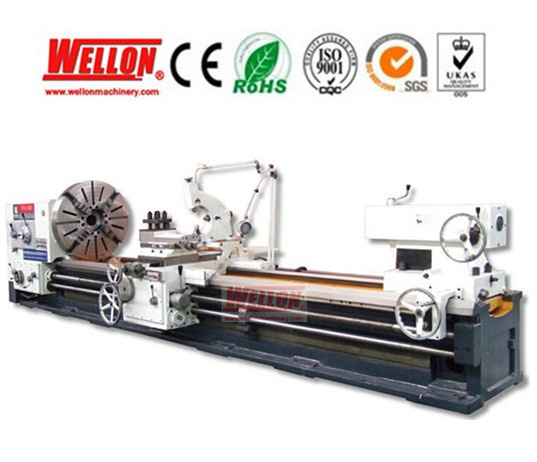

Horizontal Heavy-Duty Lathe Machine (Heavy duty lathe Cw62100d Cw62125D Cw62140d Cw62160d)

Name: Horizontal Heavy-Duty Lathe Machine (Heavy duty lathe Cw62100d Cw62125D Cw62140d Cw62160d)
Brand: china-manufacturer-directory.com
SKU: 689657372
Availability: InStock
Rating: 4.5 (150 reviews)

Supplier:	Tengzhou Wellon Machinery Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CW62100D CW62125D CW62140D CW62160D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	130mm
Processing Length:	1000-12000mm
Swing Over Bed:	1040-1640mm
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Tool Holder:	4 Way Tool Post

Product Description

These lathes can perform to turn end-faces, cylindricle surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning. They are characteristics of power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.

Stand Accessories
Four-jaw chuck F 1250mm
CW61125L, CW61140L, CW61160L: Steady rest F120--480mm(for more than 2m) CW61180L, CW61190L: Steady rest F400--700mm(for more than 2m)
Follow rest(for more than 2m) 4. Morse No. 6 Center 5. Tools 6. Set-over screw
Special Accessories
1. Metric chasing dial device
2. Inch chasing dial device
3. Inch lead screw
4. T-type tool post

MODEL			CW61100D CW62100D	CW61125D CW62125D	CW61140D CW62140D	CW61160D CW62160D
Max.swing diameter over bed			1040mm	1290mm	1440mm	1640mm
Max.swing diameter over carriage			650mm	900mm	1030mm	1030mm
Max.swing diameter on gap			1500mm	1750mm	1900mm	2100mm
Width of bed			755mm
Max.length of workpiece			1000mm 1500mm 2000-12000mm
The top two largest bearing			6t
Spindle nose			A15(1:30)
Sindle bore diameter			130mm
Taper of spindle bore			Metric No.140#
Range of spindle speed			3.15-315r/min 21kinds 3.5-290r/min 12kinds
Spindle front bearing inner diameter			200mm
Longitudinal feeds range			0.1-12r/min 56 kinds
Transversal feeds range			0.05-6mm/r 56kinds
Rapid speed	Z-axis	3740mm/min
	X-axis	1870mm/min
	upper toolpost	935mm/min
Metrec threads range			1-120mm 44kinds
Inch threads range			3/8-28 TPI 31kinds
Module threads range			0.5-60mm 45kinds
Pitch threads range			1-56TPI 25kinds
Taper of tailstock sleeve			Morse NO.80
Diameter of tailstock sleeve			160mm
Travel of tailstock sleeve			300mm
Main motor power			22kW
Rapid motor power			1.5kW
Coolant pump power			0.125kW
