Product Specifications
| Prod Model: |
HZ-8101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Electronic |
| Impact Hammer Quality: |
5-5.01kg |
| Puncture Hammer Length: |
40mm |
| Force Sensor: |
Measuring Range 0-20kn |
| Impact Hammer Diameter: |
96mm |
| Puncture Hammer Diameter: |
28mm |
| Drop Height: |
1000mm |
| Puncture Hammer Quality: |
3-3.05kg |
| Puncture Hammer Hardness: |
HRC45 |
| Display: |
LED Digital Display |
| Type: |
Impact Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description
Description

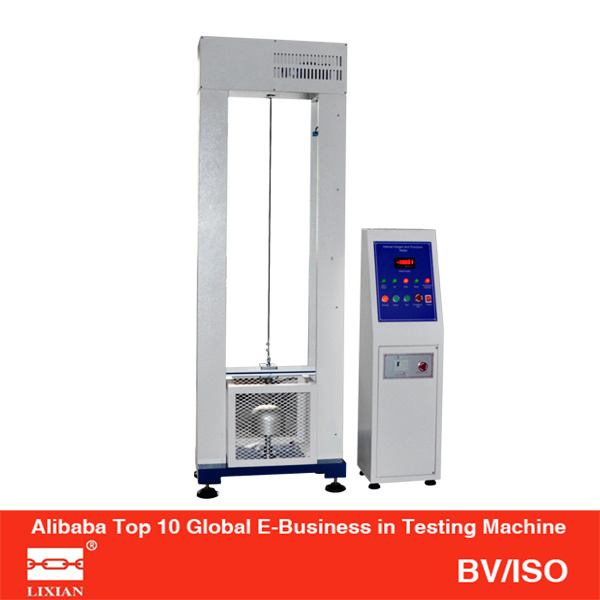

I. The helmet impact resistance Puncture Tester Instrument Purpose: The instrument dedicated to the detection helmet impact absorption properties and puncture resistance.
II. Impact resistant helmet puncture testing machine test methods
Preconditioning: Tempering treatment, ultraviolet irradiation pretreatment, water treatment, the above requirements can be pre-integrated with the A705 pretreatment tank helmet shock absorption performance test methods: The height of the drop hammer 1000mm ± 5mm; Sequentially by flooding, heat, cold, ultraviolet radiation pretreatment helmets for testing. Puncture resistance test method: Puncture the cone axis so that it passes through the center of the helmet crowns 100mm diameter weakest point within the structure, adjusting cone tip to puncture crowns contact point height 1000mm ± 5mm, turn right after flooding, high temperatures, temperature, ultraviolet irradiation pretreatment helmets tested.
III. Impact resistant helmet instrument puncture test machine main technical parameters:
1. Drop hammer: The impact of the drop hammer:
The quality of 5-5.01kg,
Hammer hemispherical diameter 96mm, made of 45 # steel.
Puncture hammer: The quality of 3-3.05kg,
Piercing section cone angle of 60 ° ,
The cone tip diameter 1mm, length 40mm, maximum diameter 28mm, hardness HRC45.
2. Force sensor: Measuring range 0-20KN, corresponding to the minimum frequency 5kHz dynamic force sensor, accurate to 1N.
3. Drop height: 1000mm.
4.1 #, 2 # Si alloy headform test each one. Comply with GB / T 2812 -2006 Appendix A requirements.
IV, Impact resistant helmet instrument features a puncture test machine.
Drop hammer and hammer to replace simple operation.
(2) with automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.
(3) 3 electric hoist with optical positioning device, automatic positioning, accurate and reliable.
(4) 4 wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.
(5) 5. LED digital display, auto-save maximum force.
V. Impact resistant helmet Puncture Tester Standard
GB / T 2812-2006 "helmet test methods" within the shock absorbing properties and puncture resistance test standards. GB / T 2811? 2007 "helmet"
|
Drop hammer |
Drop impact hammer |
1.quality:5-5.01kg,
2.hammer hemispherical,
3.diameter 96mm,
4.made of 45 # steel |
|
Puncture hammer |
1. quality:3-3.05kg
2.piercing section cone angle of 60 °
3.cone tip diameter 1mm, length 40mm, Max. diameter 28mm,
4.hardness HRC45 |
|
Force sensor |
1.Measuring range 0-20KN, 2.corresponding to the minimum frequency 5KHz, 3.dynamic force sensor, accurate to 1N |
|
Drop height |
1000mm |
|
1 #, 2 # Si alloy headform test each one. Comply with GB / T 2812 -2006 Appendix A requirements |
