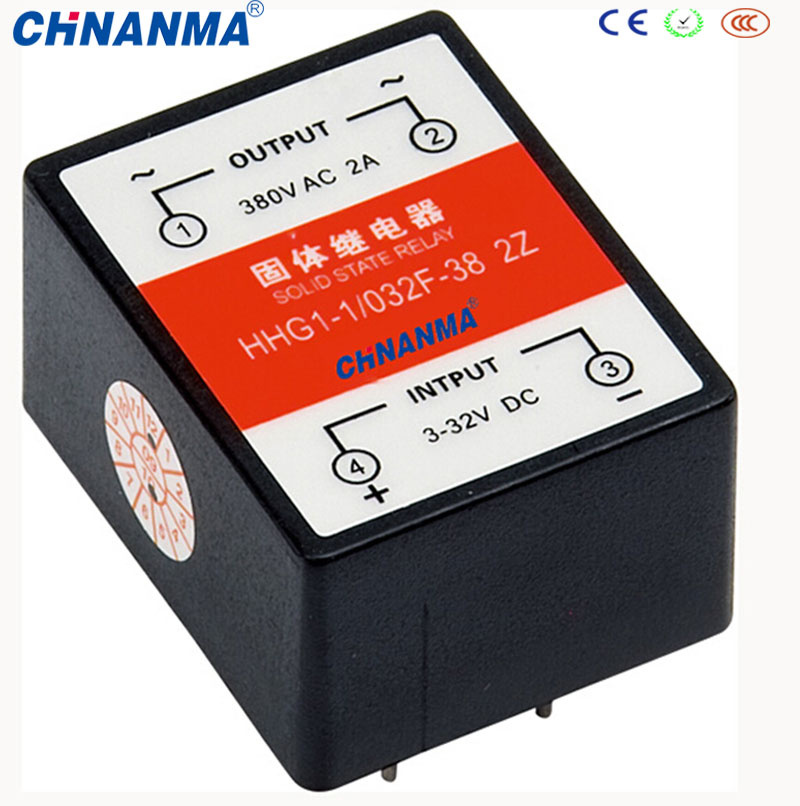

Hhg1-1/032f-22 with Cover AC/AC Module Solid State Relay

Name: Hhg1-1/032f-22 with Cover AC/AC Module Solid State Relay
Brand: China-Manufacturer-Directory.com
SKU: 766241825
Availability: InStock
Rating: 5 (135 reviews)

Supplier:	Yueqing Chnanma Electrical Co., Ltd.
Price:	US $ 2.0-3.8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HHG1-1/032F-22; HHG1-1/032F-38; HHG1-0/032F-20 2A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Load:	High Power
Operational Current:	10 to 40 AMPS
Operational Voltage:	240V or 440V
Dielectric Strength:	1500VAC
Control Current:	6-35mA

Product Description

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

Model Explanation

Specification

Model	HHG1-1/032F-22 2A (SSR-DA)
	HHG1-1/032F-38 2A (SSR-DA)
	HHG1-0/032F-20 2A (SSR-DD)
Control Voltage	032:3-32VDC
Control Current	6-35mA
Make-on Voltage	3VDC
Break-off Voltage	1VDC
Reverse Voltage	32VDC
Load Voltage	AC:22:30-240VAC,38:40-440VAC
	DC:20:12-200VDC
Load Current	2A
Instant Voltage	AC:22:600VAC;38:900VAC
	DC:20:220VDC
Voltage Drop	AC:<1.6VAC,DC:<1.2VDC
On-off Time	AC:≤10mS,DC:≤5mS
Leakage Current	AC:≤10mA, DC:≤5mA
Dielectric Strength	≥1500VAC
Insulation Resistance	500MΩ,500VDC
Ambient Temperature	minus30 to 80ºC
Indicate Methods	/

Outline Dimension
