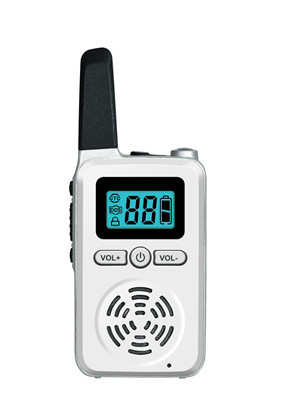

High Capacity 5W Professional Two Way Radio Td-Q5plus
Product Specifications
| Prod Model: |
TD-Q5plus |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength And Frequency: |
Short-wave |
| Application: |
Industrial |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
Main Function
| Squelch function | Time out timer (TOT) |
| Priority channel scan | Reporting number command of English and Chinese |
| Vox transmission | Power saving function |
Voice prompt |
High/Low power adaptable |
| Emergency alarm call | Voice purifying function |
| Busy channel lockout (BCL) | End tone elimination |
| High/Low power alert | Compander function |
| Water-Proofing | FM radio |
| CTCSS/DCS |
|
Technical Parameter
| Model | TD-Q5Plus |
| General |
| Frequency range | VHF | UHF |
| 136-174MHz | 400-520MHz |
| Channel Capacity | 99 |
| Channel Spacing | 25KHz |
| Antenna Impedance | 50 |
| Microphone Impedance | 600 |
| Operating Voltage | 7.4V DC |
| Frequency Stability | ±2.5PPm |
| Size(without Antenna) | mm(L)×mm(W)×mm(D) |
| Weight(With Battery) | g |
| Battery | 1800mAh(Polymer Li-ion)
|
Transmitter
| RF Power Output | 5W/1W |
| Modulation Type | FM |
| Modulation Sensitivity | <15mV |
| Modulation Distortion | ≤5% |
| Max Freq Deviation | ≤5KHz/≤2.5KHz |
| Occupied Bandwidth | ≤16KHz |
| Modulation Feature | ±3dB |
| Spurious Radiation | ≤7.5µw |
| Adjacent channel Power | ≤-65dB |
Receiver
| Sensitivity(12Db SINAD) | ≤0.15µV 12dB S/N |
| Squelch Sensitivity | ≤0.10µV |
| Audio Power output | 500mW(12) |
| Audio Respond | +2 -8 |
| Operating Bandwidth | >5KHz |
| Co-channel Rejection | ≥-8dB |
| Blocking | ≥85dB |
| Adjacent channel selectivity | ≥65dB |
| Standby Current | 60mA(unsave) 15mA(save) |
| Spurious Rejection | ≥60dB |
| Intermodulation Rejection | ≥60dB
|
Accessories
Objects | Quantity | | Battery charger | one | | Power adapter | one | | Lithium battery | one | | Belt Clip | one | | Hang strap | one | | User's manual | one | | Warranty card | one | | Certificate | one |
|
|
Quanzhou Tongdaxin Electronics Co., Ltd is a company specializing in the development, production, sale and service of two-way radio, in-vehicle radio repeater as well as two-way radio bluetooth technology. We have a professional team which consists of staff with great ambition and dedication to work. Today the communication is full of competitions and challenges. We focus on technology research and development in order to put more cost-effective products on the market, so that our business will keep growing steadily.
Our operation principle is to take the lead and make progress. After many years' development, a set of operation stereotype which includes research, production, sale and after sale has been formed.
We always abide by the principle of "Down to earth and create perfection". Moreover, we insist on providing advanced products with more technological value to our customers to make sure that they will receive satisfactory telecom products.
