Vibraing screen:

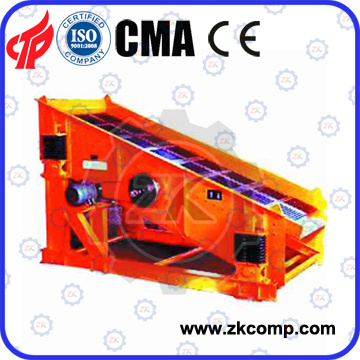

Driven by rounding motion of vibrator, rounding vibrating screen is widely applied in quarries and mines. It has the advantages of adjustable amplitude, long dropping line, several screening decks, clear screening effect for each type of end products and high screen efficiency.
Vibrating Screen Operating Principle:
The main parts of the vibrating screen are screening case, sieve and eccentric shaft.
Driven by the motor, the eccentric shaft rotates quickly and then drives the sieve to move uniformly. The moving track of the screening case is just like a circle. While screening, the smaller materials will flow down to the lower sieve while the bigger one is left on the top sieve. Generally speaking, the materials on the top sieve will be transported back to be crusher again and the lower ones will be separated into different size's end product.
The sieving surface of this series is consisted of multi-block of different inclination angle (three is common), can make the material isopachous distributing in every section, is propitious to transmit, slicing and fully sieving in sieving surface. Compare with other linear vibrating screens, this series screen is high sieving efficiency, large processing volume of per unit, small abrasion of sieving surface and uneasy block up.
Vibrating Screen Features and Benefits:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
2. The beam and case of the screen are connected with high strength bolts without welding.
3. Simple structure, easy to repair.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
| Model | Screen Layer | Screen Slope(° ) | Deck Size(m 2) | vibration frequency(r/min) | Double-amplitude(mm) | Capacity(m 3 /h) | Motor Power(Kw) | Overall Domensions (L× W× H)(mm) | Weight(Kg) |
| 2YK1224 | 2 | 15 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673× 2382× 2027 | 1750 |
| YK1235 | 1 | 15 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710× 2464× 1450 | 1729 |
| 2YK1235 | 2 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705× 2393× 2339 | 2476 |
| 3YK1235 | 3 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621× 2521× 2581 | 3158 |
| 4YK1235 | 4 | 15 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510× 2521× 2830 | 4160 |
| YK1545 | 1 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 11 | 4904× 3044× 2179 | 3319 |
| 2YK1545 | 2 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 5042× 3090× 3165 | 5308 |
| 3YK1545 | 3 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 4972× 3090× 3395 | 5915 |
| 4YK1545 | 4 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 18.5 | 4915× 3155× 3804 | 7260 |
| YK1548 | 1 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 11 | 5190× 3044× 2186 | 3319 |
| 2YK1548 | 2 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5265× 3140× 3208 | 5284 |
| 3YK1548 | 3 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5200× 3090× 3440 | 6186 |
| 4YK1548 | 4 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 18.5 | 5200× 3155× 3849 | 7284 |
| YK1860 | 1 | 20 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302× 3365× 2992 | 4651 |
| 2YK1860 | 2 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020× 3455× 3756 | 6195 |
| 3YK1860 | 3 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020× 3455× 4180 | 7613 |
| 4YK1860 | 4 | 20 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963× 3505× 4463 | 8650 |
