Product Specifications
| Prod Model: |
SKS |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235B Carbon Steel Plate or as Client Requirement |
| Installation: |
Supplier Dispatch Engineer |
| Voltage: |
380 V Others |
| Power(W): |
5.5-110 Kw |
| Dimension(L*W*H): |
Different Model Different |
| Weight: |
6- 300 Ton |
| Certification: |
CE, ISO9001:2000 |
| Warranty: |
Two Years |
| Application: |
Construction,Metallurgical,Mining Industry etc |
| Drying Temperature: |
200-1000 Degree |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Hot Air |
Product Description

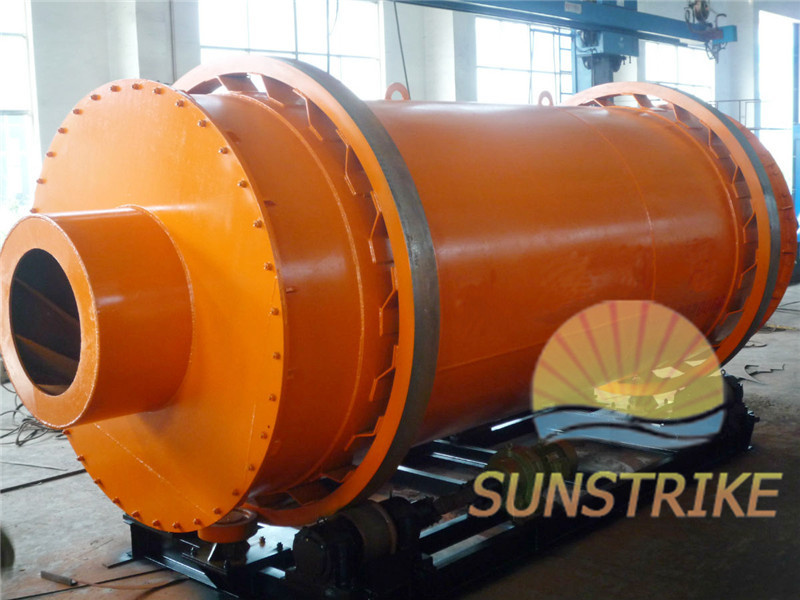

High drying efficiency sand dryer machine/ sand drier with large capacity
Sand dryer machine is one kind of large capacity rotary dryer. Because of our
sand dryer reliable operation, large elasticity of operation, strong adaptability,
large capacity, widely used in building material, metallurgy, food, chemical, coal,
medicine in the mining industry. This type dryer generally adapted to granular
materials,also can be used to drying the mixed material in the sticky paste
material or material with high moisture content. This sand dryer is very suitable to
drying sand, such as quartz sand,silica sand,rive sand and other sand. Sand dryer
or sand rotary dryer has the advantage of large capacity, wide applicable range,
small flow resistance, operation is allowed on the wide range and convenient
operation, etc.
Sand rotary dryer structure and the working principle:
The sand dryer main part:
1. Dryer body, 2.rolling ring, 3. Ring gear, 4. Roller, 5 .small ring gear,
6.discharging part 7.lifting plate, 8.motor and reduce speed machine,
9.Feed chute, 10. furnace and other part.
We are also can with customer's need design coal gasifier,Combustion chamber,
conveyor equipment,feeding machine,dust catacher,fan and other machine.
Working principle of sand dryer
The sand transport into the hopper by belt conveyor or bucket elevator,And then
through the hopper feeder and loading pipes into the feed end .The feeding pipe
slope is bigger than the natural inclination of sand , so that the sand can easy into
the dryer.The rotary dryer is a horizontal line slightly tilted to the rotation of the
cylinder.Feeding the material from higher part.
The material from the higher end put into dryer, hot air can from the same direction or different
derection into dryer. With the turning of dryer the material moving to the
lower end,the slowly moving process is drying process, at the same time the wet
sand full contact hot air and evaporation water, when the drying process finished
used the belt conveyor transport out.
On the walls of sand dryer body is equipped with lifting plate,they are used to lifting
the sand and dispersion to make the sand fully contact with hot air, improve the
drying effect and promote the material advance.
Technology data of sand Dryer:
Model | Length
(m) | speed
(r/min) | Drying temperature
(°c) | Capacity
(t/h) | Motor
(kw) | Weight
(ton) |
| Φ0.8x8 | 8 | 3-8 | ≥800 | 0.6-0.8 | 3 | 3.5 |
| Φ1.0x10 | 10 | 3-8 | ≥800 | 1-1.5 | 4 | 7 |
| Φ1.0x12 | 12 | 3-8 | ≥800 | 1.5-1.8 | 4 | 8 |
| Φ1.2x12 | 12 | 3-8 | ≥800 | 2-3 | 11 | 15 |
| Φ1.5x15 | 15 | 3-8 | ≥800 | 3-3.5 | 15 | 20 |
| Φ1.8x15 | 15 | 3-8 | ≥800 | 4.5-5.0 | 18,5 | 28 |
| Φ2.0x18 | 18 | 3-8 | ≥800 | 6-6.5 | 18.5 | 42 |
| Φ2.0x20 | 20 | 3-8 | ≥800 | 6.5-6.8 | 18.5 | 50 |
| Φ2.2x20 | 20 | 3-8 | ≥800 | 6.5-7.0 | 22 | 56 |
| Φ2.4x20 | 20 | 3-8 | ≥800 | 7.5-8 | 30 | 60 |
