Product Specifications
| Prod Model: |
CTL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spare Parts Supply: |
for Whole Year |
| After-Sale Service: |
for Whole Using Year |
| Test&Installation: |
Engineer Assigned |
| Mining Object: |
Beneficiation Equipment |
| Type: |
Magnetic Separator |
| Voltage: |
380V |
| Weight: |
5T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Grey |
| Customized: |
Customized |
| Condition: |
New |
Product Description

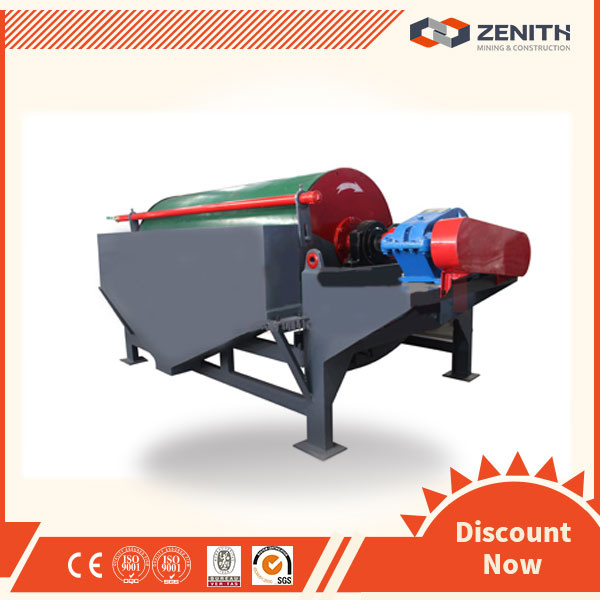

Dry type and wet type high intensity magnetic separator machine for Separating magnetic iron ore, ilmenite, zircon, rutile, monazite, tin, gold etc.
Dry type processing machine plant for ilmenite ore mining separating.
Dry magnetic separator is the newly developed high-performance processing equipment can be widely used in metallurgy, mining and other industries. The device has characteristics of commotion magnetic field and high separation factor, advanced structure, light weight, reliable operation and easy maintenance. This product is ideally suited for arid areas, for it can save water resources, and reduce dressing costs, opening up a new way for magnetite mining. This product is also can be driven by diesel engine, it is also available in power shortage areas. In addition to the existing styling products, we can also develop different magnetic separators according to user-specific demands on different magnetic induction and the application of different magnetic materials. These series of products can meet the needs of small, medium and large mining processing plant, welcome to negotiate business. Our company offers industrial prototype, can provide users with a small test.
Ilmenite mining equipment parameters:
| Model | Roller Size DxL (mm) | Speed (r/min) | Capacity (T/h) | Overall Dimension LxWxd (mm) | Power (kw) | Weight (t) |
| CTL-0816 | 800x1600 | 0-63 | 35-55 | 3053x1295x1671 | 7.5 | 2.75 |
| CTL-0818 | 800x1800 | 0-63 | 55-70 | 3266x1295x1671 | 11 | 3.30 |
| CTL-0821 | 800x2100 | 0-63 | 70-85 | 3936x1295x1671 | 15 | 3.90 |
| CTL-0824 | 800x2400 | 0-63 | 85-100 | 4235x1295x1671 | 18.5 | 4.45 |
| CTL-1021 | 1050x2100 | 0-50 | 100-130 | 4030x1545x2046 | 18.5 | 4.80 |
| CTL-1021 | 1050x2100 | 0-50 | 100-130 | 4150x1545x1850 | 18.5 | 4.68 |
| CTL-1224 | 1200x2400 | 0-50 | 115-150 | 4720x1545x1850 | 22 | 5.18 |
| Note: The magnetic strength should be determined in accordance with the nature of the ore. CTL Series Dry separator can be customer-made. |
