Product Specifications
| Prod Model: |
JT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spare Parts Supply: |
for Whole Year |
| Test&Installation: |
Engineer Assigned |
| After-Sale Service: |
for Whole Using Life |
| Export Markets: |
Global |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
2T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Grey |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Description of JT series gold separator:

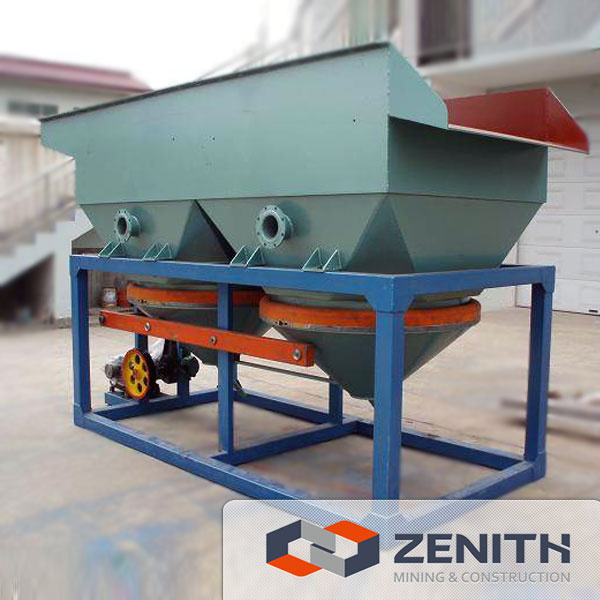

JT Series Saw-tooth wave jig gold separator belongs to a type of energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. The performance of saw-tooth Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation. When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; Enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Advantages of gravity jigger gold separator:
1.High capacity, Highconcentration ratio and high recovery
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation, Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable for roughing and desliming
Application Area of gold separator:
JT series Saw-tooth Wave Jigger gold separator is capable of dealing with almost full sizes of mineral materials and very fine material. They can achieve a good result in processing such as placer gold, tantalum-niobium, titanium, tungsten, iron, tin, hematite, cope, manganese, barite, zirconium and chrome etc.
Main Construction of gravity jigger concentrator:
JT series sawtooth wave jig gold separator is mainly consist of three parts: Main frame, driving set and jigging chamber
Gold separator parameters:
Model | JT-0.57 | JT1-1 | JT2-2 | JT3-1 | JT4-2 | JT5-2 |
| Jigging Chamber | Section Form | Trapezium | Trapezium | Rectangle | Trapezium | Rectangle | Trapezium |
| Length*Width(mm) | 450~750×950 | 450~900×1500 | 1070×1070 | 960~2000×1950 | 1510×1510 | 1200~2000×3150 |
| Column Number | Single | Single | Single | Single | Single | Single |
| Jig Chambers(psc) | 1 | 1 | 2 | 1 | 2 | 2 |
| Single chamber area (m²) | 0.57 | 1 | 1.14 | 3.3 | 2.43 | 2.12(single chamber) 2.77(double chamber) |
| Total area(m²) | 0.57 | 1 | 2.28 | 3.3 | 4.86 | 5 |
| Stroke Coefficient | 0.57 | 0.64 | 0.45 | 1 | 0.58(single power) 0.45(dual power) | 0.58(single power) 0.45(dual power) |
| Max feed size(mm) | 6 | 5 | 10 | <20 | 8, plus sieve automatic discharge <60 | 8, plus sieve automatic discharge <60 |
| Capacity(t/h) | 1~2.5 | 2~3 | 4~8 | 10~15 | 12~16 | 10~20 |
| Water Consumption(m³/h) | 1~2 | 2~3 | 2~4 | 3~6 | 4~8 | 5~10 |
| Separator | Stroke(mm) | 12,17,21 | 12,17,21 | 12,17,21 | 10~47 adjustable | 10~30 | 15,20,25 |
| Jig frequency(min-1) | 60~156 adjustable | 60~156 adjustable | 60~156 adjustable | 80~100 adjustable | 80~120 adjustable | 80~120 adjustable |
| Motor | Model | YCT 132-4B | YCT 100L-6 | YCT32-4 | YCT-4B | YCT 160-4B | YCT 200-4A |
| Power (kw) | 1.5 | 2.2 | 3 | 5.5 | 5.5 (dual power) 7.5 (single power) | 5.5 (dual power) 7.5 (single power) |
| Overall Dimension(Length*Width*Height)mm | 1530×780×1550 | 2060×1112×1890 | 2870×1520×1880 | 2662×2000×3030 | 4240×1990×2750 | 3940×2006×2580 |
| Weight(kg) | 612 | 989 | 1637 | 3260 | 3500 | 3854 |
| Notes: The above data is only for your reference, capacity and hutch water varying from ore granularity, ore property and operating condition. |
