Product Specifications
| Prod Model: |
FDX-AD-40-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Security Level: |
A1 |
| Material: |
Steel Plate |
| Function: |
Anti-theft |
| Lock Type: |
Electronic Lock |
| Certification: |
CCC |
| Door Type: |
Single Door |
| Password Working Principle: |
Electronic |
| Application: |
Home |
Product Description
Model Number: FDX-AD-40-R
Minimum Order Quantity: 30 Piece/Pieces
Supply Ability: 3000 Piece/Pieces per Month

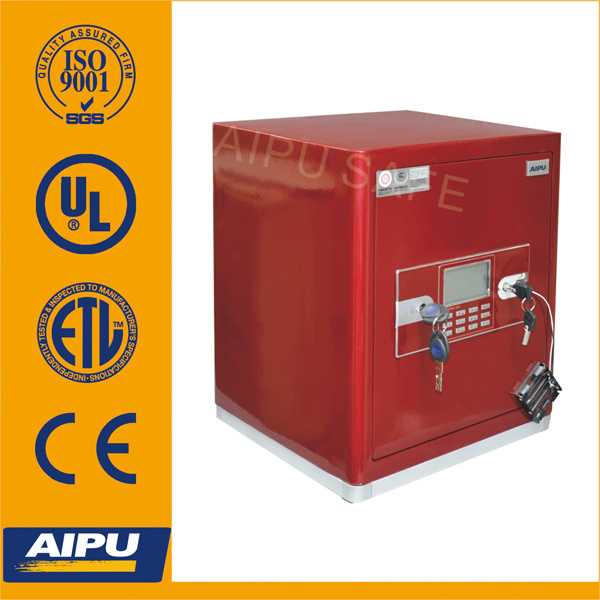

High end steel home and offce safes FDX-AD-40-R /electronic safe box / 400 x 353 x 330 mm
High end top selling safes in the Chinese domestic market/ Red High Gloss finish
1) Size & Weight:
- External Size (H x W x D): 400 x 353 x 330 (mm); 15.7 x13.9 x13 (inch)
- Safes height not include pedestal height (30 or 40mm per different model).
- Net Weight: 29± 1kg / 64± 2 lb
2) Interior and shelving
- Carpeted walls, bottom and shelf
- One adjustable shelf with aluminium edge trimmer
- BIZ - organizer on the back panel ( includes key hooks / credit card pocket/ envelope holder )
3) Material
Steel plate: Q345A Low alloy high tension steel plate
(instead of Q235A which widly used in the industry )
Steel Thickness: 4mm for body, 8mm for door (AD23 ~ AD45)
6mm for body, 10mm for door (AD53 ~ AD150)
4) Key lock and Electronic Lock
- Dual locking by Electronic lock and Key lock.
- Electronic lock is activated only when valid key inserted.
- 2 user codes, 3~8 digit password, hidden mechanical override key
- Large LCD display showing time and day, battery status etc.
- Date & Time setting, Opening record trail on LCD display
- Motion sensitive alarm function (Alarm will ring if the safes is hit or punched )
- Three time wrong password lock out for 180 sec (3 min)
5) Security feature
- Two Chrome plated locking bolt
- Seamless laser cutting door prevent prybar attacking.
- inner hinge prevent hinge cutout.
6) Color and Finish
- High gloss red (FDX-AD-**-R) or sandstone grey combi(FDX-AD-**-G).
7) Accessory
- 2 anchor bolt holes on the back...2 anchoring bolts included.
- Patented EasyFix anchor down pedestal (AD23~AD45).
- Removable casters with hiding skirt for easy moving(model: AD53 ~ AD150)
8) Standard option:
- Custom Logo: Please contact us for MOQ and additional cost.
- Please contact us if you have other needs.
9) Safes in the Same Series
* Safes height not include pedestal or wheels
| Model Name | Out side size (HxWxD, mm) | Out side size (HxWxD, inch) |
| FDX-A/D-23 | 230 | 353 | 200 | 9.1 | 13.9 | 7.9 |
| FDX-A/D-25 | 250 | 353 | 250 | 9.8 | 13.9 | 9.8 |
| FDX-A/D-30 | 300 | 383 | 310 | 11.8 | 15.1 | 12.2 |
| FDX-A/D-35 | 350 | 453 | 350 | 13.8 | 17.8 | 13.8 |
| FDX-A/D-40 | 400 | 353 | 330 | 15.7 | 13.9 | 13.0 |
| FDX-A/D-45 | 450 | 392 | 330 | 17.7 | 15.4 | 13.0 |
| FDG-A1/D-53III | 530 | 393 | 342 | 20.9 | 15.5 | 13.5 |
| FDG-A1/D-63III | 630 | 436 | 382 | 24.8 | 17.2 | 15.0 |
| FDG-A1/D-73III | 730 | 476 | 422 | 28.7 | 18.7 | 16.6 |
| FDG-A1/D-D73III | 730 | 436 | 382 | 28.7 | 17.2 | 15.0 |
| FDG-A1/D-100III | 930 | 512 | 452 | 36.6 | 20.2 | 17.8 |
| FDG-A1/D-D100III | 930 | 584 | 452 | 36.6 | 23.0 | 17.8 |
| FDG-A1/D-120III | 1200 | 584 | 475 | 47.2 | 23.0 | 18.7 |
| FDG-A1/D-150III | 1500 | 604 | 560 | 59.1 | 23.8 | 22.0 |
AIPU is a safes manufacturing company located in Ningbo China.
Our company consist of 3 safes factories and one safes technology research institute in Ningbo with overall 1200 employees and 45 sales branches throughout the mainland China.
We are proud of being safes manufacturer with advanced equipments such as CNC punching machines and lazer cutting machines, and we have more than one hundred safes expert engineers.
AIPU received ISO9001 quality control system and we also have products carrying UL, CE, ETL and many other overseas and Chinese certificates.
We have been building safes from 1991 and have become number 1 market share from 2005 in Chinese domestic market.
Our overall sales volume 2009 was around $52, 000, 000 and $18, 000, 000 was exported to overseas.
We are a major supplier of many large and famous safes companies such as Gunnebo, AMSEC, Stack-On, Gardall, MESA, Pheonix, etc.
Our product range covers wide varity of different safes such as gun safes, fire proof safes, depository safes, hotel safes, finger print safes, etc.
With our accumulated experience in safes building and service, we believe that we could satisfy your need and can be your supplier.
