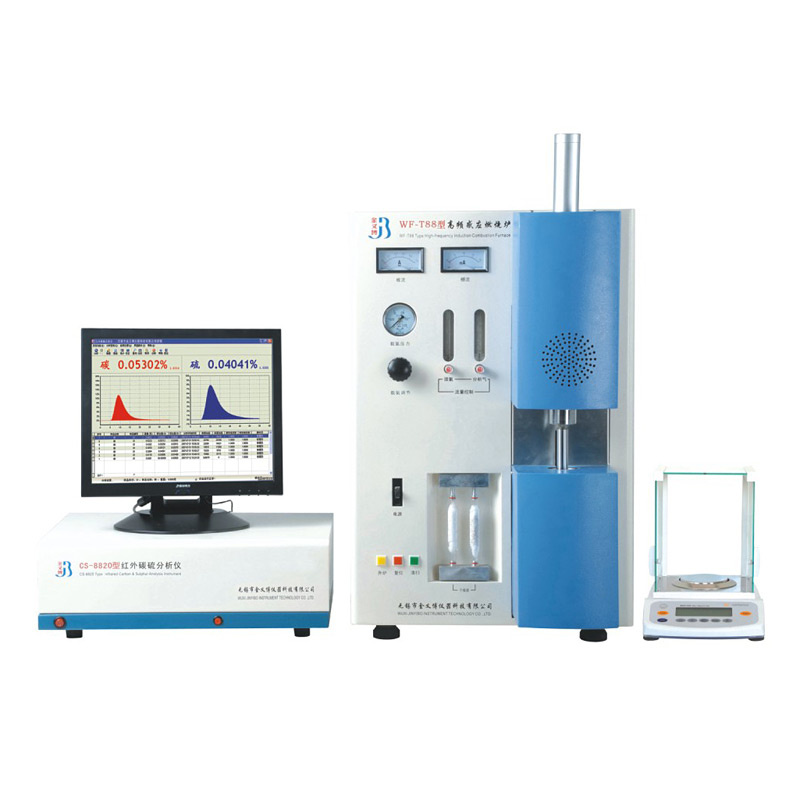

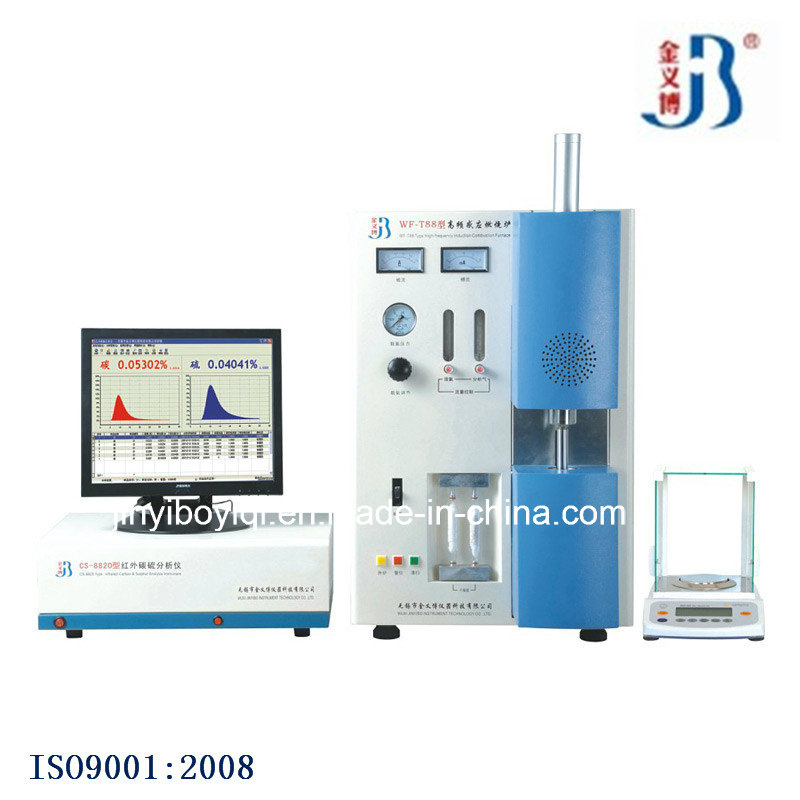

High Frequency Infrared Carbon&Sulphur Instrument for Alloy Analysis
Product Specifications
| Prod Model: |
CS-8820 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
C: 0.0001%-10.0000% S: 0.0001%-3.5000% (Can Extend |
| Electronic Balance: |
Weight The Sample in Variable Amount Accuracy of |
| High Frequency Furnace: |
Power ≥2.7kVA Oscillation Frequency:20MHz |
| Analysis Time: |
25-60 Seconds Can Be Set ( Usually 35 Seconds) |
| Power Supply: |
Voltage:AC220V±5%,Frequency:50Hz±2% |
| Oxygen: |
Purity: ≥99.5%, Input Pressure : 0.18MPa + 5% |
Product Description
1. Company informationAs a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. Possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.
2. Product DescriptionTesting the mass fraction of C,S of steel,iron,alloy,mold and cores,nonferrous metal,cement,ore,coke,catalyst,magnetic materials,ceramic,inorganic,substance,black lead,refractory matter,battery matter,plant and other material.
3. Main Features(1).Adopting the double CPU up and down modual design, elestronic circuit integration degree is highly, steady and reliable, which can settle the high-frequency interference thoroughly.
(2).The special new platinum infrared light source,Gold plated carbon sulfur analysis pool and high precision pyroelectric infrared detector to make the apparatus' measurement more accurate.
(3).Adopting the high power and quick frequency circuit design, which using 6KVA high frequency power tube(actual use of power is about 2.5KVA, it can turn on to work itself), to reduce the high frequency combustion system load and to increase the using time.
(4).Furnace head automatic cleaning device, patent technology supply system and -0.4mm amd hole metal filter to make the dust and gas seperated, reducing the dust on the result of analysis.
(5.)Specialized analysis software of many different language owns following functions:curve/data storage, blank deduction, parameter determination, channel choosing, data statistics, results correction, breakpoint correction, curve comparison, system diagnosis, automatic/manual printing analysis results etc.
4. Main technical parameter
Measuring range | C: 0.0001%-10.0000% ( can extend to 99.9999%) S: 0.0001%-3.5000% (can extend to 99.9999%) |
Analysis of error | With GB / T20123-2006/ ISO15350: 2000 standard |
Analysis time | 25-60 seconds can be set ( usually 35 seconds) |
High frequency furnace | power ≥2.7KVA Oscillation frequency:20MHz |
Electronic balance | weight the sample in variable amount Accuracy of reading:0.0001g |
Working environment | indoor temperature:10-30ºC,relative humidity:<90% |
Power supply | voltage:AC220V±5%,frequency:50Hz±2% |
Oxygen | Purity: ≥99.5%, input pressure : 0.18MPa + 5% |
WUXI JINYIBO INSTRUMENT TECHNOLOGY Co., Ltd

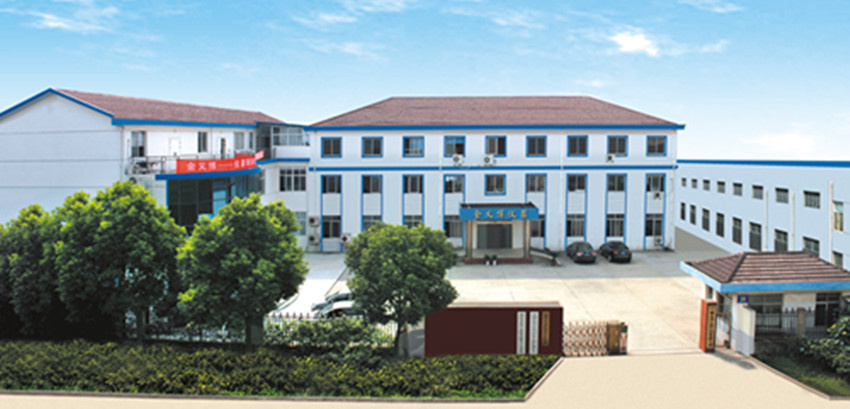

Company Profile
As a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. Possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.
We embrace the business philosophy of ''to satisfy customer with instrument offering remarkable precision''. For the past few years, we have set up ten sales and service centers and more than 40 service outlets. Our products are widely used around China and have been sold to South America, Africa, West Asia, Vietnam, Taiwan area, Hong Kong, etc. Besides the effort to develop material testing instruments, we established five bases, namely Product R&D Center, Material Testing Center, Physical and Chemical Training Center, Product Display Center and Trade Settlement Center. We strive to become a manufacturer and international supplier providing a full range of testing instruments.
The enterprise spirit of Jinyibo is ''self-discipline and social commitment''. The staff of Jinyibo sticks to the belief, takes a highly responsible attitude to our users, and follows the development thought of building a bigger, stronger and better enterprise. We will uphold the innovation of science, keep seeking for perfection and make great contribution to the prosperity of national instrument industry.
Quality Policy:
High technology, high quality, high level of service and to establish a well-known brand
Business philosophy:
To make instruments as per standards and to ensure precision through science and technology
To satisfy customer with our service and to gain users through our sense of responsibility
