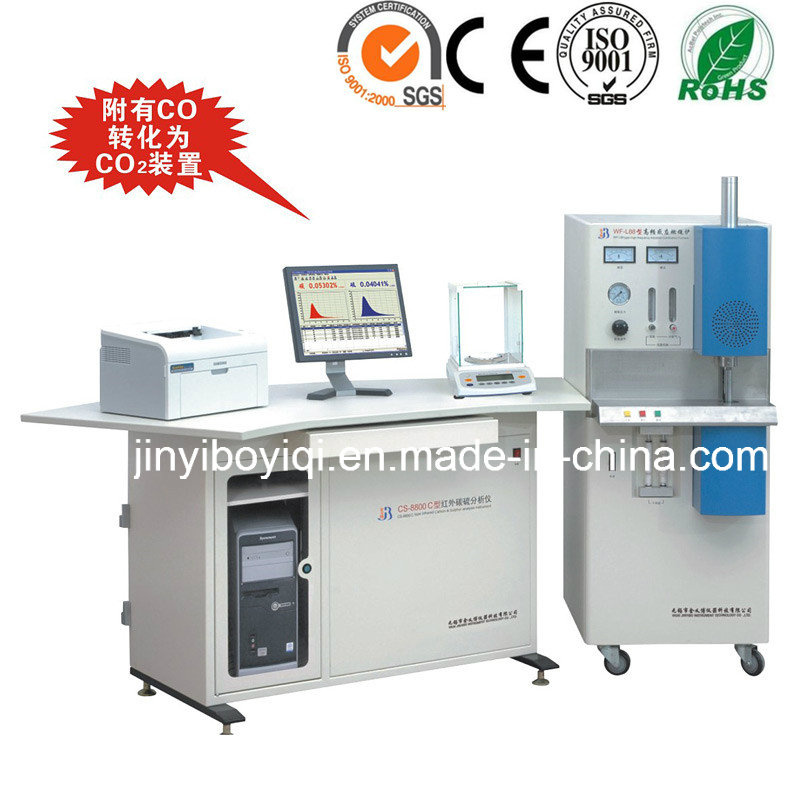

Wuxi JinyiBo Instrument Technology Co., Ltd. >> Updated New Practical High-Frequency Infrared Carbon&Sulphur Analysis Instrument

Updated New Practical High-Frequency Infrared Carbon&Sulphur Analysis Instrument

Name: Updated New Practical High-Frequency Infrared Carbon&Sulphur Analysis Instrument
Brand: china-manufacturer-directory.com
SKU: 763142795
Availability: InStock
Rating: 4.9 (22 reviews)

Supplier:	Wuxi JinyiBo Instrument Technology Co., Ltd.
Price:	US $ 9500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CS-8800C
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Patent:	Co Translates Into CO2 Device
Min. Reading:	0.1ppm
Analysis Time:	20 -100s, Usually 35s
Element:	Carbon and Sulfur Elements
Application:	Steel,Iron,Alloy,Non-Ferrous,Cement,Ore,Coke...
Frequency:	50Hz±2%
Function:	Element Content Test
Power Source:	AC220V±5%

Product Description

1. Company information
As a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.

2. Product Description
Testing the mass fraction of C,S of steel,iron,alloy, mold and cores,non-ferrous metal,cement,
ore,coke,catalyst,magnetic materials,ceramic,inorganoc substance,black lead,refractory matter,battery,plant and other materials.

3. Main technical parameters

Analysis theory:high-frequency furnace burn infrared absorptive detection.

Range of measurement:C:0.00001%-10.0000% (can extend to 99.99999%)

S:0.00001%-6.0000% (can extend to 99.99999%)

Analytical error:accord with GB/T20123-2006/ISO15350:2000 standard

Analysis precision:C:RSD≤0.5 % S:RSD≤1.0%

Sensibility (Min. reading):0.1ppm

Detection pond:C:C Pond (can add low C pond )

S:S Pond ( can add High S pond )

Time of analysis:20-100s can setting(usually 35s)

High-frequency furnace:power ≥2.7KVA Oscillation frequency:20MHz

Electronic balance:weight the sample in variable amount

Accuracy of reading:0.0001g

Work environment:indoor temperature:10-30°C,

relative humidity:<75%,

voltage:AC220V±5%,

frequency:50Hz±2%

4.The key characteristics

The instrument imports the advanced technology from abroad, is a high-tech product with integration of light, machine, electricity, sensors, computers and analysis technology etc. Measurement range is extensive, antijamming capability is powerful, all-ready function, easy to operate, the analysis result is exact and reliable etc. Most components of the instrument are imported from abroad, and the machine is comparable with imported products.

(1) Humanized circular arc and stainless steel table-board design, easy to operate.

(2) Domestic pioneering double carbon and double sulfur pool access to analysis the ultra low and higher content, and automatic switching.

(3) High-speed sampling 24 realizes the dynamic data integral of analysis procedure; improve the analysis sensitivity and accuracy rating.

(4)CO translates into CO₂ device(only domestic owns), improves the degree of accuracy of measuring the C.

(5) Use7.5KVA high-frequency ceramic power tube, burn the samples adequately and its stability is good.

(6) Snap-in type automatic sweep technique ( with patent ) and ultramicropore mental dust filter,reducing the influence of dust to analysis result, easy to dismantle, be in favor of maintain.

(7) Low tension heating ring ( with patent technology) heating in furnace end, which can improve the percent conversion and stabilize the analysis result of S.

(8)Infrared detection part and high-frequency furnace are connected by optical (domestic pioneering),coordinate with multilevel covert style isolation circuit,which can avoid the high-frequency interference thoroughly.

5. Analysis Software

(1) Operational software: Adopt Deliph software compiler, and WINDOWS Xp English operating software.

(2) Analysis channel:Provide channel management function,C&S channel can add, delete and edit by itself, no quantitative restriction, preset low carbon and high-sulfur interface,realize the automatic switchover of software.

(3) Analysis functions: Analysis procedure dynamic data integral, sampling 24 times/s, improve the sensitivity and accuracy rating of analysis, manage the sample, including edit the name, logo of samples, increase and delete sample name. The software provides multi-user management system, the manager can sset up different user rights.

(4) Show function: C and S hold a curve box respectively; show the real-time data and C & S release curve in the analysis process dynamically.

(5) Print function: multiple print mode, the two print modes-laboratory and check station are provided, and it can plan print format by itself.

(6) Self diagnosis function: System diagnosis, detecting sealing of the furnace head and gas chamber by software.

(9) Dedusting and decontamination plant adopt internal pressure seal, tightness and purification effect is good, easy to replace.

(10) WINDOWS Xp English operating interface, the analysis software adopts Deliph software compiling, function setup is powerful, and the interface is distinct and visualized.

(11) Powerful data statistics function, networking operation, data transmission on the internet and number off.
