High Frequency Online UPS Single Phase with LED

Product Specifications

Prod Model:	WW-UPS008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Total Output Effiency:	Rated 500W, Peak 1000W
AC Input Voltage:	AC 90V-140V 55/60Hz or AC170-260V50/60Hz
Charge Input Solar Panel(Optional):	Voltage 18V 20-100W Transfer Effiency≥15%
Solar Panel Voltage:	12.75V±0.075V
Battery Capacity:	Lithium Battery 12V 26ah 288wh
Lithium Battery Inner Current Wastage:	≤50ua
The Reaction Time:	≤5ms
DC Output(4 Ports):	12V/8A (10A Max)
USB Output(4 Ports):	5V/ 6.2A, Can Charge Any Mobile and for iPad
LED Lighting:	1W, Max Can Be 3W
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent, Overvoltage, Short Circuit
Application:	Business, Travel, Home etc
Brand:	Winwin

Product Description

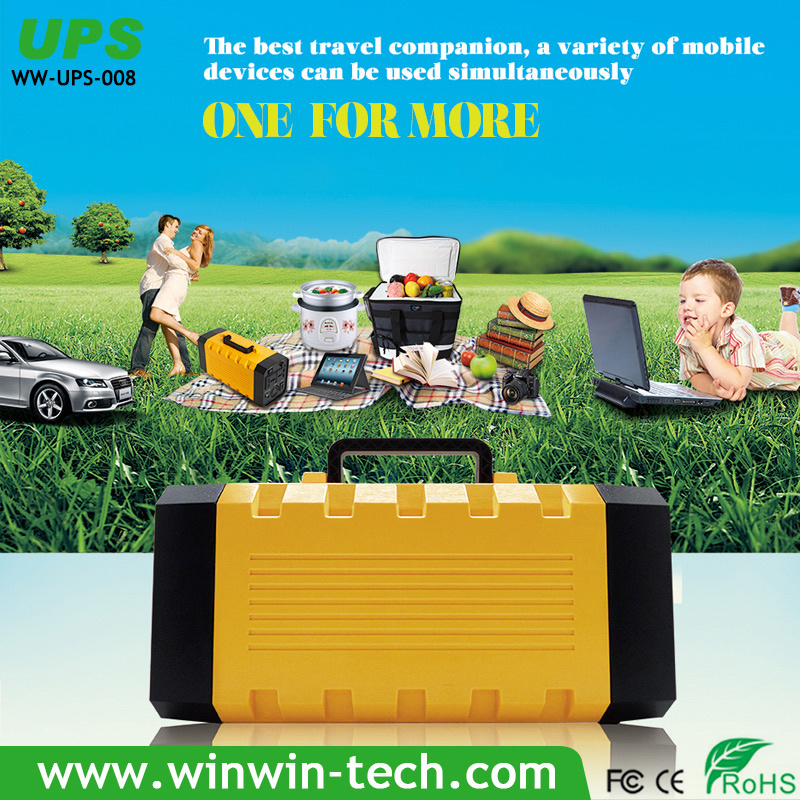

High frequency online ups single phase with LED (WW-UPS008)

Descriptions:
Item Name: Online UPS Power Supply
Item No.: WW-UPS008
Total Effiency: Rated 500W,  Peak 1000W
Output Waveform: Modified Sine Wave
AC Input Voltage: AC 90V-140V 55/60Hz or  AC170-260V50/60Hz
Inner Transformer Output: 100V 55HZ/110V 60Hz/120V 60Hz/230V 50Hz
DC Output(4 ports): 12V/8A (10A MAX)
USB Output(4 ports): 5V/ 6.2A,can charge any mobile and for IPAD
LED Lighting: 1W ,Max Can be 3W
Backup Time:
3hours (PC+Display)  ;  96 hours (12V LED)  ;  55 times (for 5V mobile charger)
8 hours (Laptop 13")  ;  6 hours (50W Fan)  ;  5 hours (32" LCD TV)
14 hours (20W Energy-saving lamps)
Item Size: 28*11*13.5cm;  Weight: 3.2 kgs
Item Color: Yellow

Specifications:

Output Waveform:	Modified Sine Wave
AC Input Voltage:	AC 90V-140V 55/60Hz or AC170-260V50/60Hz
Charge Input Solar Panel(Optional)	Voltage 18V 20-100W Transfer effiency≥15%
Solar Panel Voltage	12.75V±0.075V
Battery Capacity:	Lithium battery 12V 26Ah   288Wh
Lithium battery inner current wastage	≤50uA
Inner Transformer Empty-load Current	≤0.3A
Inner Transformer Less Voltage Protection	≤8V
Inner Transformer Temperature Protection	≤80°C
Inner Transformer Over-load Protection	≤600W
Inner Transformer Output	100V 55HZ/110V 60Hz/120V 60Hz/230V 50Hz
Inner Transformer Effiency Rate	≥90%
Inner Transformer Effiency	Rated:500W   Peak:1000W
Built-in Charger Input Voltage	AC100V -240V 50Hz/60HZ
Built-in Charger Current	5A±0.5A
Built-in Charger Transfer Effiency Rate	≥80%
Built-in Charger Over-discharge Protection	7.5V±0.5V
Built-in Charger Over-charge Protection	12.75V±0.075V
The Reaction Time:	≤5MS
DC Output(4 ports):	12V/8A (10A MAX)
USB Output(4 ports):	5V/ 6.2A,can charge any mobile and for IPAD
LED Lighting:	1W ,Max Can be 3W
Overload:	After disconnecting the AC output overload,AC indication red.Disconnect the load,after rebooting recovery
Short circuit protection:	After a short circuit Disconnect the AC output,disconnect the load,after rebooting recovery
Backup Time:	3 hours(PC+Display)
	96 hours(12V LED)
	55 times(for 5V mobile charger)
	8 hours(Laptop 13")
	6 hours(50W Fan)
	5 hours(32" LCD TV)
	14 hours(20W Energy-saving lamps)
Color:	Yellow
Weight (Nw/Gw):	3.2kg/3.5kg
Size:	28*11*13.5cm
Packing:	Inside the box size:15*19*31CM
	Weight:3.5KG
	Carton size:20*50*32CM(Each containing 3pcs)
	Weight:11KG
LED LIGHT INDICATION
DC Output:	Green
Power Supply Working Normally	Power Green
Power Supply Working Un-normally	FAULT Red
AC Charge-In	During Charging: Red Fully charged: Green
Solar Charge-In	During Charging: Red Fully charged: Green

Why Choose Winwin:
1) Professionally manufacturing UPS POwer for electronic products
2) ISO9001:2007, SGS; CE & RoHS, REACH certification
3) 8 years of OEM and ODM manufacture experience
4) Monthly Production Capacity-300, 000PCs & 30000 square meters of workshop area
5) Prompt reply within 12 hours, and Professional serive
6) Providing the most competitive price and keeping the best quality meanwhile
