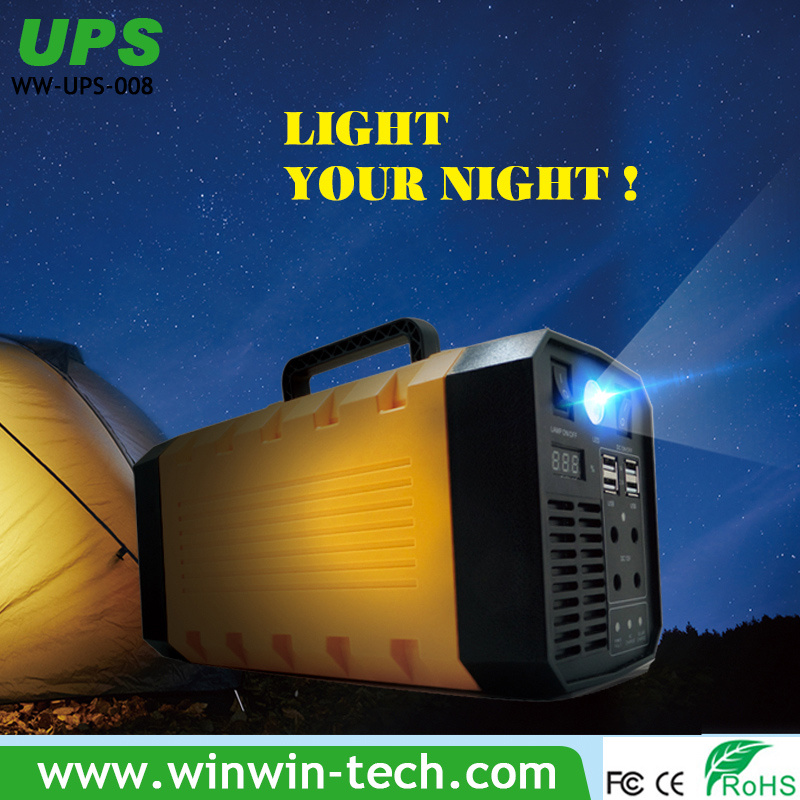

World First Computer Uninterruptible Offline UPS Power Supply (WW-UPS008)
Descriptions:
Item Name: Online UPS Power Supply
Item No.: WW-UPS008
Total Effiency: Rated 500W, Peak 1000W
Output Waveform: Modified Sine Wave
AC Input Voltage: AC 90V-140V 55/60Hz or AC170-260V50/60Hz
Inner Transformer Output: 100V 55HZ/110V 60Hz/120V 60Hz/230V 50Hz
DC Output(4 ports): 12V/8A (10A MAX)
USB Output(4 ports): 5V/ 6.2A,can charge any mobile and for IPAD
LED Lighting: 1W ,Max Can be 3W
Backup Time:
3hours (PC+Display) ; 96 hours (12V LED) ; 55 times (for 5V mobile charger)
8 hours (Laptop 13") ; 6 hours (50W Fan) ; 5 hours (32" LCD TV)
14 hours (20W Energy-saving lamps)
Item Size: 28*11*13.5cm; Weight: 3.2 kgs
Item Color: Yellow
Details show:
Winwin UPS Power WW-UPS008 is with 9 Selling points as below:
Specifications:
Output Waveform:
Modified Sine Wave
AC Input Voltage:
AC 90V-140V 55/60Hz or AC170-260V50/60Hz
Charge Input Solar Panel(Optional)
Voltage 18V 20-100W Transfer effiency≥15%
Solar Panel Voltage
12.75V±0.075V
Battery Capacity:
Lithium battery 12V 26Ah 288Wh
Lithium battery inner current wastage
≤50uA
Inner Transformer Empty-load Current
≤0.3A
Inner Transformer Less Voltage Protection
≤8V
Inner Transformer Temperature Protection
≤80°C
Inner Transformer Over-load Protection
≤600W
Inner Transformer Output
100V 55HZ/110V 60Hz/120V 60Hz/230V 50Hz
Inner Transformer Effiency Rate
≥90%
Inner Transformer Effiency
Rated:500W Peak:1000W
Built-in Charger Input Voltage
AC100V -240V 50Hz/60HZ
Built-in Charger Current
5A±0.5A
Built-in Charger Transfer Effiency Rate
≥80%
Built-in Charger Over-discharge Protection
7.5V±0.5V
Built-in Charger Over-charge Protection
12.75V±0.075V
The Reaction Time:
≤5MS
DC Output(4 ports):
12V/8A (10A MAX)
USB Output(4 ports):
5V/ 6.2A,can charge any mobile and for IPAD
LED Lighting:
1W ,Max Can be 3W
Overload:
After disconnecting the AC output overload,AC indication red.Disconnect the load,after rebooting recovery
Short circuit protection:
After a short circuit Disconnect the AC output,disconnect the load,after rebooting recovery
Backup Time:
3 hours(PC+Display)
96 hours(12V LED)
55 times(for 5V mobile charger)
8 hours(Laptop 13")
6 hours(50W Fan)
5 hours(32" LCD TV)
14 hours(20W Energy-saving lamps)
Color:
Yellow
Weight (Nw/Gw):
3.2kg/3.5kg
Size:
28*11*13.5cm
Packing:
Inside the box size:15*19*31CM
Weight:3.5KG
Carton size:20*50*32CM(Each containing 3pcs)
Weight:11KG
LED LIGHT INDICATION
DC Output:
Green
Power Supply Working Normally
Power Green
Power Supply Working Un-normally
FAULT Red
AC Charge-In
During Charging: Red Fully charged: Green
Solar Charge-In
During Charging: Red Fully charged: Green
