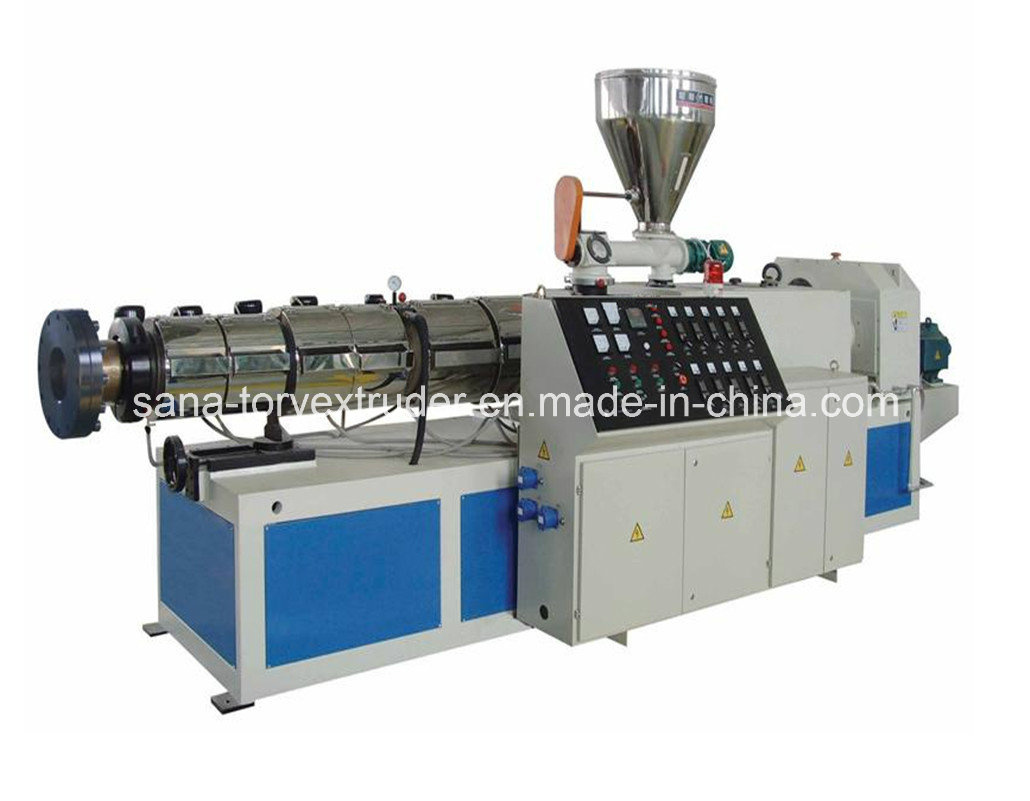

High Output Plastic Conical Twin Screw Extruder Machinery

Product Specifications

Prod Model:	ST-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conical Twin Extruder:	Conical Double Screw
PVC Extruder Machine:	PVC Extrusion Machine
Steady Operation:	High Output
Advanced Design:	Long Use Life
Type:	Pipe Extruder
Plastic Processed:	PVC
Product Type:	Extrusion Molding Machine
Feeding Mode:	Multiple Feed
Assembly Structure:	Integral Type Extruder
Screw:	Twin-Screw
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Computerized

Product Description

High Output Plastic Conical Twin Screw Extruder Machinery

This machine is a highly efficient agglomerating and extruding equipment. Using PVC powder as raw material for a direct forming, the exturders perform an excellent effectiveness.Machines of this series have wide application. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastics into pipes, boards, bars, films, hollow cross-section products.

The machine has below advantages
1.  Low shearing rate, uneasy degradation,plasticization uniform and agglomeration
2.  Reliable quality ,wide application range and long servicing life.
3.  Automatic temperature control, vacuum gas exhaustion, oil cooled screws
4.  Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism.

Main technical parameters:

Model	SJZ-45	SJZ-50	SJZ55	SJZ-65	SJZ-80	SJZ-92
Screw diameter(mm)	45/100	50/105	55/110	65/132	80/156	92/188
Screw rotate speed(rpm)	45	45	45	45	34.7	3-34.7
Driving motor(kw)	15/18.5	18.5/22	22/30	37	55	110
Max output capacity(kg/h)	110	125	180	250	350	800
Center height(mm)	1050	1050	1050	1050	1050	1100
Net weight(kg)	3000	3000	3500	4000	5500	8000
Dimension(L*W*H)	3.3*1.2*2.1	3.6*1.1*2.1	3.6*1.1*2.1	4.2*1.5*2.4	4.7*1.5*2.4	6*1.6*2.5
