High Performance CNC Solid Carbide Cutting Tools

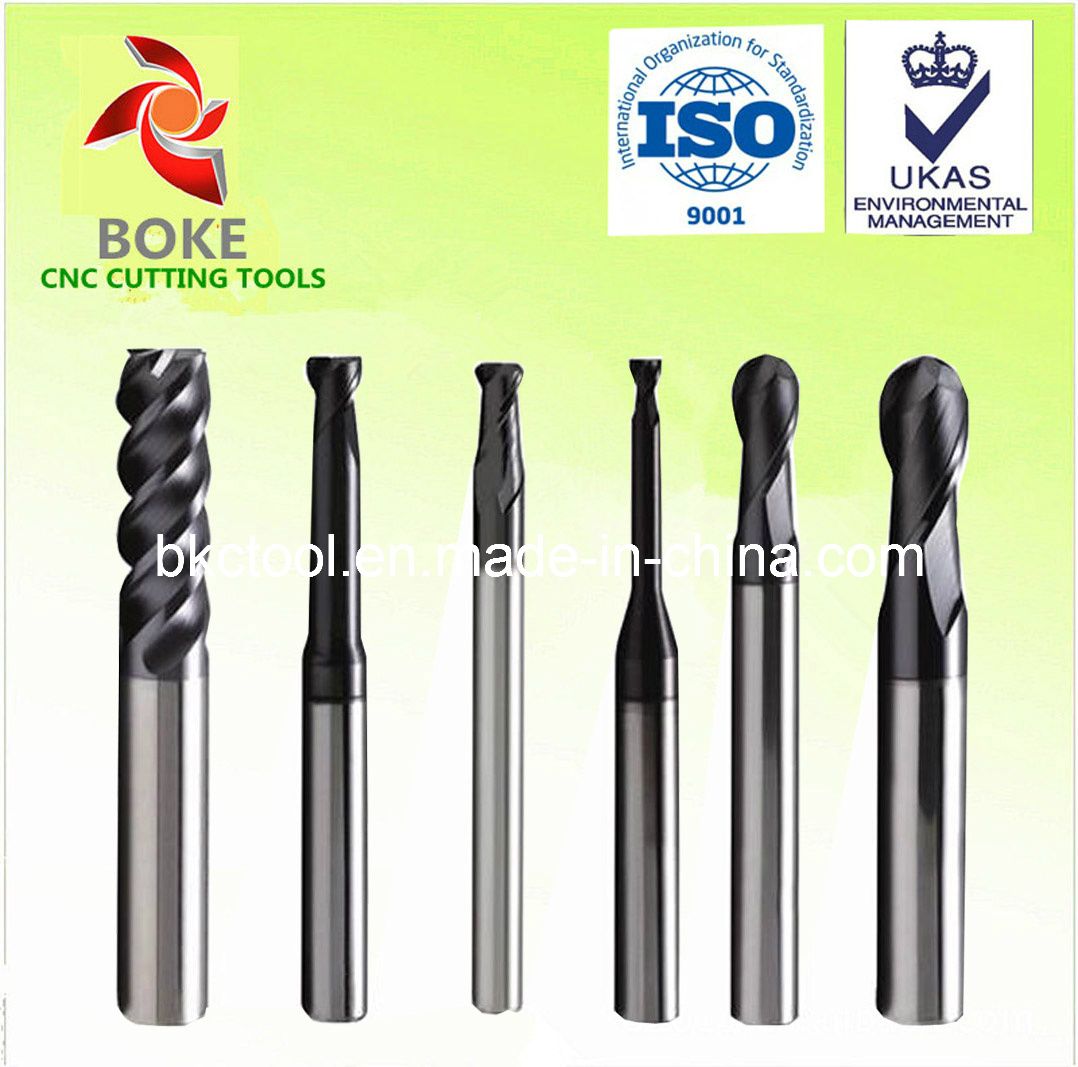

1. Carbide square end mill , ball end mill , aluminium end mill
rough end mill , special tools
2 TIAIN Coating , Tin coating and Diamond coating with high quality
3. Micro Grain for HRC45-HRC65
4- Fast Delivery and good price
Speciafications
- Chemical Composition: 8%-10%Co-WC
- Physical and Machinal properties: Density: 14.40-14.65g/cm3 Hardness: 91-93 HRA Flexural Strength: 3200-4000N/mm2
- Organizational Structure: WC mean grain size: 0.5-0.6um
- Corresponds to International Standards: K20-K30, K20-K40
- Suitable for: Machining of cast iron, nonferrous alloy, nonferrous metals, fireproof alloy, Titanium alloy, alloy steel, carbon steel and other non-metallic. It has suitable for finishing processing the grooves and side. Meanwhile, it can be processing in high speed and high efficiency which the material HRC>60
2. Quality assure
All our products not only using the well-known raw materials manufacturing from home and aboard, but also we have a series of production and processing equipments and precision testing equipment to guaranteed quality.
1. Raw Materials
Overseas
- GUHRING material imported from Germany.
- WF25 material imported from Taiwan
- TAEGUTEC material imported from Korea.
Domestic
The domestic material we purchased from Zhuzhou, and Zigong the well-known brands.
3. Testing Equipment
- GUHRING detecting instrument imported from Germany.
- MITUTOYO detecting instrument imported from Japan.
- PARLEC tools presetter imported from USA.
3. Packing & Delivery
1. Packing Detail
1. One plastic pipe pack one piece, 10 pieces per group.
2. Use the air bubble paper to encase the plastic paper.
3. Put the goods encased with air bubble paper into the carton.
4. Other packing will be accept according to your needs.
| D(mm) | handle d(mm) | total length (mm) |
| flute(2,3,4) | ball nose(R) |
| 1 | R0.5 | 4 | 50 |
| 1.5 | R0.75 | 4 | 50 |
| 2 | R1 | 4 | 50 |
| 2.5 | R1.25 | 4 | 50 |
| 3 | R1.5 | 4,3 | 50 |
| | R1.75 | 4 | 50 |
| 4 | R2 | 4 | 50 |
| 5 | R2.5 | 5,6 | 50 |
| 6 | R3 | 6 | 50 |
| 7 | | 8 | 60 |
| 8 | R4 | 8 | 60 |
| 9 | | 10 | 75 |
| 10 | R5 | 10 | 75 |
| 11 | | 12 | 75 |
| 12 | R6 | 12 | 75 |
| 14 | R7 | 14 | 100 |
| 16 | R8 | 16 | 100 |
| 18 | R9 | 18 | 100 |
| 20 | R10 | 20 | 100 |
We are a professional manufacturer of good quality carbide cutting tools, with an experienced design team. Our company was founded in 2001.

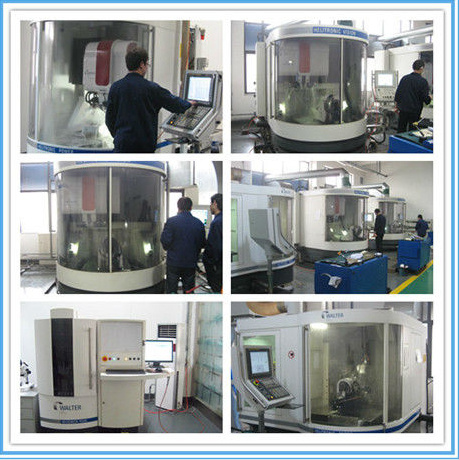

At present, we use the best six-axis CNC grinding equipment from Germany to produce high-speed carbide end mills, which is suitable for cutting highly hard and soft metal.
It is our business policy to strive for the development and innovation of carbide end mills, provide high-quality products, and offer custom designs for meeting your various needs. We have gotten customer' S support and affirmation since we were established.
In order to allow more customers to know us, we are moving toward internationalization. With the combination of sophisticated technology and modern network marketing, we provide more and better service.
Welcome to our company. We will do our best to be professional in the precision cutting tool production, and create the best results for you.
We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.
"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.
Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
