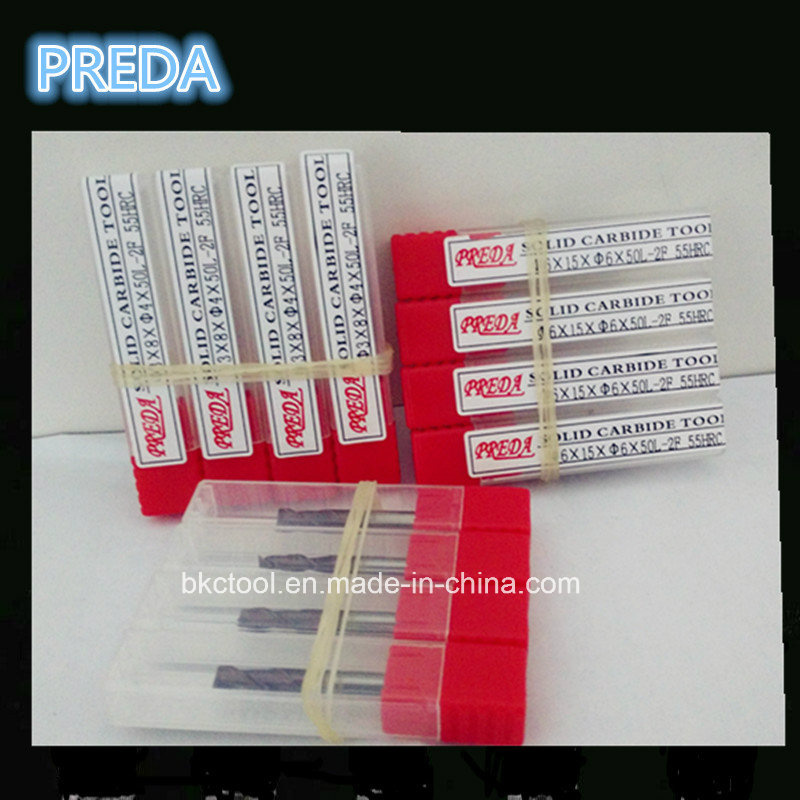

PREDA Solid Carbide Micro Grain Cutting Tools
1. Carbide square end mill , ball end mill , aluminium end mill
rough end mill , special tools
2 TIAIN Coating , Tin coating and Diamond coating with high quality
3. Micro Grain for HRC45-HRC65
4- Fast Delivery and good price
Speciafications
Chemical Composition: 8%-10%Co-WC
Physical and Machinal properties: Density: 14.40-14.65g/cm3 Hardness: 91-93 HRA Flexural Strength: 3200-4000N/mm2
Organizational Structure: WC mean grain size: 0.5-0.6um
Corresponds to International Standards: K20-K30, K20-K40
Suitable for: Machining of cast iron, nonferrous alloy, nonferrous metals, fireproof alloy, Titanium alloy, alloy steel, carbon steel and other non-metallic. It has suitable for finishing processing the grooves and side. Meanwhile, it can be processing in high speed and high efficiency which the material HRC>60
2. Quality assure
All our products not only using the well-known raw materials manufacturing from home and aboard, but also we have a series of production and processing equipments and precision testing equipment to guaranteed quality.
1. Raw Materials
Overseas
GUHRING material imported from Germany.
WF25 material imported from Taiwan
TAEGUTEC material imported from Korea.
Domestic
The domestic material we purchased from Zhuzhou, and Zigong the well-known brands.
3. Testing Equipment
GUHRING detecting instrument imported from Germany.
MITUTOYO detecting instrument imported from Japan.
PARLEC tools presetter imported from USA.
3. Packing & Delivery
1. Packing Detail
1.
One plastic pipe pack one piece, 10 pieces per group.
2. Use the air bubble paper to encase the plastic paper.
3. Put the goods encased with air bubble paper into the carton.
4. Other packing will be accept according to your needs.
| Diameter | Cutting Length | Shank Diameter | Over Length |
| 1 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2 | 6 | 4 | 50 |
| 2.5 | 7 | 4 | 50 |
| 3 | 8 | 4 | 50 |
| 3.5 | 10 | 4 | 50 |
| 4 | 10 | 4 | 50 |
| 4.5 | 13 | 6 | 50 |
| 5 | 13 | 6 | 50 |
| 5.5 | 15 | 6 | 50 |
| 6 | 15 | 6 | 50 |
| 7 | 20 | 8 | 60 |
| 8 | 20 | 8 | 60 |
| 9 | 25 | 10 | 75 |
| 10 | 25 | 10 | 75 |
| 11 | 30 | 12 | 75 |
| 12 | 30 | 12 | 75 |
| 14 | 35 | 14 | 80 |
| 16 | 45 | 16 | 100 |
| 18 | 50 | 18 | 100 |
| 20 | 50 | 20 | 100 |
