Product Specifications
| Prod Model: |
RAY-230 HPLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
420mm X 280mm X 175mm |
| Type: |
Measurement Type |
Product Description
Details:

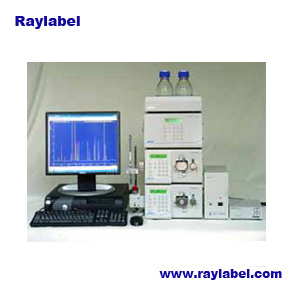

RAY-230 High-Prssure Gradient System
Specifications:
RAY230 high-pressure pump: 2 PCS
UV230 + UV/VIS detector: 1 piece
Rheodyne 7725I high-pressure 6-port injector: 1 piece
SinoChrom ODS-BP 5 μ M ID4.6 x 200mm column: 1 piece
EC2000 single channel chromatographic ataprocessinworkstation: 1unit
P230 control interface: 1 unit
Gradient mixer: 1 piece
RAY-230 High Pressure Pump
Character:
The RAY-230 Pump is a dual plunger solvent delivery system. The mechanical design includes short plunger stroke technology with two check valves. This results in very low pulsation.
The microprocessor controlled speed regulation leads to a very stable speed of the step motor, driving the plungers.
Integrated calculation software continuously corrects flow rates according to the system pressure.
Provide flow rate adjustment function when the actual flow rate is different from the preset.
The RS232 remote port is designed to control by data system.
Specifications:
Flow range: 0.001-9.999mL/min, with 0.001mL/min increment
Flow accuracy: ≤ ± 0.3% (1.000mL/min, 8.5MPa, water, ambient temperature);
Flow stability: RSD≤ 0.1% (1.000mL/min, 8.5MPa, water, ambient temperature);
Max pressure: 40MPa (0.001-4.999mL/min); 20MPa (5.000-9.999mL/min);
Pressure precision: The displayed pressure error is less than ± 0.3%;
Pressure pulsation: L≤ 1.0%;
Line voltage: 220V ± 22V, 50Hz ± 0.5Hz
Power consumption: 180W
Dimension: 420mm x 280mm x 175mm
Weight: 20kg
UV230+ UV/Vis Detector
Optical bandwidth: 6nm
Optical bandwidth: 6nm
Wavelength accuracy: ± 0.5nm;
Wavelength repeatability: ± 0.1nm;
Wavelength programmable time setting range: 0.1-999.9min;
Rise Time: 0.0-9.9s;
Linear range: ≥ 1.5AU (5%)
Baseline noise: ≤ ± 3 x 10-5 AU (empty cell, 254nm, 1.0s);
Baseline drift: ≤ 5 x 10-4AU / h (empty cell, 254nm, time: 60min)
Analytical flow cell: Optical path length 10mm; Volume 10 μ L
Semi-preparative flow cell: Optical path length 3mm; Volume 5μ L
Micro flow cell: Optical path length 3mm; Volume 1.2μ L
Power requirements: 220V, 50Hz
Power consumption: 110W
Dimension: 420mm x 280mm x 175mm
Weight: 8kg
EC2000 Chromatography Data-Processing Software
Character:
Unique Analytical Method Setup
Multi-functional Data Processing
Great Chromatogram Processing Capability
Accurate Quantitative Analysis
Flexible Report Output
Comprehensive Integration Events
Unique Analysis Automation
Extended Real Time Control
Satisfactory After Service
Specifications:
EC2000 Interface (Single/Dual Channel)
EC2000 Software
Gradient Control Interface (Optional)
