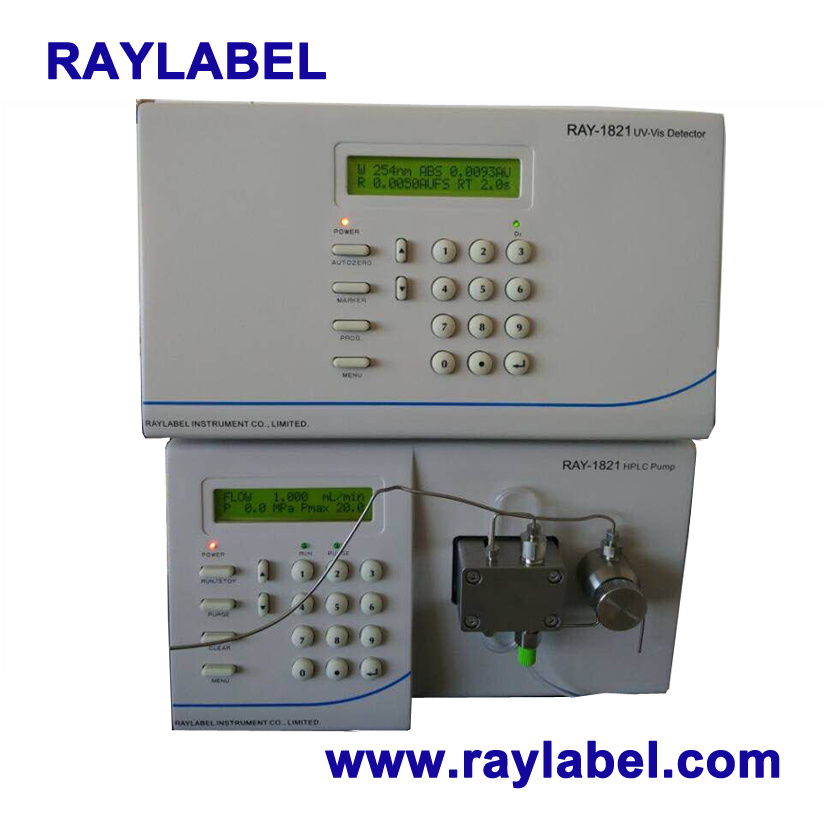

RAY-1821 HPLC System
RAY-1821 HPLC System is updated from RAY-230 HPLC System. It is more higher and more reliable quality product.
Specifications:
RAY-1821 high-pressure pump: 2 PCS
RAY-1821 UV/VIS detector: 1 piece
Rheodyne 7725I high-pressure 6-port injector: 1 piece
SinoChrom ODS-BP 5 μ M ID4.6 x 200mm column: 1 piece
EC2006 single channel chromatographic data-processing workstation: 1 unit
Gradient mixer: 1 piece
RAY-1821 High Pressure Pump
Flow range: 0.001-9.999mL/min, with 0.001mL/min increment
Flow accuracy: ≤ ± 0.3% (1.000mL/min, 8.5MPa, water, ambient temperature);
Flow stability: RSD≤ 0.1% (1.000mL/min, 8.5MPa, water, ambient temperature);
Max pressure: 40MPa (0.001-4.999mL/min); 20MPa (5.000-9.999mL/min);
Pressure precision: The displayed pressure error is less than ± 0.3%;
Pressure pulsation: L≤ 1.0%;
Line voltage: 220V ± 22V, 50Hz ± 0.5Hz
Power consumption: 180W
Dimension: 420mm x 280mm x 175mm
Weight: 20kg
RAY-1821 UV/Vis Detector
Wavelength range: 190-700nm
Light source: Deuterium lamp
Optical bandwidth: 6nm
Wavelength accuracy: ± 0.5nm;
Wavelength repeatability: ± 0.1nm;
Rise Time: 0.0-4.9s;
Baseline noise: ≤ ± 1 x 10-5 AU (empty cell, 254nm, 1.0s);
Baseline drift: ≤ 1 x 10-4AU / h (empty cell, 254nm, time: 60min)
Analytical flow cell: Optical path length 9mm; Volume 10 μ L
Spectrum scan: Avaliable
Wavelengh programmable time: Avaliable
Power requirements: 110V/220V, 50Hz /60Hz
Power consumption: 180W
Dimension: 420mm x 300mm x 175mm
Weight: 8kg
EC2006 Chromatography Data-processing Workstation
Raylabel Ltd., founded in 2005.
We are a professional manufactures laboratory equipments, medical apparatus and school furniture which have a very powerful R&D team and now becoming the professional Lab equipments total solution provider in this field. Our company has obtained ISO9001: 2000 and ISO13485: 2003 certificate of quality management system registration approval. Raylabel products show extremely long life span and stability in the function.
All the sale engineers from Raylabel Ltd., have strong professional experience. Some of them have been more than 15 years. Our company operates its business with the management philosophy of "customer first, service forever". We are proud of the supporting with our perfect quality of products and timely service systems. And we sell our products to all parts of the country and overseas.
Based on the global instrument market awareness and marketing strategies, Raylabel products are increasingly becoming excellent OEM supplier and partner, We will based in China to provide more advanced and high quality products and better service.
Our goal is to be an international lab equipments and school furniture supplier worthy of trust, and we are dedicated to benefiting our customers by minimizing their cost with reasonable prices and maximizing their profits with trouble free products.
Choose "Raylabel", Choose a Most Valuable Business Partner!
