Product Specifications
| Prod Model: |
TZJD-1825S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Color: |
White/Red/Blue/Yellow, as Your Demands |
| Working Area: |
1800mm*2500mm*230mm |
| Machine Structure: |
Cast Suare Tube Welding |
| Drive Motor: |
Leadshine Stepper/Japan Servo |
| Software: |
Type3/Artcam/Ucancam/Caxa/Proe, etc |
| Controller: |
Ncstudio Card/DSP Handle |
| Interface: |
PCI, USB |
| Working Voltage: |
110V/50Hz, 110V/60Hz, 220V/50Hz, 220V/60Hz |
| Spindle Power: |
1.5kw/2.2kw/3kw/4.5kw |
| Spindle Speed: |
6000-24000rpm/Min |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
BV |
| Spindle Number: |
Six-Spindle |
Product Description

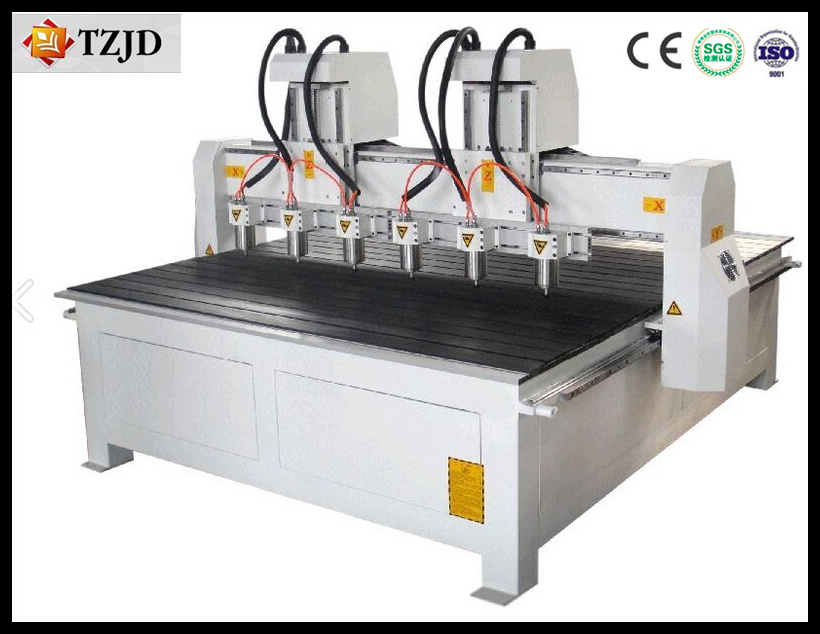

High performance Wood Drilling CNC Router machinery
1. Cast heavy-thickness square tube welding structure, solid without distortion.
2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis, high-speed with best rigidity.
3. Taiwan HIWIN Square orbits. High-efficiency & Long-time life.
4. Water-cooling spindle, can be working for a long term.
5. Brolen-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Water-cooling Spindle & Air-cooling Spindle, fasting-speed & working-efficiency.
8. U flash interface.
9. Software compatibility: Types/Artcam/astmate/Wentai & these CAD/CAM designing software.
10. Water-cooling system, mainly improve the tools working-life. Low noise & lowest maintenance.
11. Double motors for Y axis, confirm the working under stable.
12. Tool sensor system, save extra time, improve working-efficiency.
13. Special dustproof device, confirm the working environment cleanly.
Applicable materials:
Wooden industry: Harden wooden relievo engraving, classical furniture and wooden crafts\gift box\jewel case engraving.
Advertising industry:
Plate & mould engraving; Atchitects' models, badge, display board, organization's symbol, door plate, process decoration, furniture decoration. Metal industry: Steel, copper, aluminum, stainless steel, iron, etc.
Description |
Parameter |
TZJD-1825S |
Working Area (X*Y*Zmm) |
1800mm*2500mm*230mm |
Max Engraving Speed |
10000mm/min |
Frame |
Cast Square tube welding |
XYZ travelling positioning accuracy |
±0.03/300mm |
XYZ repositioning accuracy |
±0.01mm |
Spindle power(KW) |
1.5 KW/2.2KW/3KW/4.5KW/5.5KW *6 |
Max. Power Consumption(Without spindle) |
1.2KW |
Spindle Speed |
6000-24000rpm |
Resolution |
0.005mm |
Repeatability |
0.01mm |
Voltage |
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
Drive motor |
Stepper(option:Servo motor) |
Working table |
T-Slot with PVC board |
Working Dictate |
G Code*.u00*.mmg*.plt |
Operating system |
Nc-studio/DSP/Syntec/LNC |
Different diameters blade |
3.175, 6mm, 12.7mm, 2mm,1mm, etc. |
Software environment |
Windows98/2000/xp/7 |
Interface |
USB |
Flash memory |
128M(U Disk) |
Software Compatability |
Type3,,Ucancam,Artcam, Wentai Software) |
Running Environemt |
Temperature: 0ºC~45ºC |
Relative humidity: 30%~75% |
Machine available(option) |
Dust collector system, spindle cover,
Japan Panasonic Servo motor,
vacuum absorption table & vacuum pump system,
Auto-oiling system, Tool-sensor, |
