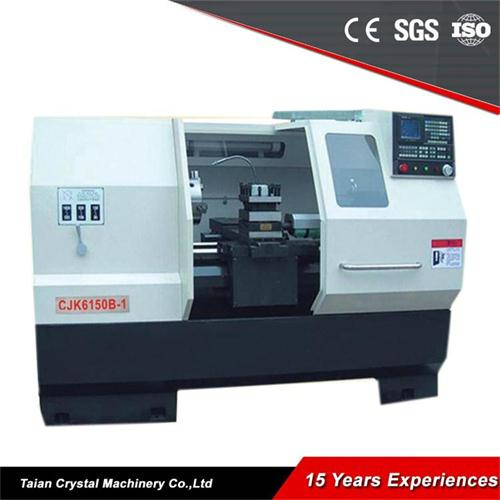

High Precision Automatic CNC Lathe Machine Tools (CJK6150B-1)

Product Specifications

Prod Model:	CJK6150B-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cast Iron
Place Of Origin:	China
Processing Type:	Metal
X,Z Motor Type:	Servo Motor
Power Supply:	Three Phase 380V/50Hz
Warranty:	1 Year
Type:	Horizontal Lathe
Automatic Grade:	Automatic
Precision:	High Precision
Power Source:	Electric
Setting Mode:	Floor-type
Controlling Mode:	CNC
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe

Product Description

CJK6150B-1 CNC LATHE MACHINE



Product Description

 A. Main features

1. after the lead rail of the machine is treated by super audio quenching and
finish grinding and plastic coating, it is of good rigidity and stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower
noise and high standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface.
The extra size diameter of the spindle bore isφ82mm while the diameter of chuck  is φ250mm.

B. Standard Configuration and Specifications
1. GSK-928TDL

2. Three-jaw Chuck

3. 4-Station Electric Turret

4. Manual Tailstock

5. Automatic Lubrication System; Cooling System; Lighting System


ITEMS	Specifications
Max. swim over bed	Φ500mm
Max. swim over carriage	Φ280mm
Max. length of work piece	1000mm
Width of the machine	390mm
Size of the three-jaw chuck	250mm
Range of spindle speed	20-100,100-550,400-1600rpm
Spindle bore	Φ82mm
Taper of spindle bore	1:20/ Φ 90
Max. size of tool post	25×25mm
Stations of tool carrier	4/6/8/or gang-type tool carrier
Min. setting unit of motor	(Z) long  0.001mm,(X) cross  0.001mm
Moving speed of post	(Z) long   8m/min,(X) cross  4m/min
Taper of tailstock quill	MT5
Max. range of tailstock quill	150mm
Motor power	7.5KW
Packing size(length×width×height)	2400 mm×1400 mm×1740mm
Net weight	2600/2700kg


C. Instructions of other devices


Brands of standard configuration of CNC	GSK and KND
Structure style of spindle	Three gear by one handle, step-less speed regulation
Protective cover and door	metal plate cover and double protective door
Position of CNC system	on the right side, right-left move
lighting system	standard T8 fluorescent lamp
Cooling system	water cooling
Lubrication system	automatic lubrication controlled by microcomputer
Brands of motor-driven tool carrier	Hongda and Sanhe
Type of cabinet base	separated type


D. Peculiar setup


Optional brands of CNC systems	SIEMENS,FANUC
Optional types of the tool post	horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic Bar feeding(Customized programs alone)
