Hangzhou Softel Optic Co., Ltd. >> High-Precision Gpon Optical Power Meter

High-Precision Gpon Optical Power Meter

Name: High-Precision Gpon Optical Power Meter
Brand: china-manufacturer-directory.com
SKU: 688507612
Availability: InStock
Rating: 4.3 (135 reviews)

Supplier:	Hangzhou Softel Optic Co., Ltd.
Price:	US $ 100/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAT

Product Specifications

Prod Model:	SFT3211
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Optic Power Meter
Application:	Telecom, CATV, Tes Lab
Wavelength(Nm):	800~1700
Detector Type:	in Gaas
Measurement Range(dBm):	-70~+10dBm or -50~+30dBm Optional
Optical Connector:	FC(Interchangeable Sc,St) / as Well as 2.5mm Unive
Power Supply:	Alkaline Battery(3 AA 1.5V Batteries); AC Adaptor(
Relative Humidity:	0 to 95% (Non-Condensing)
Dimension:	190X100X50mm
Weight:	370g
Type:	Power Meter
Display:	Indicator
Electric Equipment:	Single-phase
Theory:	Induction Meter
Installation:	General Installation Meter
Usage:	Maximum Demand Meter
Measured Signal:	Continuous Wave
Power Meter Connection:	Feed-through Type

Product Description

Summary

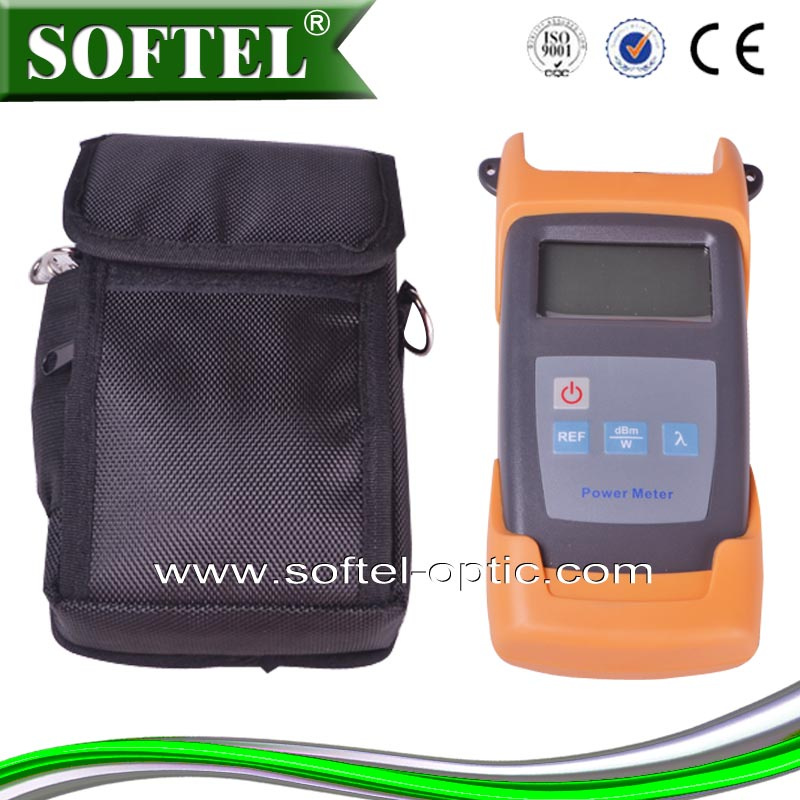

SFT3211 optical power meter
Is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power
Measurements as well as for relative loss measurements in optic fiber networks.
An Ø 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability.
It features ingenious appearance, wide range of power measurement, high accuracy, user self-calibration
Function and reference power level storage.

Features
1. Wide dynamic measurement range (up to 80dB)
2. Reference power level storage(Ref Setting)
3. User self-calibration function
4. Comfortable LCD display and backlight LCD display supports
Night operation.
5. Power measurements in dBm or mw and insertion loss in dB
6.10 minutes Auto-off function can be activated or deactivated.
7. AA alkaline batteries can last more than 140 hours, AC adaptor also available
8. Low battery indication

Applications
1. Telecom Maintenance
2. CATV Maintenance
3. Fiber Optic lab testing
4. Other Fiber Optic Measurements

MODEL	SFT3211A	SFT3211C
Wavelength(nm)	800~1700nm
Detector Type	InGaAs
Measurement Range (dBm)	-70~+10	-50~+30
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01
Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time	140 h with 1.5V Battery(3pcs)
Operating Temperature(°C)	-10 ~ +60
Storage Temperature(°C)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	190X100X50
Weight(g)	370

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
