Product Specifications
| Prod Model: |
S20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scanning Mode: |
High Speed Lines |
| Scan Angle: |
90(40~150) |
| Scan Area: |
Kiln Length |
| Temperature Range: |
50~600centigrade |
| Temperature Resolution: |
<1 |
| Scan Frequency: |
20Hz |
| Scan Point: |
1024points/Line |
| Cycle: |
Kiln 1 Rotation |
| Work Temperature: |
-30~60centigrade |
| Mtbf: |
40,000h |
| Application: |
Special Equipment |
| Usage: |
Temperature |
| Certification: |
CCC |
| Type: |
Infrared Linescanner |
| Installation Mode: |
Non Contact |
Product Description
China leading manufacturer of Infrared Kiln Shell Scanning System which widely used in cement industry and relevant industries (e.g. Sponge Iron Ore Pellet) for rotary kiln shell temperature monitoring by providing accurate real-time thermal imaging and online analysis.
Featured
Higher scan speed for new faster, larger kilns
Higher resolution for refractory detail
High sensitivity to identify smaller temperature changes
Wide dynamic range from light-up to shut-down
120º field of view
Fibre optic communication
Fully compatible with existing systems
Flexible installation
Proven reliability
Full inbuilt diagnostics
Long term system accurancy
Introduction

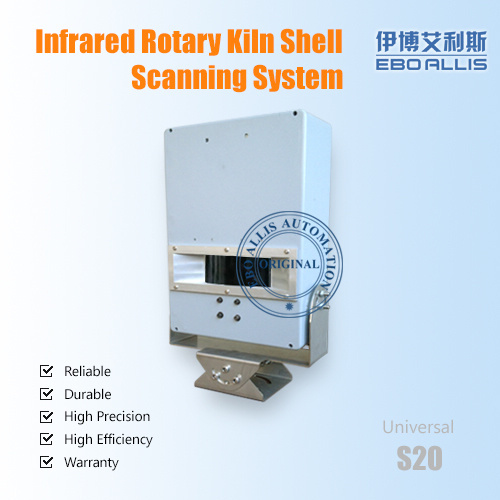

S20 line scanner is our economic optic-mechanical temperature scanner (imported probe), which is high-performance kiln shell temperature monitoring system with real-time analysis. The system can accurately monitor the kiln surface temperature and real-time imaging analysis of rotary kilns. Thermal Imaging System make it easy to analyze and understand the data, to avoid costly damage and unscheduled downtime.
Parameter
Scan mode: high speed line scanning
Scan frequency: 20lines/sec
Temperature accuracy: ±2 or(1%×T)ºC
Scan points: 1024points/line
Blackbody calibration: double blackbody
Line response time: 12.2ms
Field of view: 90°
Temperature range: 50ºC~600ºC
Thermal sensitivity: 1ºC at about 100ºC, 0.1ºC at about 300ºC
Voltage: 110-220VAC
Output signal: 4-20mA
Ambient Temperature: -25ºC~+55ºC
Temperature resolution: <1ºC
Transmission media: optic cable
Project Show
