Shanghai Davey Machinery Co., Ltd. >> High Pressure 200-250bar CNG Compressor

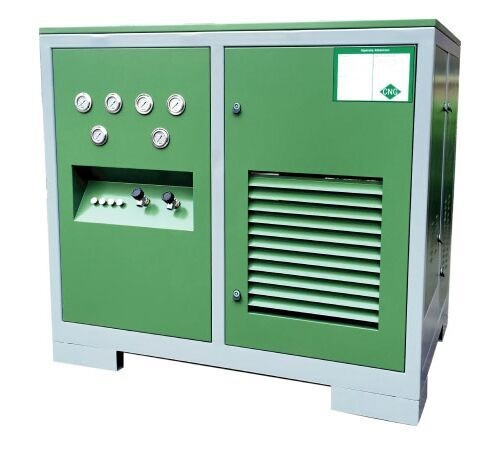

High Pressure 200-250bar CNG Compressor

Name: High Pressure 200-250bar CNG Compressor
Brand: china-manufacturer-directory.com
SKU: 699883632
Availability: InStock
Rating: 4.8 (75 reviews)

Supplier:	Shanghai Davey Machinery Co., Ltd.
Price:	US $ 16900-17900/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DMC50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Pressure CNG Compressor:	50Hz or 60Hz Option
Capacity:	50m³/H
Motor Power:	18.5kw
Pressure:	200-250bar
Type:	Reciprocating
Configuration:	Portable
Power Source:	AC Power
Lubrication Style:	Lubricated
Mute:	Not Mute
Application:	Low Back Pressure Type

Product Description

Simple installation and operation, low service cost .anti-explosive designed of this compressor make it running in safety.
Separate electric controller equipped.
It is an ideal unit for filling 2-4 vehicles.
CNG refill station (home use)

CNG compressor for vehicle

DMC3/DMC5/DMC10/DMC50/DMC20/DMC40

Code	DMC40	DMC50
Flow rate	40 Nm3/h 25 cfm	50 Nm3/h 30 cfm
Filling time (60L CNG tank)	18 min --(200bar 3000psi) 21 min --(250bar 3600psi)	15 min --(200bar 3000psi) 18 min --(250bar 3600psi)
Working pressure	200bar /3000psi or 250bar /3600psi	200bar /3000psi or 250bar /3600psi
Inlet pressure	Less than 0.3bar 5psi	Less than 0.3bar 5psi
Engine power	EX 15kw/20hp 50/60hz three phase	EX 18.5kw/25hp 50/60hz three phase
Oil separator / oil filter	2/1	2/1
Safety valve/ Alarm sensor	4 in each stage/ option	4 in each stage/ option
Starter/ Time meter	Manual/1	Manual/1
Switch/ Emergency stop	Auto stop/ 1	Auto stop/1
Control	PLC	PLC
Filling hose connect	2-4	2-4
Dimensions (H-W-D)	1900-1700-1000 mm	1900-1700-1000 mm
Weight	800 kg	850 kg
Noise level	80 db(A)	80 db(A)

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
