Product Specifications
| Prod Model: |
GCPR-I15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Type: |
Indoor, Small Size |
| Technic Advantage: |
Alc&Agc |
| Certificate: |
CE RoHS ISO |
| Type: |
Wireless Repeater |
| Transmission Medium: |
CAT-5 |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description

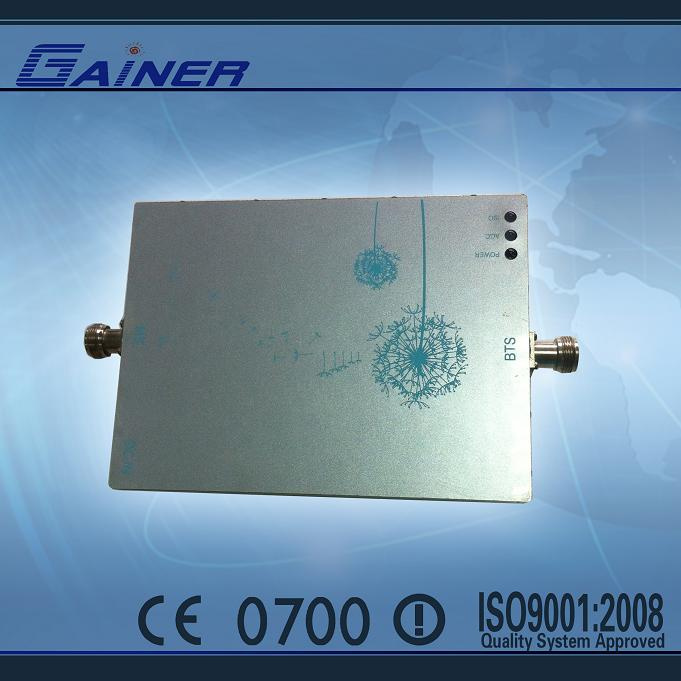

High Quality 15dBm Iden Intelligent cellular repeater/cell phone signal booster/cell phone signal booster home/
If you do need a mobile signal repeater, please contact us.
And tell me your frequency and the coverage area demands, I will recommend the most suitable amplifier to help you solve your signal issues.
Are you are faced problem with your mobile network?
Hanging out of Windows to make a call?
Getting cold in the Office car park to make a quick call?
Suffering with frustrating dropped calls?
Really slow mobile Internet data speed?
New contract poor reception and the Mobile network will do nothing to help?
Tried everything including rubbish antenna stickers from the local market!
We are here to help provide you with a wide range of products that will boost your mobile phone reception to a usable level.
Product Feature
Features:
1. With Oscillation Detective Indicate Function;
2.With Uplink/Downlink auto gain synchronization, can adjust the UL/DL gain;
3. High gain, easy installation and operation.
4. Use ALC and AGC technology, adjust extent automatically.
5. LED Light Working & Signal Condition Indicators.
6. Dependability stand by GB6993-86 standard.
7. Compatibility of electromagnetism according with ETS300 609-4.
| Model Number | GCPR-I15 |
| Frequency | UL: 1710-1785MHz DL: 1805-1880MHz |
| Gain | ≥ 55dB |
| Automatic Level Control | ≥ 20dB |
| Noise Figure | ≤ 5dB |
| Gain Flatness | ≤ 8dB (p-p), |
| Automatic Gain Control | 30dB in step of 1dB ( Auto) |
| Output Power(Max) | UL ≥ 10dBm DL ≥ 15dBm |
| Input Power Range | ≤ -25 dBm |
| IM3 | ≤ -45dBc |
| Spurious Emission | 9KHz~150KHz | ≤ -36dBm @ 1KHz |
| 150KHz~30MHz | ≤ -36dBm @ 10KHz |
| 30MHz~1GHz (out of band) | ≤ -36dBm @ 100KHz |
| 1GHz~6.7GHz | ≤ -36dBm @ 1MHz |
| Group Delay | UL ≤ 1μs |
| Operating voltage | AC 220V |
