High Quality 3-Phase Scd72-Cos Power Factor Meter

Name: High Quality 3-Phase Scd72-Cos Power Factor Meter
Brand: china-manufacturer-directory.com
SKU: 695337042
Availability: InStock
Rating: 4.4 (25 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 6.21/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SCD72-COS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	72*72
Display:	Indicator
Installation:	General Installation Meter
Usage:	Multi-rate Watt-hour Meters
Electric Equipment:	Three-phase Four-wire
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter

Product Description

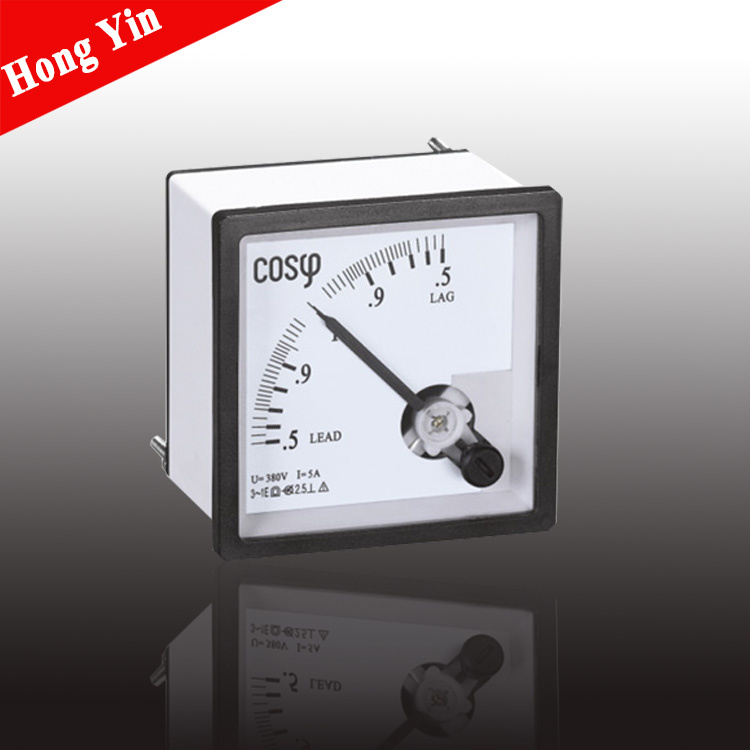

High Quality 3-Phase SCD72-COS Power Factor Meter

1-Function:

1.1 The SCD48, SCD72, SCD96 series square instruments are with electromagnetic system and repellency structure. The instrument is constituted by measuring mechanism and indicating device. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.

1.2 SCD72, SCD96 Series DC ammeter, voltmeter, frequency meter, active/reactive power meter, power factor meter are rectifier square meters. They are composed of the two parts magneto-electric mechanism. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.

2-Technical parameters:

Product name	specification	measuring range	accurancy
DC ammeter	SCD96-A	50uA-20A (input directly)	1.5
	SCD72-A	20A-10kA*/60mV/75mV	1.5
	SCD48-A	(EXTERNAL DEVICE )	2.5
DC voltmeter	SCD96-V	5V-750V (input directly)	1.5
	SCD72-V	450V-450kV/1mA/5mA (EXTERNAL DEVICE )	1.5
	SCD48-V		2.5
ACammeter	SCD96-A	500mA-100A (input directly)	less than 30A 1.5
	SCD72-A	5A-10kA*/5a (EXTERNAL DEVICE )	30A andmore 2.5
	SCD48-A	500mA-30A (input directly)	2.5
AC voltmeter	SCD96-V	15V-600V	1.5
	SCD72-V	380V-450kV*/100v	1.5
	SCD48-V		2.5
Frequency meter	SCD96-Hz	45-55hz,45-65hz,55-65hz	1.0
	SCD72-Hz	rated voltage:100V,220V,380V	1.0
Active/reactive power meter	SCD72-W/var	100V,220V,380-380kV/100V	2.5
	SCD96-W/var	5A,5A-10kA /5A(EXTERNAL DEVICE)	2.5
3-phase power factor	SCD72-COS	0.5C-1-1.5L
meter	SCD96-COS	100V 5A,380V 5A

3 -FAQ

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gotten through CE, RoHs standard

Yueqing Hongyin Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our compnay are the meters, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company was established in 2000, and we have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing Hongyin Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to America, France, Australia, Italy and 20 other countries and regions.

Yueqing Hongyin Electric Co., Ltd has always focused on research, development and innovation, In 2010-2013 years. We attained CE, RoHS, UL certification.

Our company supplies different kinds of products. High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
