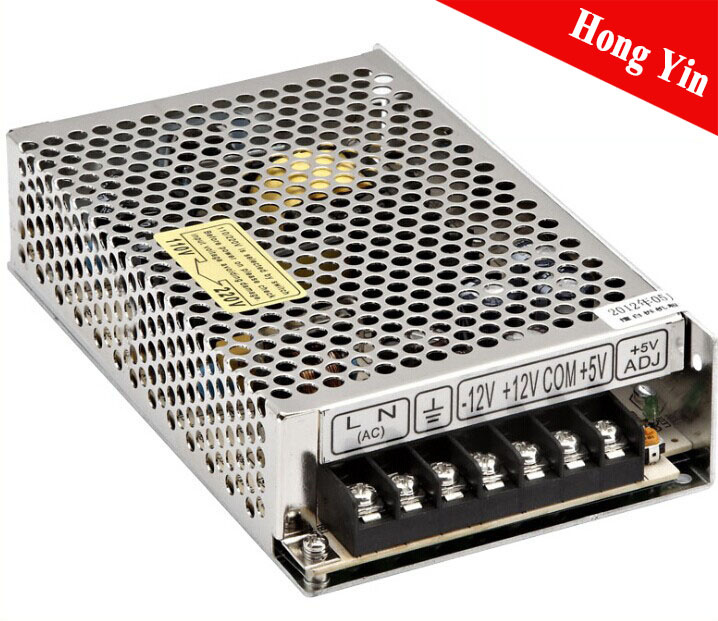

T-30W Triple Output Switching Power Supply

Name: T-30W Triple Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 697052732
Availability: InStock
Rating: 4.5 (98 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 6.2/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	T-30W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Triple
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Hongyin

Product Description

T-30W Triple output switching power supply 12vdc 1a 0.5a amp power supply

1-Specification

Model	T-30A			T-30B
Model	CH1	CH2	CH2	CH1	CH2	CH2
DC output voltage	5V	12V	-5V	5V	12V	-24V
Output voltage range(Note:2)	±2%	+2, -6%	+2, -10%	±2%	+2, -10%	±6%
Rated output current	3A	1A	0.5A	3A	1A	0.5A
Output current range	0.5-3A	0.1-1A	0.1-0.5A	0.5-3A	0.1-1A	0.1-0.5A
Wave and noise(Note:3)	50mVp-p	100mVp-p	50mVp-p	50mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±0.5%	±5%	±5%	±0.5%	±5%	±5%
DC output power	30W			33W
Efficiency	70%			72%
Adjustable range for DC voltage	CH1; +10, -5%			CH1; +10, -5%
Input current	0.8A/115V 0.45A/230V
AC inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	200ms,50ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	129×98×38mm
Weight	0.4Kgs
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class A

2-Function and Features:

1. Low price and high reliable.

2. 105 `C output capacitor

3. AC input power suitable for the world

4. High efficiency and how operation temperature.

5. Soft-start current can reduce the AC input impact effecticly.

6. With short-circuit and overload protection.

7. Compact size, light weight.

8. 100% full-load buming test.

9. installed with EMI filter, minmum wave.

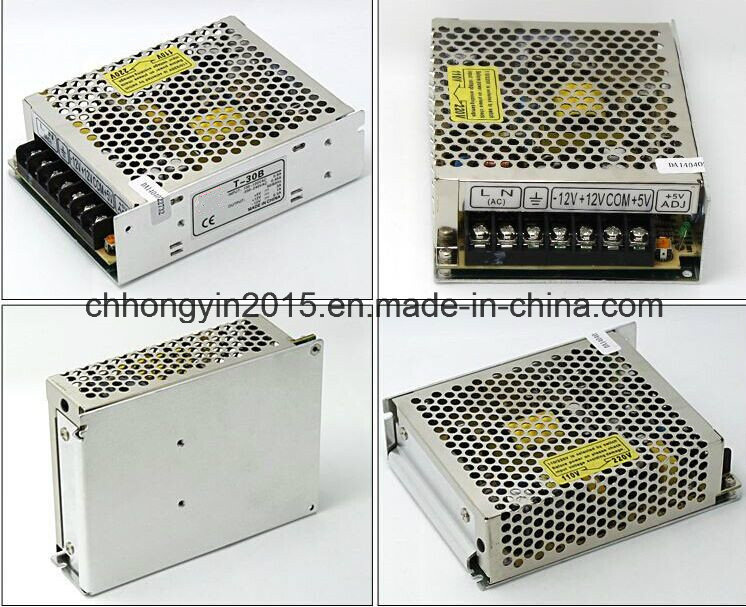

3-Photo:

4-FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gotten through CE, RoHs standard

5-Our company delivery and shippments:

6- Certification

CE and RoHS

Yueqing Hongyin Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our compnay are the meters, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company was established in 2000, and we have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing Hongyin Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to America, France, Australia, Italy and 20 other countries and regions.

Yueqing Hongyin Electric Co., Ltd has always focused on research, development and innovation, In 2010-2013 years. We attained CE, RoHS, UL certification.

Our company supplies different kinds of products. High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
