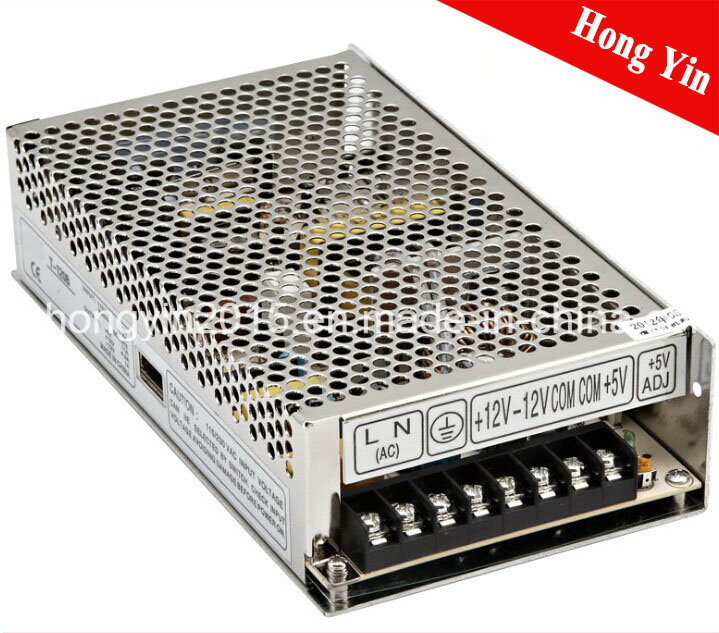

Q-120B Quad output Switching Power Supply
1-Specification
| Model Specification | Q-120 B | Q-120 C | Q-120 D |
| DC Output Voltage | 5V | 12V | `-15V | `-12V | 5V | 15V | `-5V | `-15V | 5V | 12V | 24V | `-12V |
| Iutput Voltage Error | ± 2% | ± 6% | ± 6% | ± 6% | ± 2% | ± 10,-5% | ± 6% | ± 10,-5% | ± 2% | ± 6% | ± 6% | ± 6% |
| Rated Output Current | 11A | 4A | 1A | 1A | 12A | 3.5A | 1A | 3.5A | 12A | 4A | 2A | 1A |
| Output Current Range | 2-11A | 0.5-4A | 0.2-1A | 0.2-1A | 0.2-12A | 0.5-3.5A | 0.2-1A | 0.5-3.5A | 2-12A | 0.2-4A | 0.2-2A | 0.2-1A |
| Tripple and Noise | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 80mVp-p | 120mVp-p | 80mVp-p | 120mVp-p |
| Iniet Stability | ± 0.5% | ± 1% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% | ± 1% | ± 0.5% | ± 1% | ± 1% | ± 1% |
| Tolerance Voltage | ± 0.5% | ± 5% | ± 5% | ± 5% | ± 0.5% | ± 6% | ± 5% | ± 8% | ± 0.5% | ± 5% | ± 5% | ± 5% |
| DC Output Power | 120W | 122.5W | 124W |
| Efficiency | 77% | 76% | 80% |
| Adjustable Range for DC Voltage | `+10, -5% | ± 10, -5% | ± 10, -5% |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
| Input Current | 2.5A/115V 1.25A/230V |
| AC Inrush Current | Cold-Start Current: 35A |
| Leakage Current | <3.5mA/240VAC |
| Overload Protection | 105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery |
| Over Voltage Protection | ...... |
| High Temperature Protection | ...... |
| Temperature Coefficient | ± 0.03% /°C (0~50°C) |
| Start, Rise, Hold time | 200ms, 50ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
| Working Temperature and Humidity | `-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH |
| Storage Temperature and Humidity | `20°C~+85°C, 10%~95%RH |
| Overall Dimension | 199*110*50 mm |
| Weight | 0.88 kgs |
| Safety Standards | Meet UL 1012 requirement (Not apply for the mark) |
| EMC Standards | Meet FCC Part 15J Conduction class B |
2-Function and Features:
1. Low price and high reliable.
2. 105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8. 100% full-load buming test.
9. installed with EMI filter, minmum wave.
