1000W Single Output SMPS Switching Power Supply

Name: 1000W Single Output SMPS Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 700713252
Availability: InStock
Rating: 5 (29 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

1000W Single Output SMPS Switching Power Supply

1-Specification

Model Performance	SCN-1000-12	SCN-1000-13.5	SCN-1000-15	SCN-1000-24	SCN-1000-27	SCN-1000-48
DC Output Volta	12V	13.5V	15V	24V	27V	48V
Output voltage tolerance(Note 2)	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	44A	40A	25A	22A	12.5A
Output current range	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Ripple and noise(Note 3)	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note 5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W	600W	600W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
DC voltage adjustable range	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
Input voltage range	88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC
Input current	7A/115V 3.5A/230V
Surge Current	0.95/100~240VAC
Leakage Current	18A/115V 36A/230V
Overload protection	<3.5mA/240VAC
over-voltage protection	105%~135% type:FOLDBACK cut off output reset:Automatic recovery
High temperature protection	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	31~36.5V	57.6~67.2V
temperature coefficient	RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output
Start-up,upper,rentention time	±0.03%°C(0~50°C)
shock resistance	1.5s,50ms,20ms
Withstand	10~500Hz,2G 10min./1circle,time:60min.,axes
Insulation Resistance	Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC
work Temperature/ humidity	Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms
Storage Temperature,temperature	-10°C~+50°C,20%~90%RH
Outline dimension	-20°C~+85°C,10%~95%%RH
Weight	29113268mm shell:910
Safety standards	5Kgs
EMC Standard	UL1950,TUV EN60950
Model Performance	CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2

2-Function and Features:

1. AC input range selectable by switch
2. Protections: short circuit/ over voltage/ overload/ over temp.
3. Built-in remote ON/OFF control
4. Built-in remote sense function
5. Built-in parellel operation function
6. Can adjust from 20-100% output voltage by external control 1-5VDC
7. Forced air cooling by built-in DC fan
8. 2 years warranty
9. SCN-1000-12 ac to dc 12v power supply 1500w with parallel operation function

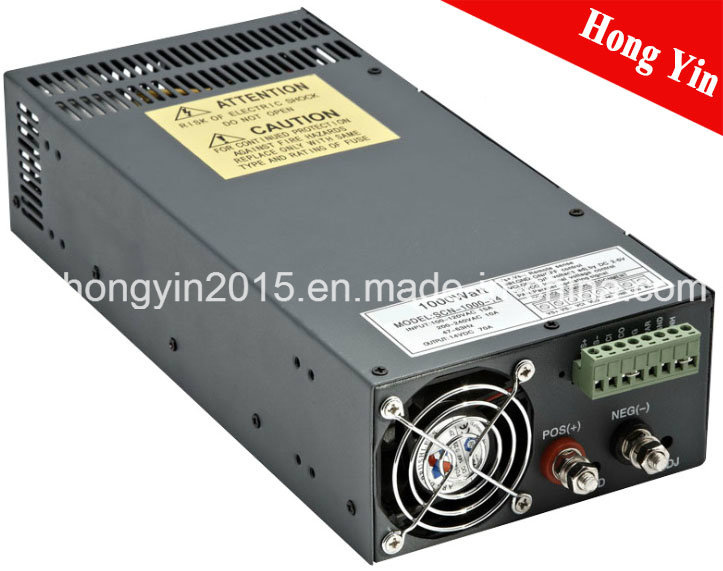

3-Photo:

4-FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gotten through CE, RoHs standard

5-Our company delivery and shippments:

6- Certification

CE RoHs

Prod Model:	scn-1000-15v
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Warranty:	2 Years
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Output Power:	1000W
Brand:	Hongyin
